Description

Price

1

NUT, SETTING (6MM)

19014-KEA-003

$3.10

2

SHROUD

19016-MKC-A01

$53.07

3

FAN, COOLING

19020-MJN-A01

$50.30

4

AIR GUIDE, L. RADIATOR

19025-MKC-A00

$75.61

5

MOTOR ASSY., L. FAN

19035-MKC-A01

$282.51

6

RADIATOR, L.

19060-MKC-A01

$603.38

7

TANK, RADIATOR RESERVE

19101-MKC-A00

$37.30

8

TUBE, RESERVE TANK

19102-MKC-A00

$21.61

9

STAY, RESERVE TANK

19107-MKC-A00

$5.82

10

CAP, RESERVE TANK

19109-KPC-640

$4.80

11

HOSE, L. FR. RADIATOR

19502-MKC-A00

$18.03

12

HOSE, L. RR. RADIATOR

19504-MKC-A00

$20.43

13

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

14

CLAMP, WATER HOSE

19507-MAL-600

$5.69

15

HOSE, AIR DRAIN

19508-MKC-A00

$4.67

16

PLUG, RADIATOR DRAIN

19509-MKC-A00

$6.38

17

CAP, MAIN STAND PIPE

50750-MB0-000

$5.90

18

BOLT, SOCKET (6X18)

90001-KWR-000

$1.49

19

BOLT, FLANGE (6X16)

90013-GHB-630

$2.23

20

BOLT, FLANGE (6MM)

90111-187-000

$5.59

21

BOLT, SPECIAL (6X15)

90114-MGE-D00

$2.05

22

SCREW, SPECIAL (5X15)

90114-MKC-A00

$2.92

23

BOLT-WASHER (6X16)

90120-KCR-003

$4.39

24

BOLT, FLANGE (5X10)

90196-MBB-003

$2.66

25

NUT, CLIP (6MM)

90201-KPR-901

$1.87

26

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

27

NUT, CLIP (5MM)

90677-KAN-961

$4.07

28

CLIP, TUBE (B10)

95002-02100

$1.90

29

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

$34.09

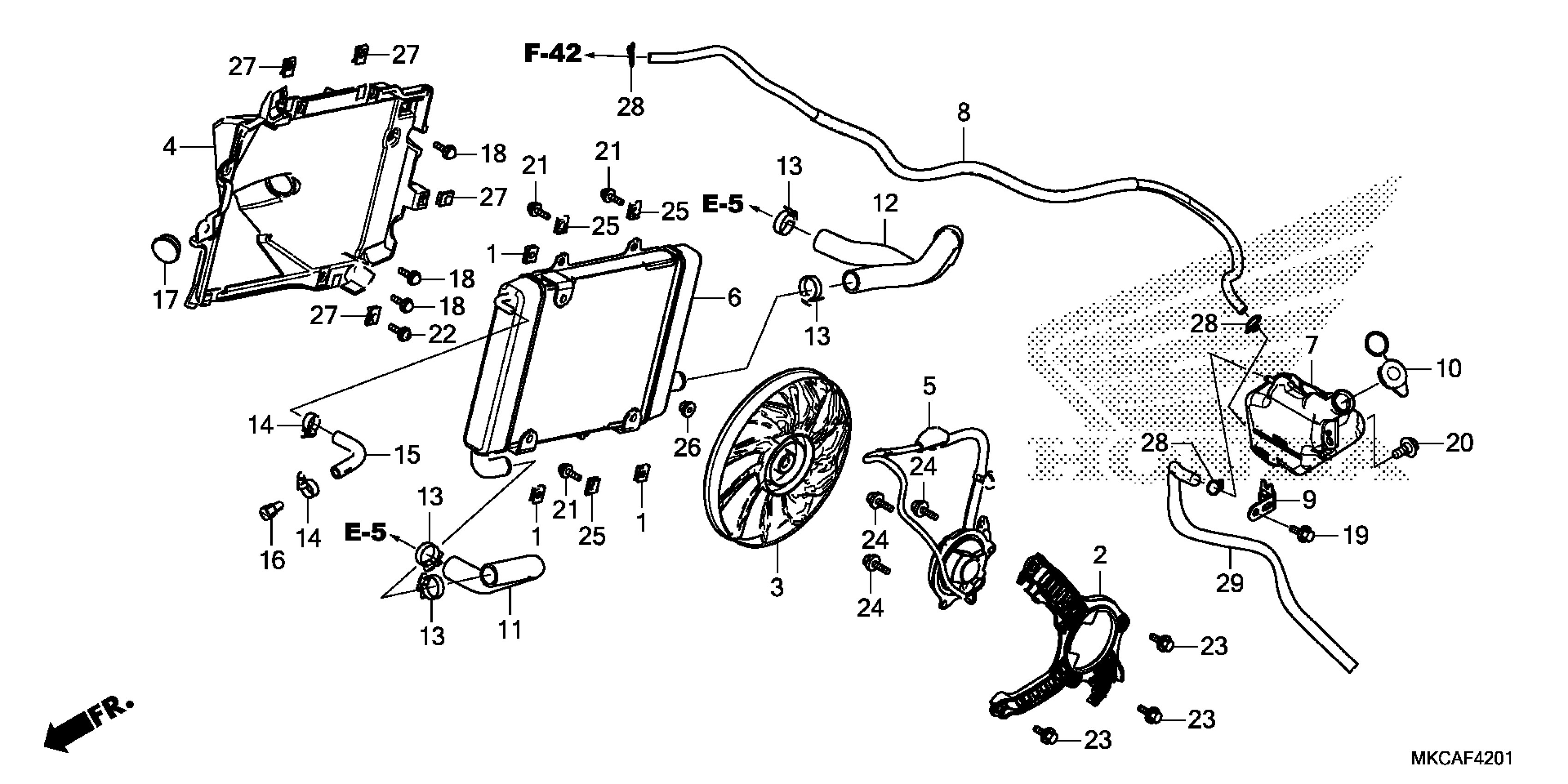

Honda GL18002AC (19) MOTORCYCLE, JPN, VIN# JH2SC790-KK100001 RADIATOR (L.) Diagram
