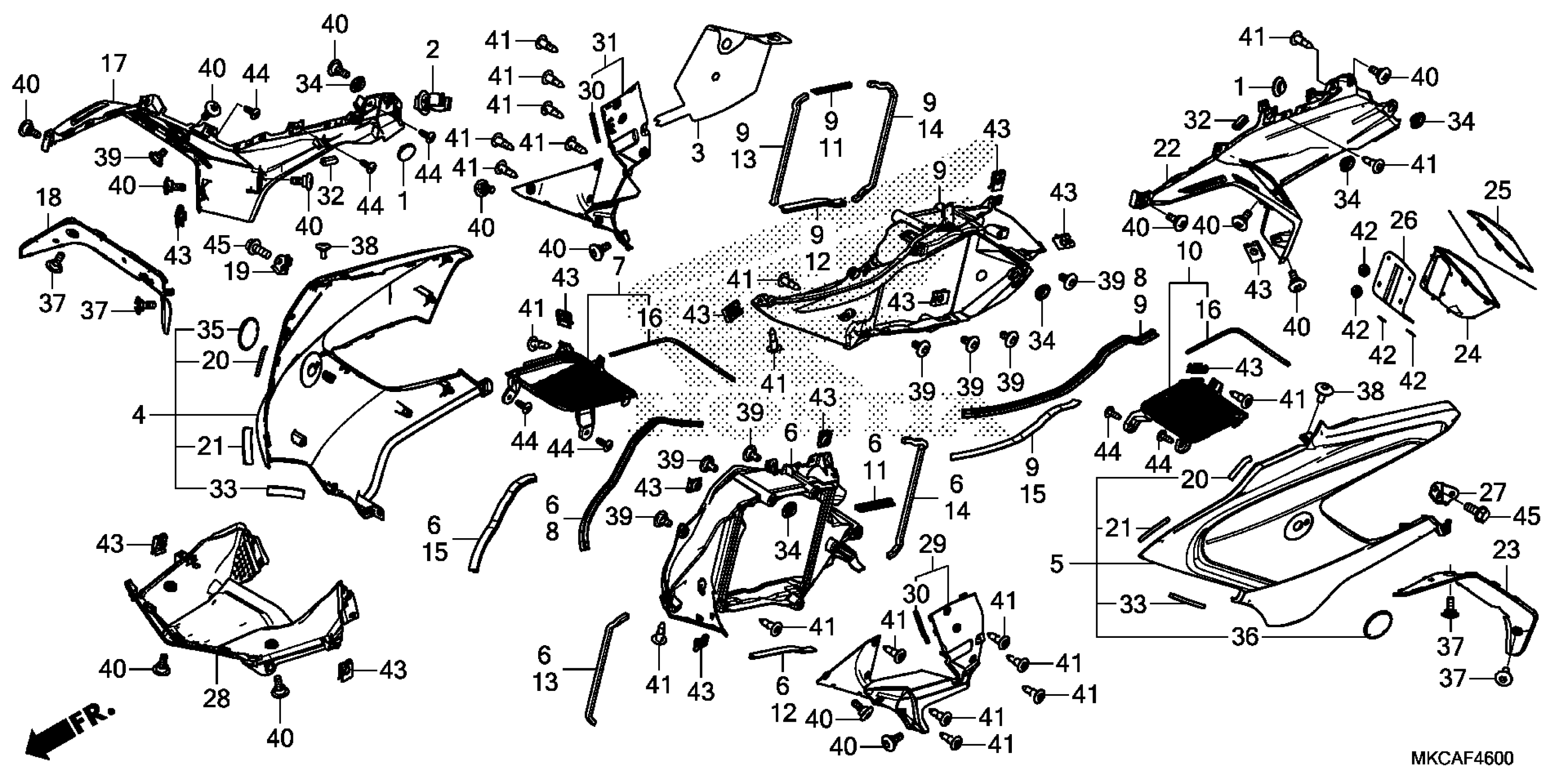

Honda GL18002AC (19) MOTORCYCLE, JPN, VIN# JH2SC790-KK100001 COWL Diagram

RUBBER, FUEL PUMP STOPPER

16712-MN5-000

$2.90

CLAMP A, FUEL HOSE

16725-PNA-003

$1.49

RUBBER, AIR GUARD

17229-MKC-A00

$50.66

COWL ASSY., R. MIDDLE (TYPE1) (WL)

64300-MKC-A50ZA

$295.98

COWL ASSY., L. MIDDLE (TYPE1) (WL)

64305-MKC-A50ZA

$277.61

GUIDE ASSY., R. AIR (OUTER)

64311-MKC-A00

$175.93

GRILL ASSY., R. RADIATOR OUTLET

64312-MKC-A00

$66.74

SEAL A, AIR GUIDE

64318-MKC-A00

$11.92

GUIDE ASSY., L. AIR (OUTER)

64321-MKC-A00

$175.93

GRILL ASSY., L. RADIATOR OUTLET

64322-MKC-A00

$66.74

SEAL C, AIR GUIDE

64323-MKC-A00

$3.85

SEAL D, AIR GUIDE

64324-MKC-A00

$5.92

SEAL, FR. RADIATOR

64328-MKC-A00

$5.25

SEAL, RR. RADIATOR

64331-MKC-A00

$6.51

SEAL B, AIR GUIDE

64332-MKC-A00

$8.03

SEAL, RADIATOR OUTLET GRILL

64333-MKC-A00

$5.12

PANEL A, R. DEFLECTOR

64335-MKC-A00

$74.90

PANEL B, R. DEFLECTOR

64336-MKC-A00

$18.05

STAY, R. DEFLECTOR

64339-MKC-A00

$5.74

SEAL, MIDDLE COWL (UPPER)

64341-MKC-A00

$2.11

SEAL, MIDDLE COWL (LOWER)

64342-MKC-A00

$3.98

PANEL A, L. DEFLECTOR

64345-MKC-A00

$84.80

PANEL B, L. DEFLECTOR

64346-MKC-A00

$18.05

COVER, L. DEFLECTOR

64347-MKC-A10

$14.48

STAY, L. DEFLECTOR

64349-MKC-A00

$5.74

COWL, FR. CENTER

64355-MKC-A00

$62.00

COWL, R. (INNER)

64365-MKC-A00

$22.48

SEAL, COWL (INNER)

64366-MKC-A00

$2.16

COWL, L. (INNER)

64375-MKC-A00

$22.48

PROTECTOR, RUBBER

77212-MFJ-D00

$1.74

SEAL, TRUNK PANEL

81112-MCA-S40

$1.49

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

BADGE, R. PRODUCT

86211-MJK-N20

$37.33

BADGE, L. PRODUCT

86212-MJK-N20

$37.33

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.90

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.67

SCREW, SPECIAL (5X11)

90114-KPH-700

$1.49

SCREW, SPECIAL (5X15)

90114-MKC-A00

$2.92

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

NUT, CLIP (5MM)

90677-KAN-961

$4.07

SCREW, TAPPING (4X12)

93903-24380

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
