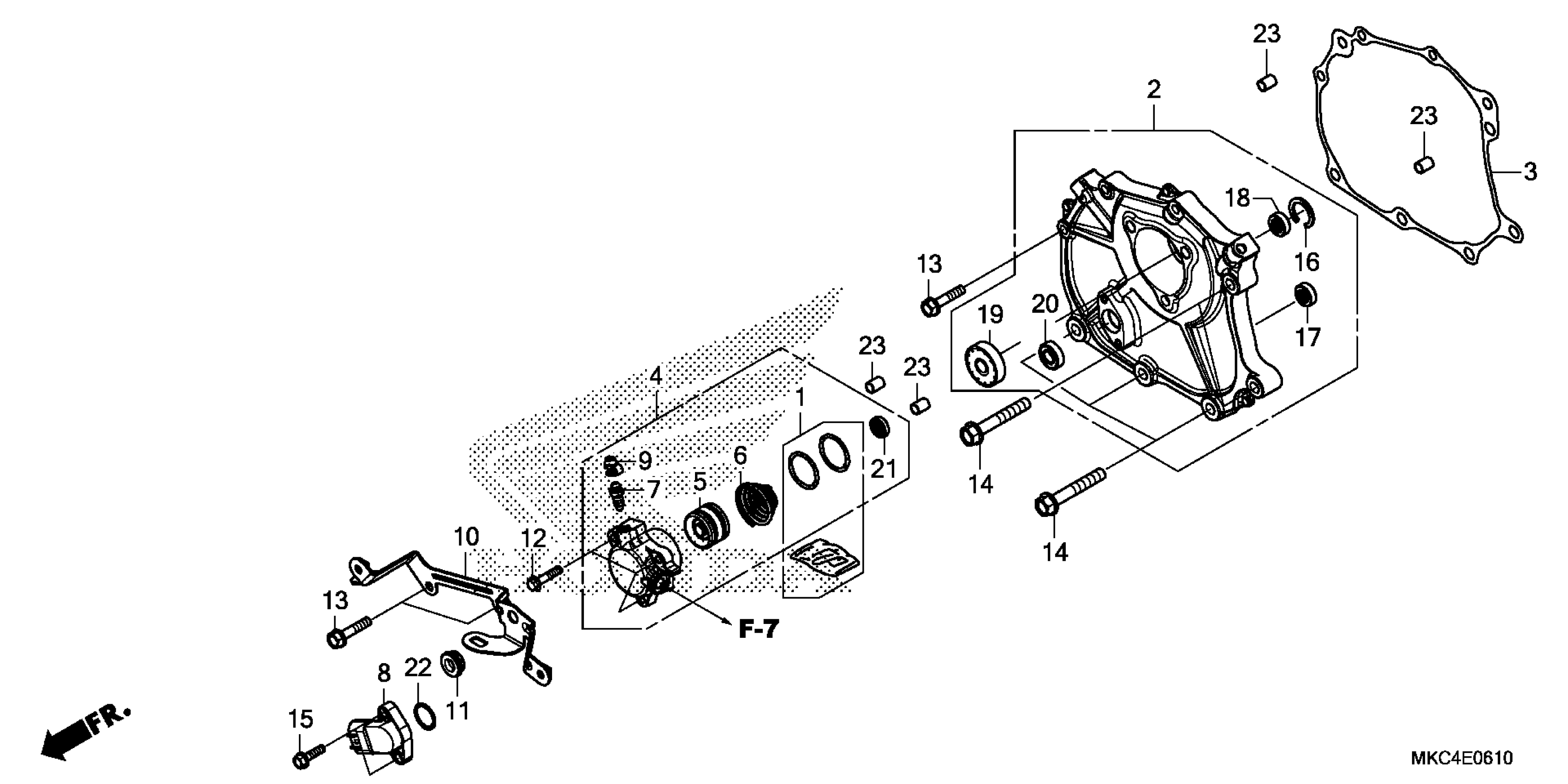

Honda GL18002AC (18) MOTORCYCLE, JPN, VIN# JH2SC790-JK000001 SHIFT COVER Diagram

O-RING SET This part replaces 04121-MKC-A20.

04121-MKC-A21

$6.07

COVER, SHIFT

11360-MKC-A20

$97.66

GASKET, SHIFT COVER

11365-MKC-A01

$14.72

CYLINDER ASSY., SLAVE

22860-MKC-A21

$185.34

PISTON, SLAVE CYLINDER

22863-MKC-A21

$25.26

SPRING, SLAVE CYLINDER

22864-MGE-003

$6.97

SCREW, BLEEDER

22866-MF2-711

$5.12

SENSOR ASSY., ANGLE (350DEGREE)

38800-MKC-A01

$140.30

CAP, BLEEDER

43353-461-771

$5.05

STAY, FR. (LOWER) (INNER)

64412-MKC-A00

$13.89

RUBBER, AIR DUCT COVER SETTING

64586-MBW-D20

$3.08

BOLT, FLANGE (6X28) (NSHF)

90017-GHB-680

$2.38

BOLT, FLANGE (6X28)

90033-MKC-A00

$2.26

BOLT, FLANGE (8X50)

90076-MKC-A00

$3.25

BOLT, FLANGE (5X20)

90097-MKC-A00

$2.11

CIRCLIP (INNER) (16)

90606-MKC-A00

$2.54

BEARING, RADIAL BALL (699ZZ)

91025-MGS-D21

$10.98

BEARING, RADIAL BALL (8X16X4)

91030-MKC-A01

$8.72

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.92

OIL SEAL (8X16X6) This part replaces 91208-689-005.

91254-792-003

$2.92

OIL SEAL (8X16X6)

91254-792-003

$2.92

OIL SEAL (8X18X5) (NISSIN)

91209-MB0-003

$4.06

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.72

PIN A, DOWEL (8X10)

94301-08100

$2.25
