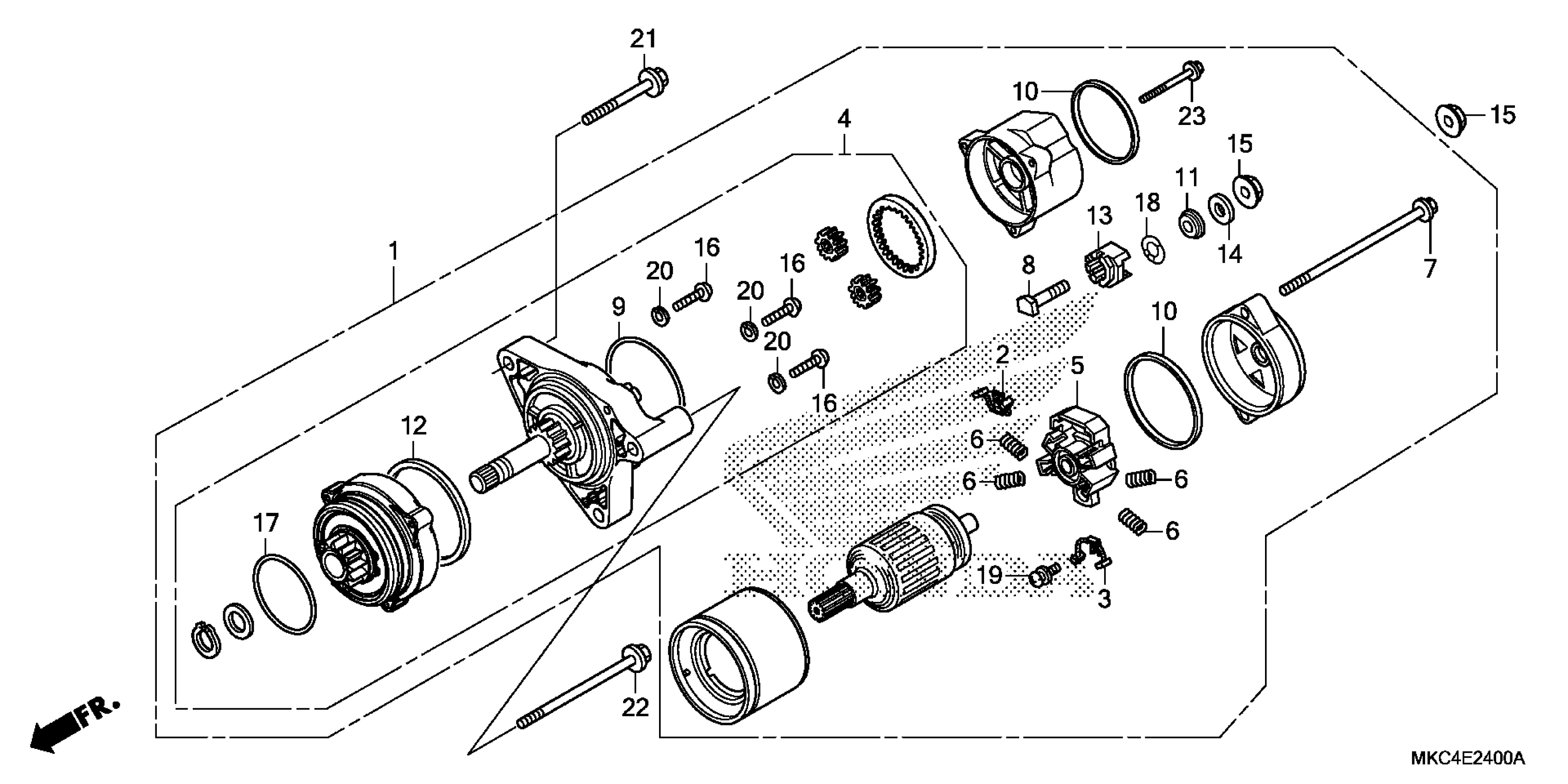

Honda GL18002AC (18) MOTORCYCLE, JPN, VIN# JH2SC790-JK000001 REVERSE MOTOR Diagram

MOTOR ASSY., REVERSE

31200-MKC-A01

$652.54

BRUSH SET A, CARBON (Honda Code 8476772)

31201-MEW-921

$7.78

BRUSH SET B, CARBON (Honda Code 8476780)

31202-MEW-921

$13.08

GEAR ASSY.

31202-MKC-A01

$376.43

HOLDER, BRUSH (Honda Code 8614117)

31203-MEW-921

$7.49

SPRING, CARBON BRUSH (Honda Code 8476798)

31204-MEW-921

$13.00

BOLT SET

31205-HM8-B61

$4.18

BOLT, TERMINAL

31206-MEW-921

$2.92

RING, SEAL

31207-179-711

$4.22

RING

31207-HP5-601

$2.15

INSULATOR (Honda Code 8476822)

31208-MEW-921

$7.66

RING

31208-MG9-004

$5.56

STOPPER, TERMINAL (Honda Code 8476830)

31209-MEW-921

$11.36

WASHER

31210-MEW-921

$1.82

NUT-WASHER (6MM)

90071-MB0-000

$1.97

BOLT (5X39)

91001-MN5-008

$3.15

O-RING (59.6X2.4)

91309-MN5-008

$8.66

O-RING (Honda Code 1292184)

91320-MB0-000

$2.43

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

BOLT, FLANGE (8X38)

95701-08038-00

$1.51

BOLT, FLANGE (8X60)

95701-08060-00

$1.49

BOLT (M5X30)

31205-MKC-A01

$2.05
