Description

Price

1

HOLDER, REVERS DRIVE GEAR

28150-MKC-A20

$80.25

2

GEAR, REVERSE IDLE (46T)

28162-MN5-000

$134.18

3

SHIFTER, REVERSE

28165-MN5-000

$134.15

4

GEAR, REVERSE SHIFT (18T)

28171-MN5-000

$89.21

5

SHAFT, REVERSE SHIFTER

28211-MKC-A20

$55.77

6

PLATE, LOST MOTION

28215-MCA-000

$4.79

7

COLLAR, LOST MOTION SPRING

28218-MCA-000

$23.03

8

COLLAR, REVERSE LEVER SPRING

28219-MKC-A20

$24.97

9

BUSH, REVERSE SPRING

28221-MN5-000

$5.66

10

SPRING, REVERSE LEVER

28224-MKC-A20

$5.28

11

SPRING, LOST MOTION

28226-MCA-000

$8.75

12

DRUM A

28241-MCA-A00

$34.89

13

ARM, SHIFT DRUM LOCK

28250-MKC-A20

$123.54

14

O-RING (11.8X2.4)

51996-SA5-800

$2.02

15

BOLT, FLANGE (6X20)

90014-MN5-000

$5.43

16

WASHER B, THRUST (30X1.7)

90409-ML4-610

$4.59

17

WASHER (6MM)

90485-VM0-000

$2.92

18

WASHER (12.2X23X1.6)

90492-MN5-000

$4.59

19

ROLLER (5X25)

90702-MN5-000

$2.90

20

BEARING, NEEDLE (12MM) (THOMPSON)

91001-147-006

$13.34

21

BEARING, NEEDLE (12X16X10)

91024-GJ5-003

$18.66

22

BEARING, NEEDLE (20X24X17)

91051-727-000

$28.76

24

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

25

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

26

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

27

BOLT, FLANGE (6X32) (Honda Code 2105856)

95701-06032-00

$1.89

28

BOLT, FLANGE (6X28)

95801-06028-00

$1.73

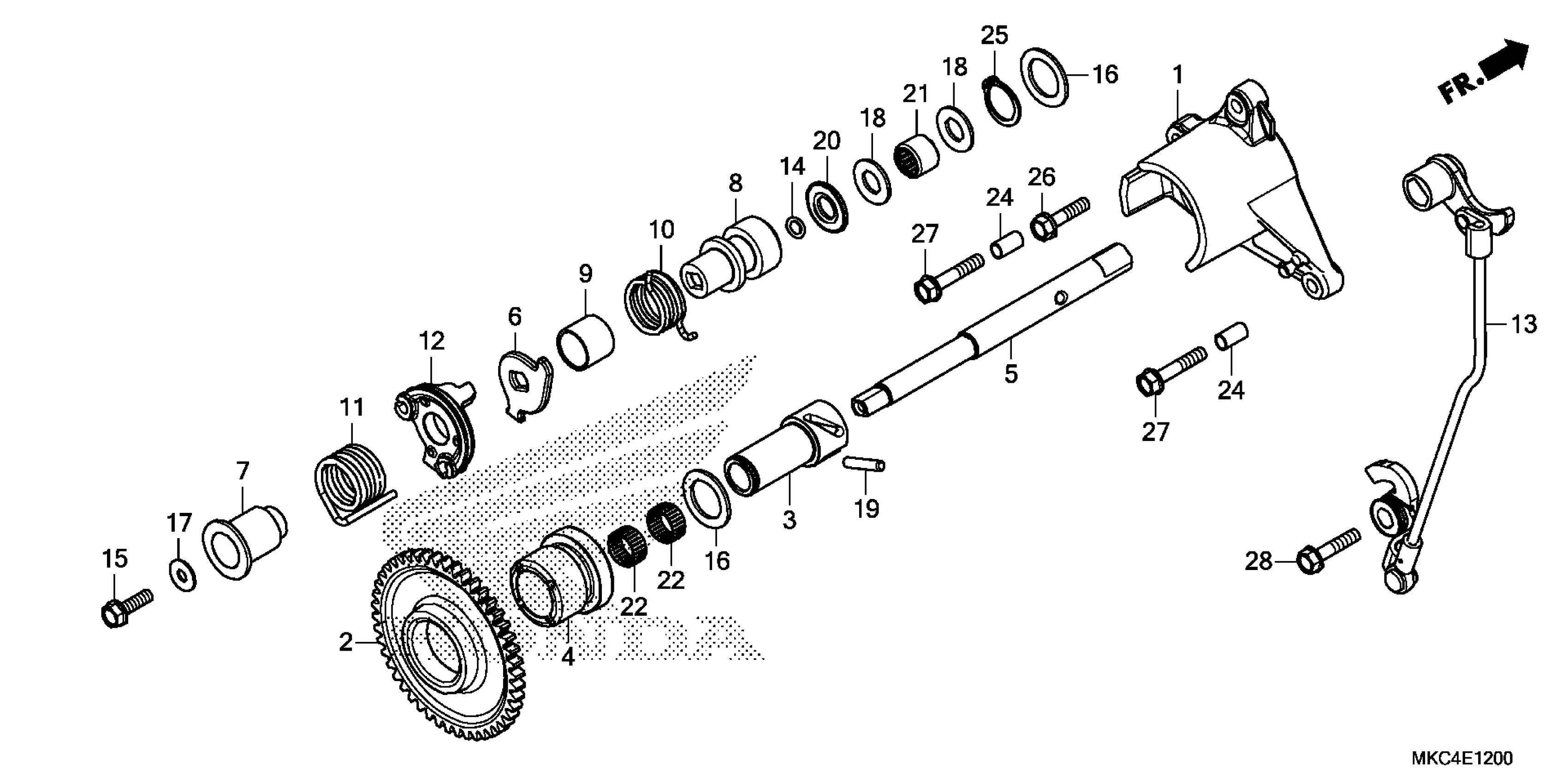

Honda GL18002AC (18) MOTORCYCLE, JPN, VIN# JH2SC790-JK000001 REVERSE GEAR Diagram
