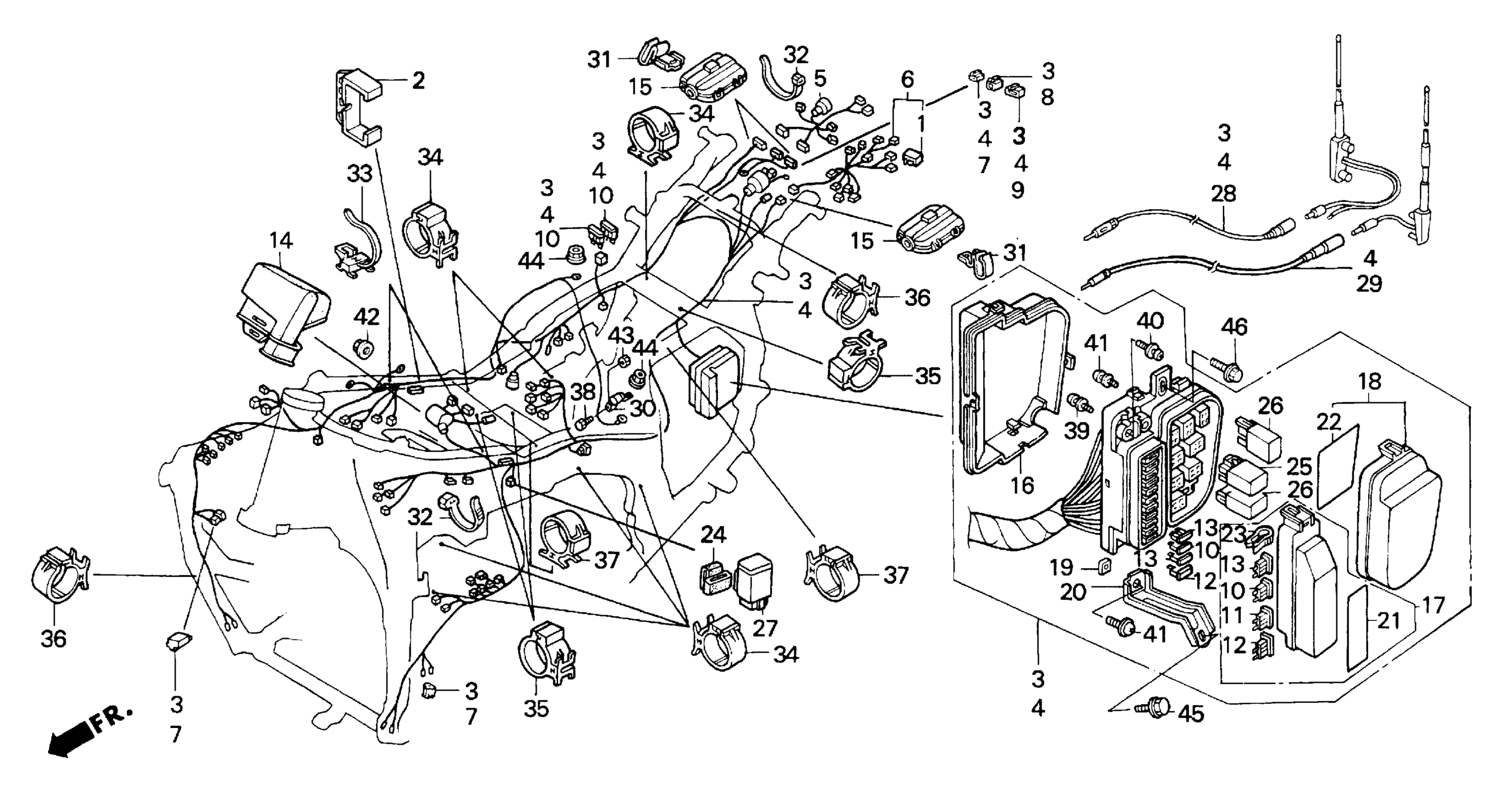

Honda GL1500SEA (99) GOLD WING SE, USA, VIN# 1HFSC223-XA100001 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER, SILICON (SHINDENGEN)

31710-371-008

$40.03

2

HOLDER C, CONNECTOR

32012-MT8-000

Unavailable

4

WIRE HARNESS

32100-MAM-D80

Unavailable

5

SUB-HARNESS, R. RR.

32101-MT8-000

Unavailable

6

SUB-HARNESS, L. RR.

32102-MZ3-770

Unavailable

7

COVER, CONNECTOR (2P)

32136-MN5-003

Unavailable

9

COVER, CONNECTOR (6P)

32138-KB2-003

Unavailable

10

FUSE, BLADE (5A) This part replaces 32501-MT8-003.

98200-30500

$1.49

10

FUSE, BLADE (5A)

98200-30500

$1.49

11

FUSE, BLADE (10A) This part replaces 32503-SM4-003.

98200-31000

$1.49

11

FUSE, BLADE (10A)

98200-31000

$1.49

12

FUSE, BLADE (15A) This part replaces 32504-SM4-003.

98200-31500

$1.49

12

FUSE, BLADE (15A)

98200-31500

$1.49

13

FUSE, BLADE (20A) This part replaces 32505-SM4-003.

98200-32000

$1.49

13

FUSE, BLADE (20A)

98200-32000

$1.49

14

COVER, RADIO CONNECTOR

32814-MN5-010

Unavailable

15

CASE, CONNECTOR (22P)

32815-MN5-003

Unavailable

16

COVER, RELAY & FUSE BOX (LOWER)

38204-MN5-000

Unavailable

17

COVER ASSY., FUSE BOX

38205-MAM-D81

Unavailable

18

COVER ASSY., RELAY BOX

38206-MZ3-670

Unavailable

19

NUT, BRACKET (5MM)

38207-MN5-000

Unavailable

20

BRACKET, RELAY & FUSE BOX

38208-MN5-000

Unavailable

22

LABEL, RELAY BOX

38216-MZ3-670

Unavailable

23

PULLER, FUSE (SUMITOMO)

38235-SA5-003

Unavailable

24

SUSPENSION, TURN SIGNAL RELAY

38306-MG9-680

Unavailable

25

RELAY (10A)

38360-MN5-003

Unavailable

26

RELAY (20A)

38370-MN5-003

$45.80

27

RELAY (20A)

38380-MN5-003

$42.68

28

SUB-FEEDER, ANTENNA (NOT AVAILABLE) This part replaces 39159-MN5-003.

39159-MN5-000

Unavailable

29

SUB-FEEDER, CB ANTENNA

39169-MZ3-770

Unavailable

30

FILTER, ALTERNATOR (CLARION)

39280-MZ3-770

Unavailable

31

CLAMP, CONNECTOR CASE

50324-MN5-000

Unavailable

32

BAND, WIRE HARNESS

90650-MA6-720

$4.15

33

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.18

33

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

34

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

35

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

36

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

37

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

38

BOLT, HEX. (5X18)

92101-05018-0A

$1.49

39

SCREW-WASHER (4X8)

93893-04008-08

$1.49

40

SCREW-WASHER (4X10)

93893-04010-08

$1.49

41

SCREW-WASHER (5X10)

93893-05010-08

$1.49

42

NUT, HEX. (4MM)

94001-04000-0S

$1.49

43

NUT, HEX. (5MM)

94001-05000-0S

$2.74

44

NUT, FLANGE (6MM)

94050-06080

$1.49

45

BOLT, FLANGE (6X8)

95701-06008-00

$3.46

46

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
