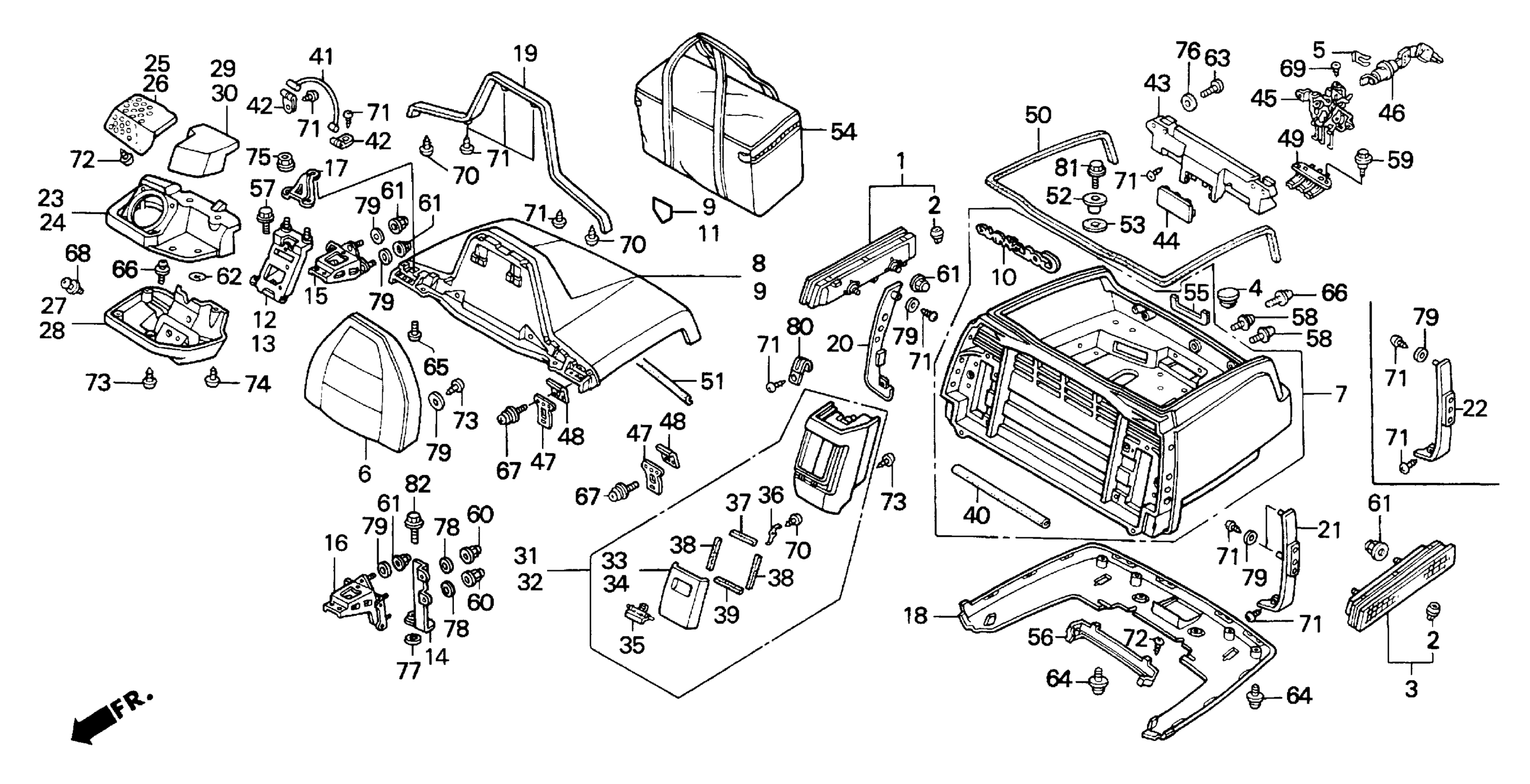

Honda GL1500SEA (99) GOLD WING SE, USA, VIN# 1HFSC223-XA100001 TRUNK BOX Diagram

#

Description
Price

1

GARNISH, R. TRUNK

33950-MT2-004

Unavailable

2

CAP A

33954-MN5-003

Unavailable

3

GARNISH, L. TRUNK

33980-MT2-004

$72.28

4

CAP, MAIN STAND PIPE

50750-MB0-000

$5.50

5

SPRING, LOCK KEY SETTING

77235-469-000

$4.80

6

SEAT, BACK (TYPE1)

77500-MAM-A80ZC

$298.48

7

BODY SET, TRUNK (TYPE10) (WL)

81100-MAM-L70ZB

Unavailable

7

BODY SET, TRUNK (TYPE13) (WL)

81100-MAM-L70ZD

Unavailable

7

BODY SET, TRUNK (TYPE15) (WL)

81100-MAM-L70ZG

Unavailable

7

BODY SET, TRUNK *NH1Z* (WL) (BLACK-Z) (NOT AVAILABLE)

81100-MAM-L70ZA

Unavailable

7

BODY SET, TRUNK (TYPE7) (WL)

81100-MAM-L70ZF

Unavailable

9

LID SET, TRUNK *NH1Z* (WL) (BLACK-Z) (PART IS DISCONTINUED, PLEASE USE P/N 81120-MZ3-770ZC) (NOT AVAILABLE)

81125-MAM-L70ZA

Unavailable

9

LID SET, TRUNK (TYPE10) (WL)

81125-MAM-L70ZB

Unavailable

9

LID SET, TRUNK (TYPE13) (WL)

81125-MAM-L70ZD

Unavailable

9

LID SET, TRUNK (TYPE7) (WL)

81125-MAM-L70ZF

Unavailable

9

LID SET, TRUNK (TYPE15) (WL)

81125-MAM-L70ZG

Unavailable

10

EMBLEM, RR. TRUNK

81127-MAM-A80

Unavailable

11

EMBLEM, RR. TRUNK

81127-MAM-L40

Unavailable

12

HINGE, R. TRUNK

81130-MN5-000

Unavailable

13

HINGE, L. TRUNK

81131-MN5-000

Unavailable

14

PLATE, ANTENNA GROUND

81132-MZ3-770

Unavailable

15

BRACKET, R. TRUNK HINGE (B)

81136-MN5-000

$59.64

16

BRACKET, L. TRUNK HINGE (B)

81137-MN5-000

Unavailable

17

STIFFENER, TRUNK LID

81139-MN5-000

Unavailable

18

COVER, TRUNK *NH1Z* This part replaces 81140-MN5-000ZJ.

81140-MN5-610ZG

Unavailable

18

COVER, TRUNK *R176C* This part replaces 81140-MN5-000ZN.

81140-MN5-610ZP

Unavailable

18

COVER, TRUNK (LOWER) *NH390P* (PEARL TWILIGHT SILVER)

81140-MN5-000YF

$207.23

18

COVER, TRUNK (LOWER) *G167P* (PEARL MERCED GREEN)

81140-MN5-000YH

Unavailable

18

CVR, TRUNK *NH326P* This part replaces 81140-MN5-000ZS.

81140-MN5-610ZN

Unavailable

19

GARNISH, TRUNK LID

81145-MAM-000

$57.83

20

GARNISH, R. TRUNK SIDE

81146-MAM-770

$47.25

22

GARNISH, L. TRUNK SIDE

81147-MAM-770

$46.32

23

COVER, R. ARMREST *NH1R* (BLACK)

81150-MAM-A60ZD

Unavailable

24

COVER, L. ARMREST *NH1R* (BLACK)

81151-MAM-A60ZE

Unavailable

25

COVER B, R. ARMREST *NH1R* (BLACK)

81152-MAM-A60ZD

Unavailable

26

COVER B, L. ARMREST *NH1R* (BLACK)

81153-MAM-A60ZD

Unavailable

27

BODY, R. ARMREST *NH1R* (BLACK)

81154-MAM-A60ZD

Unavailable

28

BODY, L. ARMREST *NH1R* (BLACK)

81156-MAM-A60ZD

Unavailable

29

CUSHION, R. ARMREST *NH1* (BLACK)

81158-MN5-000ZP

Unavailable

30

CUSHION, L. ARMREST *NH1* (BLACK)

81159-MN5-000ZP

Unavailable

31

POCKET ASSY., R. TRUNK *NH68* (BLACK GLOSS 10)

81160-MAM-A70ZC

Unavailable

32

POCKET ASSY., L. TRUNK *NH68* (BLACK GLOSS 10)

81161-MAM-A60ZD

Unavailable

33

LID, R. TRUNK POCKET *NH1R* (BLACK)

81164-MAM-A60ZD

$33.19

34

LID, L. TRUNK POCKET *NH1R* (BLACK)

81165-MAM-A60ZD

$33.19

35

KNOB, TRUNK POCKET *NH1R* (BLACK)

81166-MAM-A60ZD

$36.45

36

SPRING, TRUNK POCKET

81169-MN5-000

$4.20

37

RUBBER, TRUNK POCKET SEAL (A)

81173-MN5-300

$3.26

38

RUBBER, TRUNK POCKET SEAL (B)

81174-MN5-300

Unavailable

39

RUBBER, TRUNK POCKET SEAL (C)

81175-MN5-300

$3.68

40

RUBBER, SEAL

81241-MT2-000

Unavailable

41

STOPPER, TRUNK LID

81250-MN5-000

$7.70

42

STAY B, LID STOPPER

81254-MN5-000

$4.86

43

CATCH ASSY., TRUNK

81305-MT8-771

Unavailable

44

COVER, OPENER UNIT

81306-MN5-003

$33.45

45

OPENER UNIT

81310-MAM-L40

Unavailable

46

LOCK, OPENER UNIT

81312-MN5-000

Unavailable

47

STRIKER, TRUNK

81325-MN5-000

$6.13

48

PLATE, TRUNK STRIKER SETTING

81329-MN5-000

Unavailable

49

LEVER ASSY., LUGGAGE BAG OPENER (MITSUI)

81335-MN5-003

Unavailable

50

RUBBER, TRUNK SEAL (A)

81350-MN5-000

$22.14

51

RUBBER, TRUNK SEAL (B)

81351-MN5-000

Unavailable

52

COLLAR, SADDLEBAG SETTING

81355-MN5-000

$6.15

53

RUBBER, BAG MOUNT

81356-MN5-000

$3.12

54

BAG, TRUNK (INNER)

81360-MAM-A80

Unavailable

55

RUBBER, TRUNK SEAL (C)

81361-MN5-300

Unavailable

56

COVER, LICENSE LIGHT

84705-MT8-000

$16.67

57

BOLT, FLANGE (5X10)

90002-GC3-000

$2.12

58

SCREW, PAN (5X12)

90104-964-000

$2.13

59

BOLT, FLANGE (6MM)

90112-GC6-000

$3.55

60

NUT, CAP (5MM)

90167-MN5-000

$4.03

61

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.21

62

NUT, CLIP

90301-GE0-000

$1.94

63

SCREW, PAN (5X12)

93500-05012-0G

$0.83

64

SCREW-WASHER (4X12)

93891-04012-07

$1.04

65

SCREW-WASHER (5X10)

93893-05010-07

$1.19

66

SCREW-WASHER (5X12)

93893-05012-07

$1.30

67

SCREW-WASHER (5X14)

93893-05014-07

$1.30

68

SCREW-WASHER (5X12)

93894-05012-07

$1.04

69

SCREW, TAPPING (4X10)

93901-24280

$0.83

70

SCREW, TAPPING (4X10)

93903-24280

$1.23

71

SCREW, TAPPING (4X12)

93903-24380

Unavailable

72

SCREW, TAPPING (4X16)

93903-24480

$0.83

73

SCREW, TAPPING (5X16)

93903-25380

$0.83

74

SCREW, TAPPING (5X20)

93903-25480

$0.61

75

NUT, FLANGE (5MM)

94050-05080

$0.33

76

WASHER, PLAIN (5MM)

94101-05700

Unavailable

77

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

77

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

77

WASHER, PLAIN (6MM)

94101-06800

Unavailable

78

WASHER, PLAIN (5MM)

94103-05000

$0.57

79

WASHER, PLAIN (5MM)

94103-05700

$0.86

80

CLIP, WIRE (4X50)

94591-45000

$2.80

81

BOLT, FLANGE (6X20)

96001-06020-07

$1.23

82

BOLT, FLANGE (6X22)

96001-06022-00

$1.13
