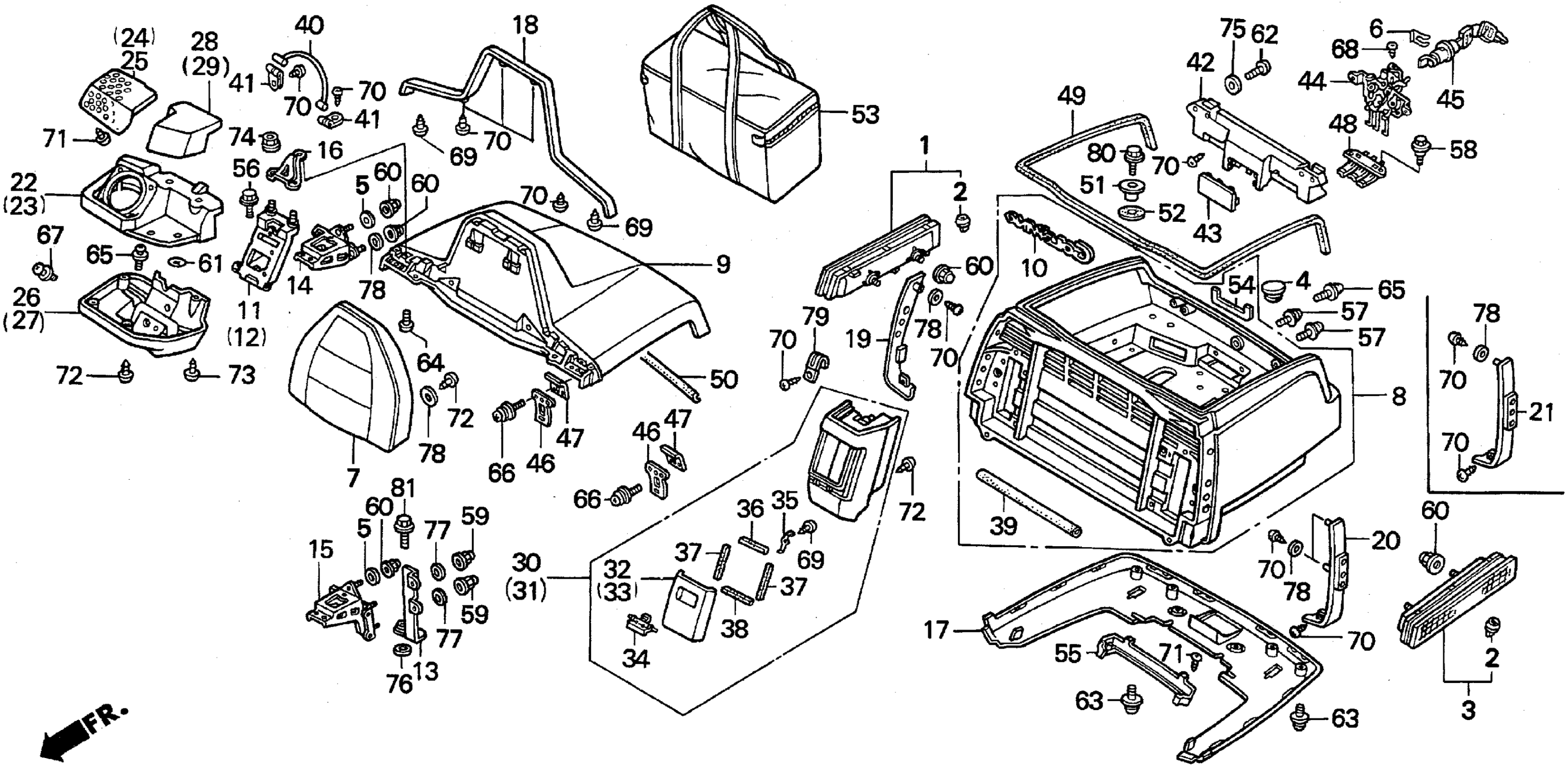

Honda GL1500SEA (96) GOLD WING SE, USA, VIN# 1HFSC223-TA800001 TRUNK BOX Diagram

GARNISH, R. TRUNK

33950-MT2-004

Unavailable

CAP A

33954-MN5-003

Unavailable

GARNISH, L. TRUNK

33980-MT2-004

$81.75

CAP, MAIN STAND PIPE

50750-MB0-000

$5.90

WASHER, PLAIN

52427-KM4-003

Unavailable

SPRING, LOCK KEY SETTING

77235-469-000

$5.26

SEAT, BACK (R129L) (TYPE8)

77500-MT8-000ZF

Unavailable

SEAT, BACK (NH159L) (TYPE1)

77500-MT8-000ZD

$136.75

BODY SET, TRUNK *R176C* (TYPE7) (WL) (CANDY SPECTRA RED) This part replaces 81100-MAF-770ZH.

81100-MAM-A70ZD

Unavailable

BODY SET, TRUNK *R176C* (TYPE7) (WL) (CANDY SPECTRA RED) This part replaces 81100-MAM-A10ZA.

81100-MAM-A70ZD

Unavailable

BODY SET, TRUNK *G156P* (TYPE9) (WL) (PEARL SIERRA GREEN) This part replaces 81100-MAM-A10ZB.

81100-MAM-770ZF

Unavailable

BODY SET, TRUNK (TYPE10) (WL) This part replaces 81100-MAM-A10ZD.

81100-MAM-A70ZB

Unavailable

BODY SET, TRUNK *RP151P* (TYPE8) (PEARL ROYAL MAGENTA) This part replaces 81100-MAM-A10ZE.

81100-MAM-A70ZE

Unavailable

BODY SET, TRUNK *RP151P* (TYPE8) (PEARL ROYAL MAGENTA)

81100-MAM-A70ZE

Unavailable

BODY SET, TRUNK *R176C* (TYPE7) (WL) (CANDY SPECTRA RED) This part replaces 81100-MAM-770ZD.

81100-MAM-A70ZD

Unavailable

BODY SET, TRUNK *RP151P* (TYPE8) (PEARL ROYAL MAGENTA) This part replaces 81100-MAM-770ZE.

81100-MAM-A70ZE

Unavailable

BODY SET, TRUNK *G156P* (TYPE9) (WL) (PEARL SIERRA GREEN)

81100-MAM-770ZF

Unavailable

BODY SET, TRUNK (TYPE10) (WL)

81100-MAM-A70ZB

Unavailable

BODY SET, TRUNK (TYPE7) (WL)

81100-MAM-A70ZD

Unavailable

BOX, TRUNK *NH326P* (PEARL GLACIER WHITE)

80110-MN5-000ZQ

$691.13

LID, TRUNK *NH326P* (WOL) (PEARL GLACIER WHITE)

81120-MZ3-770ZA

Unavailable

LID SET, TRUNK *R176C* (TYPE7) (WL) (CANDY SPECTRA RED) This part replaces 81125-MAM-A10ZA.

81125-MAF-770ZG

Unavailable

LID SET, TRUNK (TYPE9) (WL)

81125-MAM-A10ZB

Unavailable

LID SET, TRUNK (TYPE10) (WL) This part replaces 81125-MAM-A10ZD.

81125-MAM-D80ZB

Unavailable

LID SET, TRUNK *RP151P* (TYPE7) (WL) (PEARL ROYAL MAGENTA) This part replaces 81125-MAM-A10ZE.

81125-MAM-A70ZH

$611.87

LID SET, TRUNK *RP151P* (TYPE7) (WL) (PEARL ROYAL MAGENTA)

81125-MAM-A70ZH

$611.87

LID SET, TRUNK (TYPE10) (WL) This part replaces 81125-MAM-A70ZB.

81125-MAM-D80ZB

Unavailable

LID SET, TRUNK *R176C* (TYPE7) (WL) (CANDY SPECTRA RED) This part replaces 81125-MAM-A70ZD.

81125-MAF-770ZG

Unavailable

LID SET, TRUNK (TYPE7) (WL)

81125-MAF-770ZG

Unavailable

LID SET, TRUNK (TYPE10) (WL)

81125-MAM-D80ZB

Unavailable

LID SET, TRUNK *R176C* (TYPE7) (WL) (CANDY SPECTRA RED) This part replaces 81125-MAM-D80ZE.

81125-MAF-770ZG

Unavailable

HINGE, R. TRUNK

81130-MN5-000

Unavailable

HINGE, L. TRUNK

81131-MN5-000

Unavailable

PLATE, ANTENNA GROUND

81132-MZ3-770

Unavailable

BRACKET, R. TRUNK HINGE (B)

81136-MN5-000

$67.46

BRACKET, L. TRUNK HINGE (B)

81137-MN5-000

$67.46

STIFFENER, TRUNK LID

81139-MN5-000

Unavailable

COVER, TRUNK (LOWER) *RP151P* (PEARL ROYAL MAGENTA)

81140-MN5-000ZX

Unavailable

COVER, TRUNK *G156P* This part replaces 81140-MN5-000ZW.

81140-MN5-610ZQ

Unavailable

COVER, TRUNK *R176C* This part replaces 81140-MN5-000ZN.

81140-MN5-610ZP

Unavailable

CVR, TRUNK *NH326P* This part replaces 81140-MN5-000ZS.

81140-MN5-610ZN

Unavailable

GARNISH, TRUNK LID

81145-MAM-000

$65.41

GARNISH, R. TRUNK SIDE

81146-MAM-770

$53.44

GARNISH, L. TRUNK SIDE

81147-MAM-770

$52.39

COVER, R. ARMREST (TYPE1)

81150-MN5-000ZA

Unavailable

COVER, R. ARMREST (R200) (TYPE7)

81150-MN5-000ZN

Unavailable

COVER, L. ARMREST (NH159L) (TYPE1)

81151-MN5-000ZA

Unavailable

COVER, L. ARMREST (R200) (TYPE7)

81151-MN5-000ZN

$51.38

COVER B, R. ARMREST (NH159L) (TYPE1)

81152-MN5-000ZA

$65.25

COVER B, R. ARMREST (R200) (TYPE7)

81152-MN5-000ZM

Unavailable

COVER B, L. ARMREST (NH159L) (TYPE1)

81153-MN5-000ZA

$65.25

COVER B, L. ARMREST (R200) (TYPE7)

81153-MN5-000ZM

Unavailable

BODY, R. ARMREST (NH159L) (TYPE1)

81154-MN5-000ZA

Unavailable

BODY, R. ARMREST (R200) (TYPE7)

81154-MN5-000ZM

Unavailable

BODY, L. ARMREST (NH159L) (TYPE1)

81156-MN5-000ZA

Unavailable

BODY, L. ARMREST (R200) (TYPE7)

81156-MN5-000ZM

Unavailable

CUSHION, R. ARMREST (NH159L) (TYPE1)

81158-MN5-000ZA

Unavailable

CUSHION, R. ARMREST (R200) (TYPE7)

81158-MN5-000ZM

Unavailable

CUSHION, L. ARMREST (NH159L) (TYPE1)

81159-MN5-000ZA

Unavailable

CUSHION, L. ARMREST (R200) (TYPE7)

81159-MN5-000ZM

Unavailable

POCKET ASSY., R. TRUNK (NH159L) (TYPE1)

81160-MT8-770ZB

Unavailable

POCKET ASSY., R. TRUNK (TYPE7)

81160-MT8-770ZJ

Unavailable

POCKET ASSY., L. TRUNK (NH159L) (TYPE1)

81161-MN5-000ZA

Unavailable

POCKET ASSY., L. TRUNK (R200) (TYPE7)

81161-MN5-000ZM

Unavailable

LID, R. TRUNK POCKET (NH159L) (TYPE1)

81164-MN5-000ZA

$43.70

LID, R. TRUNK POCKET (R200) (TYPE7)

81164-MN5-000ZN

Unavailable

LID, L. TRUNK POCKET (NH159L) (TYPE1)

81165-MN5-000ZA

$36.92

LID, L. TRUNK POCKET (R200) (TYPE7)

81165-MN5-000ZM

$41.87

KNOB, TRUNK POCKET (NH159L) (TYPE1)

81166-MN5-000ZA

$38.87

KNOB, TRUNK POCKET (R200) (TYPE7)

81166-MN5-000ZN

$27.10

SPRING, TRUNK POCKET

81169-MN5-000

$4.53

RUBBER, TRUNK POCKET SEAL (A)

81173-MN5-300

$3.57

RUBBER, TRUNK POCKET SEAL (B)

81174-MN5-300

Unavailable

RUBBER, TRUNK POCKET SEAL (C)

81175-MN5-300

$3.68

RUBBER, SEAL

81241-MT2-000

Unavailable

STOPPER, TRUNK LID

81250-MN5-000

$8.84

STAY B, LID STOPPER

81254-MN5-000

$5.23

CATCH ASSY., TRUNK

81305-MT8-771

Unavailable

COVER, OPENER UNIT

81306-MN5-003

$37.84

OPENER UNIT

81310-MAM-003

Unavailable

LOCK, OPENER UNIT

81312-MN5-000

Unavailable

STRIKER, TRUNK

81325-MN5-000

Unavailable

PLATE, TRUNK STRIKER SETTING

81329-MN5-000

Unavailable

LEVER ASSY., LUGGAGE BAG OPENER (MITSUI)

81335-MN5-003

Unavailable

RUBBER, TRUNK SEAL (A)

81350-MN5-000

$25.05

RUBBER, TRUNK SEAL (B)

81351-MN5-000

Unavailable

COLLAR, SADDLEBAG SETTING

81355-MN5-000

$6.60

RUBBER, BAG MOUNT

81356-MN5-000

$3.43

BAG, TRUNK (INNER)

81360-MAF-000

Unavailable

RUBBER, TRUNK SEAL (C)

81361-MN5-300

Unavailable

COVER, LICENSE LIGHT

84705-MT8-000

$18.85

BOLT, FLANGE (5X10)

90002-GC3-000

$2.33

SCREW (5X12)

90104-964-000

$2.34

BOLT, FLANGE (6MM)

90112-GC6-000

$3.90

NUT, CAP (5MM)

90167-MN5-000

$4.53

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

NUT, CLIP

90301-GE0-000

$2.13

SCREW, PAN (5X12)

93500-05012-0G

$1.49

SCREW-WASHER (4X12)

93891-04012-07

$1.49

SCREW-WASHER (5X10)

93893-05010-07

$1.49

SCREW-WASHER (5X12)

93893-05012-07

$1.49

SCREW-WASHER (5X14)

93893-05014-07

$1.49

SCREW-WASHER (5X12)

93894-05012-07

$1.49

SCREW, TAPPING (4X10)

93901-24280

$1.49

SCREW, TAPPING (4X10)

93903-24280

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

SCREW, TAPPING (4X16)

93903-24480

$1.49

SCREW, TAPPING (5X16)

93903-25380

$1.49

SCREW, TAPPING (5X20)

93903-25480

$1.49

NUT, FLANGE (5MM)

94050-05080

$1.49

WASHER, PLAIN (5MM)

94101-05700

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (5MM)

94103-05000

$1.49

WASHER, PLAIN (5MM)

94103-05700

$1.49

CLIP, WIRE (4X50)

94591-45000

$2.92

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
