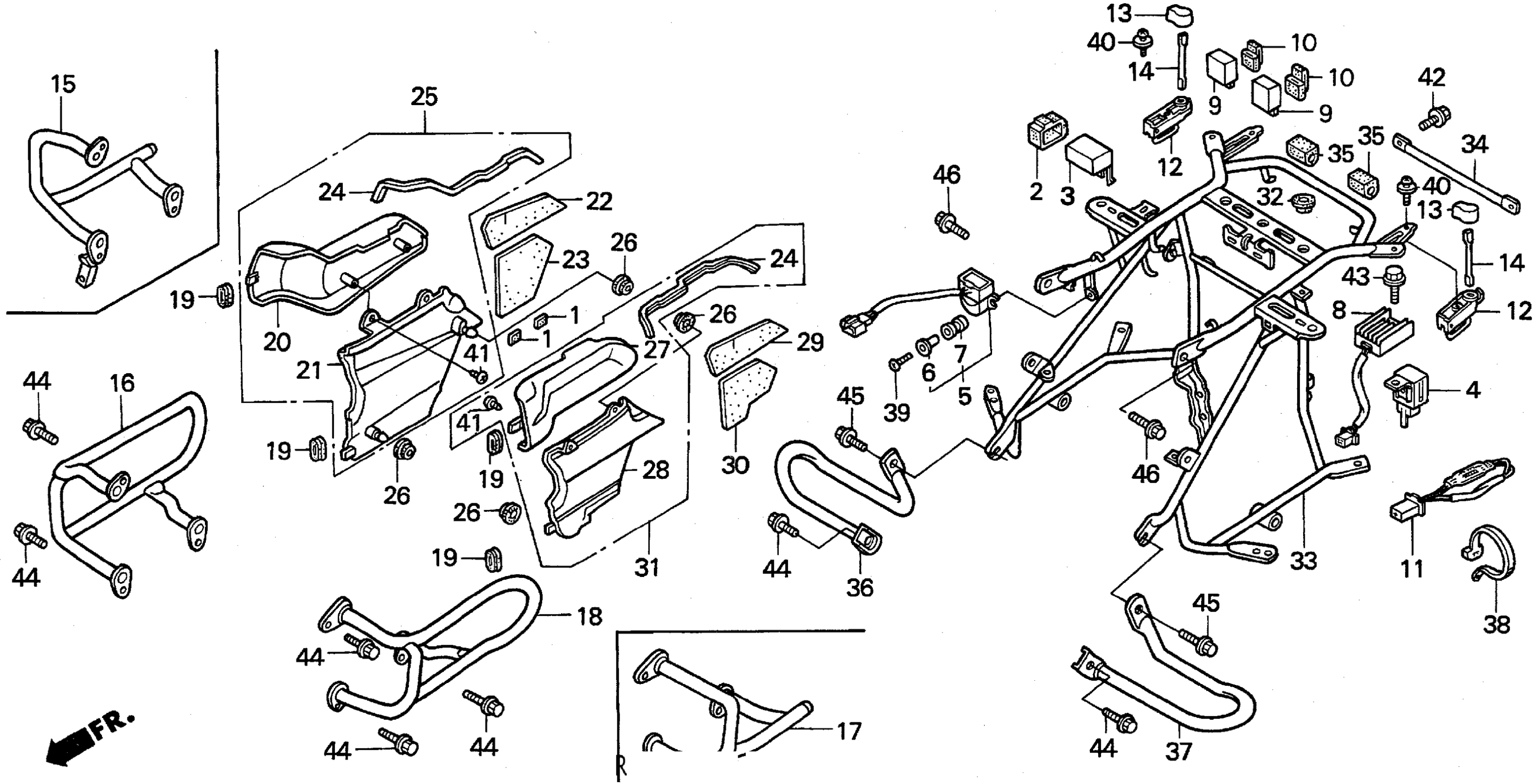

Honda GL1500SEA (96) GOLD WING SE, USA, VIN# 1HFSC223-TA800001 ENGINE GUARD Diagram

#

Description
Price

1

RUBBER, ENGINE SIDE COVER

17507-MN5-000

Unavailable

2

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-KF0-000.

30401-KF0-010

$6.31

3

DIODE, REVERSE

31710-MT8-003

Unavailable

4

CONTROL UNIT, HIGH MOUNT ACCESSORY LIGHT

34210-MT8-771

Unavailable

5

SENSOR ASSY., STOP This part replaces 35160-MAF-003.

35160-MAF-023

Unavailable

6

COLLAR

35162-MN5-003

$7.25

7

GROMMET

35163-MN5-003

$3.15

8

REGULATOR, STARTER MAGNETIC

35880-MN5-000

Unavailable

9

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

9

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MG9-681.

38301-KK9-952

$67.94

10

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

11

FILTER, AIR PUMP

39260-MZ3-770

Unavailable

12

HOLDER ASSY., HELMET

50710-MN5-000

Unavailable

13

KNOB, HELMET HOLDER

50712-MN5-000

$24.87

14

ROD, HELMET HOLDER

50713-MN5-000

$8.20

16

GUARD, R. ENGINE

62501-MN5-000

Unavailable

18

GUARD, L. ENGINE

62601-MN5-000

Unavailable

19

RUBBER, ENGINE SIDE COVER

83124-MN5-000

$3.06

20

COVER, R. (UPPER) (TYPE10)

83511-MY4-000ZA

$112.21

21

COVER, R. (LOWER) (TYPE20)

83512-MAF-000ZG

Unavailable

21

COVER, R. (LOWER) (TYPE16)

83512-MAF-000ZB

Unavailable

21

COVER, R. (LOWER) (TYPE21)

83512-MAF-000ZH

Unavailable

21

COVER, R. (LOWER) *NH253M* (OCEAN GRAY METALLIC) This part replaces 83512-MAF-000ZF.

83512-MAF-000ZU

$76.39

22

MAT, R. ENGINE SIDE COVER (UPPER)

83513-MAM-300

Unavailable

23

MAT, R. ENGINE SIDE COVER (LOWER)

83514-MAM-300

Unavailable

24

SEAL, ENGINE SIDE COVER

83515-MN5-300

Unavailable

25

COVER ASSY., R. ENGINE SIDE (TYPE20)

83520-MAF-000ZH

$156.33

25

COVER ASSY., R. ENGINE SIDE (TYPE16)

83520-MAF-000ZB

$156.33

25

COVER ASSY., R. ENGINE SIDE (TYPE21)

83520-MAF-000ZJ

$156.33

25

COVER ASSY., R. ENGINE SIDE *NH253M* (OCEAN GRAY METALLIC) This part replaces 83520-MAF-000ZF.

83520-MAF-000ZV

$146.15

26

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

27

COVER, L. (UPPER) (TYPE10)

83561-MY4-000ZA

Unavailable

28

COVER, L. (LOWER) (TYPE20)

83562-MAF-000ZG

Unavailable

28

COVER, L. (LOWER) (TYPE16)

83562-MAF-000ZB

Unavailable

28

COVER, L. (LOWER) (TYPE21)

83562-MAF-000ZH

Unavailable

28

COVER, L. (LOWER) (TYPE8)

83562-MAF-000ZF

$56.10

29

MAT, L. ENGINE SIDE COVER (UPPER)

83563-MAM-300

Unavailable

30

MAT, L. ENGINE SIDE COVER (LOWER)

83564-MAM-300

Unavailable

31

COVER ASSY., L. ENGINE SIDE (TYPE20)

83570-MAF-000ZH

Unavailable

31

COVER ASSY., L. ENGINE SIDE (TYPE16)

83570-MAF-000ZB

Unavailable

31

COVER ASSY., L. ENGINE SIDE (TYPE21)

83570-MAF-000ZJ

$204.84

31

COVER ASSY., L. ENGINE SIDE *NH253M* (OCEAN GRAY METALLIC) This part replaces 83570-MAF-000ZF.

83570-MAF-000ZV

Unavailable

31

COVER ASSY., L. ENGINE SIDE *NH253M* (OCEAN GRAY METALLIC)

83570-MAF-000ZV

Unavailable

32

RUBBER, BATTERY BOX

83618-323-000

$2.47

33

STAY, SADDLEBAG This part replaces 84100-MN5-000.

84100-MN5-610

$645.03

33

STAY, SADDLEBAG

84100-MN5-610

$645.03

34

JOINT, RR. FRAME END

84102-MN5-000

Unavailable

35

CUSHION, RR. TRUNK

84103-MN5-000

Unavailable

36

GUIDE, R. SADDLEBAG

84130-MN5-000

Unavailable

37

GUIDE, L. SADDLEBAG

84140-MN5-000

Unavailable

38

BAND, WIRE HARNESS

90650-MA6-720

$4.15

39

SCREW, PAN (4X20)

93500-04020-0H

$1.49

40

SCREW-WASHER (6X12)

93893-06012-07

$1.49

41

SCREW, TAPPING (5X12)

93903-25280

$1.49

42

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

43

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

44

BOLT, FLANGE (8X16)

95701-08016-08

$1.80

45

BOLT, FLANGE (8X20)

95701-08020-08

$1.62

46

BOLT, FLANGE (10X25)

95701-10025-08

$2.19
