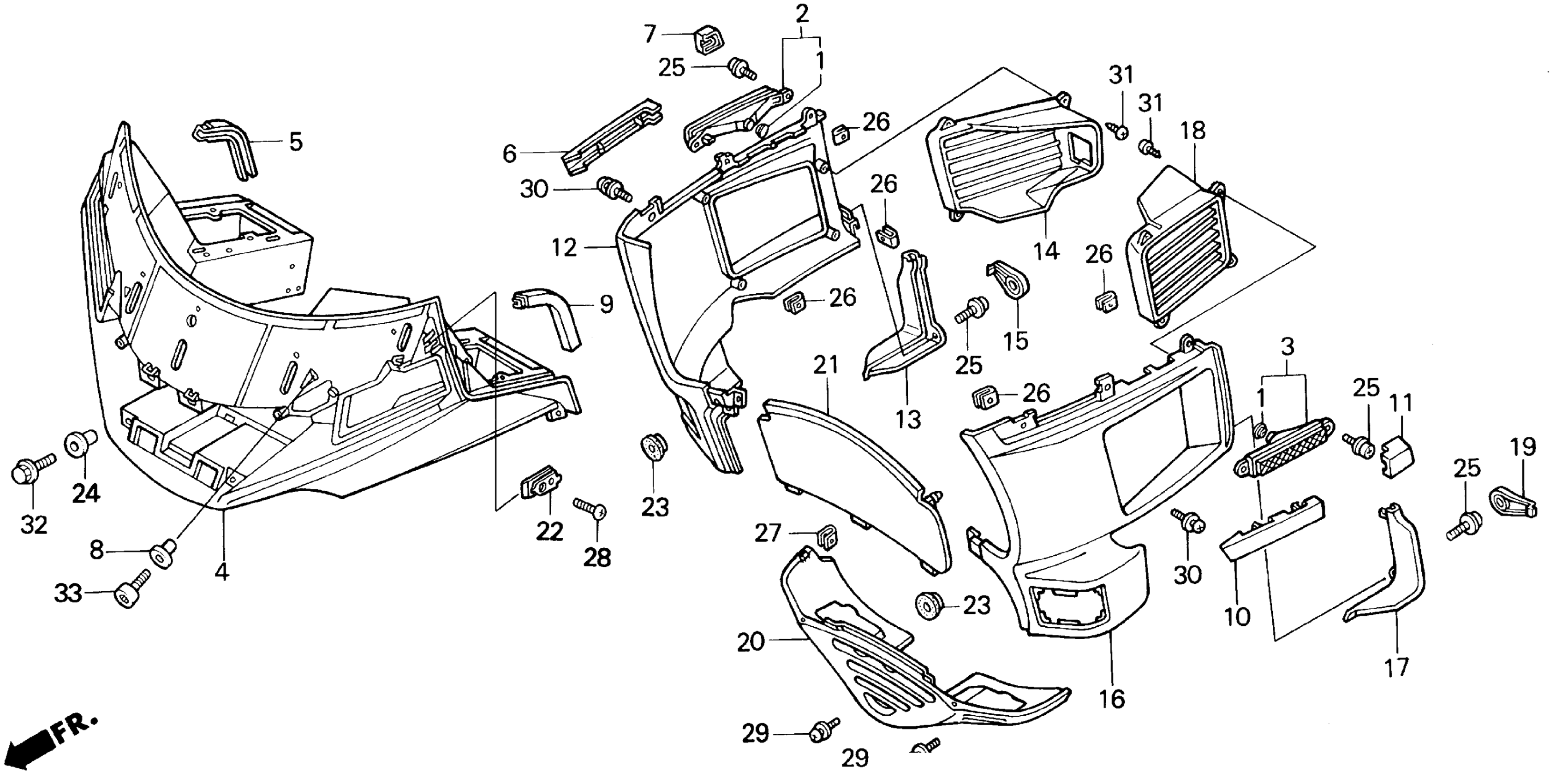

Honda GL1500SEA (95) GOLD WING SE, USA, VIN# 1HFSC223-SA700001 FAIRING Diagram

GROMMET

33710-MM5-711

Unavailable

REFLECTOR, R. FR. REFLEX

33740-MAM-A62

Unavailable

REFLECTOR, R. FR. REFLEX This part replaces 33740-MN5-013.

33740-MAM-A62

Unavailable

REFLECTOR SET, FR. REFLEX

33745-MAM-A62

$34.54

REFLECTOR SET, FR. REFLEX This part replaces 33745-MN5-013.

33745-MAM-A62

$34.54

FAIRING *NH326P* (PEARL GLACIER WHITE)

64200-MT8-000ZJ

$1,590.39

FAIRING SET (TYPE7) (WL) This part replaces 64210-MAF-770ZG.

64210-MAM-L70ZE

$2,074.36

FAIRING SET (TYPE7) (WL) This part replaces 64210-MAM-A70ZD.

64210-MAM-L70ZE

$2,074.36

FAIRING SET (TYPE7) (WL) This part replaces 64210-MAM-D80ZE.

64210-MAM-L70ZE

$2,074.36

FAIRING SET (TYPE7) (WL)

64210-MAM-L70ZE

$2,074.36

FAIRING SET (TYPE7) (WL) This part replaces 64210-MAM-770ZD.

64210-MAM-L70ZE

$2,074.36

FAIRING SET *RP151P* (TYPE8) (WL) (PEARL ROYAL MAGENTA)

64210-MAM-770ZE

Unavailable

FAIRING SET *G156P* (TYPE9) (WL) (PEARL SIERRA GREEN)

64210-MAM-770ZF

Unavailable

MOLDING, R. COWL TRIM *R176C* (CANDY SPECTRA RED)

64204-MN5-000ZN

$84.79

MOLDING, R. COWL TRIM *RP151P* (PEARL ROYAL MAGENTA)

64204-MN5-000ZW

$78.36

MOLDING, R. COWL TRIM *G156P* (PEARL SIERRA GREEN)

64204-MN5-000ZV

Unavailable

MOLDING, R. COWL TRIM *NH326P* (PEARL GLACIER WHITE)

64204-MN5-000ZQ

$75.72

MOLDING, R. FR. SIDE

64205-MN5-000

$13.23

MOLDING, R. RR. SIDE

64206-MN5-000

$15.83

COLLAR, FAIRING SETTING

64209-MN5-000

$2.97

MOLDING, L. COWL TRIM *R176C* (CANDY SPECTRA RED)

64214-MN5-000ZN

$84.79

MOLDING, L. COWL TRIM *RP151P* (PEARL ROYAL MAGENTA)

64214-MN5-000ZW

$78.36

MOLDING, L. COWL TRIM *G156P* (PEARL SIERRA GREEN)

64214-MN5-000ZV

Unavailable

MOLDING, L. COWL TRIM *NH326P* (PEARL GLACIER WHITE)

64214-MN5-000ZQ

Unavailable

MOLDING, L. FR. SIDE

64215-MN5-000

$13.37

MOLDING, L. RR. SIDE

64216-MN5-000

$15.84

COWL, R. (LOWER) *NH326P* (PEARL GLACIER WHITE) This part replaces 64280-MT8-770ZF.

64280-MAM-000ZD

Unavailable

COWL, R. (LOWER) *R176C* (CANDY SPECTRA RED) This part replaces 64280-MT8-770ZK.

64280-MAM-000ZC

Unavailable

COWL, R. *G156P* This part replaces 64280-MT8-770ZL.

64280-MAM-000ZA

Unavailable

COWL, R. *RP151P* This part replaces 64280-MT8-770ZM.

64280-MAM-000ZB

Unavailable

DEFLECTOR, R. SIDE *R176C* (CANDY SPECTRA RED)

64284-MN5-000ZN

$174.67

DEFLECTOR, R. SIDE *RP151P* (PEARL ROYAL MAGENTA)

64284-MN5-000ZW

Unavailable

DEFLECTOR, R. SIDE *G156P* (PEARL SIERRA GREEN)

64284-MN5-000ZV

Unavailable

DEFLECTOR, R. SIDE *NH326P* (PEARL GLACIER WHITE)

64284-MN5-000ZQ

Unavailable

LOUVER, R. SIDE COWL (LOWER)

64285-MN5-000

$161.52

CAP, R. DEFLECTOR *R176C* (CANDY SPECTRA RED)

64286-MT2-000ZN

$44.51

CAP, R. DEFLECTOR *RP151P* (PEARL ROYAL MAGENTA)

64286-MT2-000ZX

Unavailable

CAP, R. DEFLECTOR *G156P* (PEARL SIERRA GREEN)

64286-MT2-000ZW

Unavailable

CAP, R. DEFLECTOR *NH326P* (PEARL GLACIER WHITE)

64286-MT2-000ZS

$51.85

COWL, L. (LOWER) *NH326P* (PEARL GLACIER WHITE) This part replaces 64290-MT8-770ZF.

64290-MAM-000ZD

Unavailable

COWL, L. (LOWER) *R176C* (CANDY SPECTRA RED) This part replaces 64290-MT8-770ZK.

64290-MAM-000ZC

Unavailable

COWL, L. *G156P* This part replaces 64290-MT8-770ZL.

64290-MAM-000ZA

Unavailable

COWL, L. *RP151P* This part replaces 64290-MT8-770ZM.

64290-MAM-000ZB

Unavailable

DEFLECTOR, L. SIDE *R176C* (CANDY SPECTRA RED)

64294-MN5-000ZN

Unavailable

DEFLECTOR, L. SIDE *RP151P* (PEARL ROYAL MAGENTA)

64294-MN5-000ZW

Unavailable

DEFLECTOR, L. SIDE *G156P* (PEARL SIERRA GREEN)

64294-MN5-000ZV

Unavailable

DEFLECTOR, L. SIDE *NH326P* (PEARL GLACIER WHITE)

64294-MN5-000ZQ

Unavailable

LOUVER, L. SIDE COWL (LOWER)

64295-MN5-000

$156.84

CAP, L. DEFLECTOR *R176C* (CANDY SPECTRA RED)

64296-MT2-000ZN

$44.59

CAP, L. DEFLECTOR *RP151P* (PEARL ROYAL MAGENTA)

64296-MT2-000ZX

Unavailable

CAP, L. DEFLECTOR *G156P* (PEARL SIERRA GREEN)

64296-MT2-000ZW

Unavailable

CAP, L. DEFLECTOR *NH326P* (PEARL GLACIER WHITE)

64296-MT2-000ZS

Unavailable

COWL, FR. (LOWER) *R199C* (TYPE16) (CANDY GARNET RED)

64300-MN5-000ZU

Unavailable

COWL, FR. (LOWER) *RP151P* (TYPE20) (PEARL ROYAL MAGENTA)

64300-MN5-000ZY

Unavailable

COWL, FR. (LOWER) *G156P* (TYPE21) (PEARL SIERRA GREEN)

64300-MN5-000YA

Unavailable

COWL, FR. (LOWER) *NH253M* (OCEAN GRAY METALLIC)

64300-MN5-000YP

Unavailable

COWL, FR. (LOWER) *NH253M* (OCEAN GRAY METALLIC) This part replaces 64300-MN5-000ZH.

64300-MN5-000YP

Unavailable

PANEL, FR. (LOWER) *R176C* (CANDY SPECTRA RED)

64500-MN5-000ZN

Unavailable

PANEL, FR. (LOWER) *RP151P* (PEARL ROYAL MAGENTA)

64500-MN5-000ZW

Unavailable

PANEL, FR. (LOWER) *G156P* (PEARL SIERRA GREEN)

64500-MN5-000ZV

Unavailable

PANEL, FR. (LOWER) *NH326P* (PEARL GLACIER WHITE)

64500-MN5-000ZQ

Unavailable

GROMMET, SIDE COVER

83601-MN5-000

$2.92

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.71

BOLT, RECESSED (5X16)

90125-MT2-000

$4.06

NUT, PLATE (5MM)

90305-MN5-000

$6.02

NUT, SPRING (5MM)

90320-GE2-760

$1.88

SCREW-WASHER (5X14)

93891-05014-07

$1.49

SCREW-WASHER (5X20)

93894-05020-08

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, SOCKET (6X18)

96600-06018-07

$1.84
