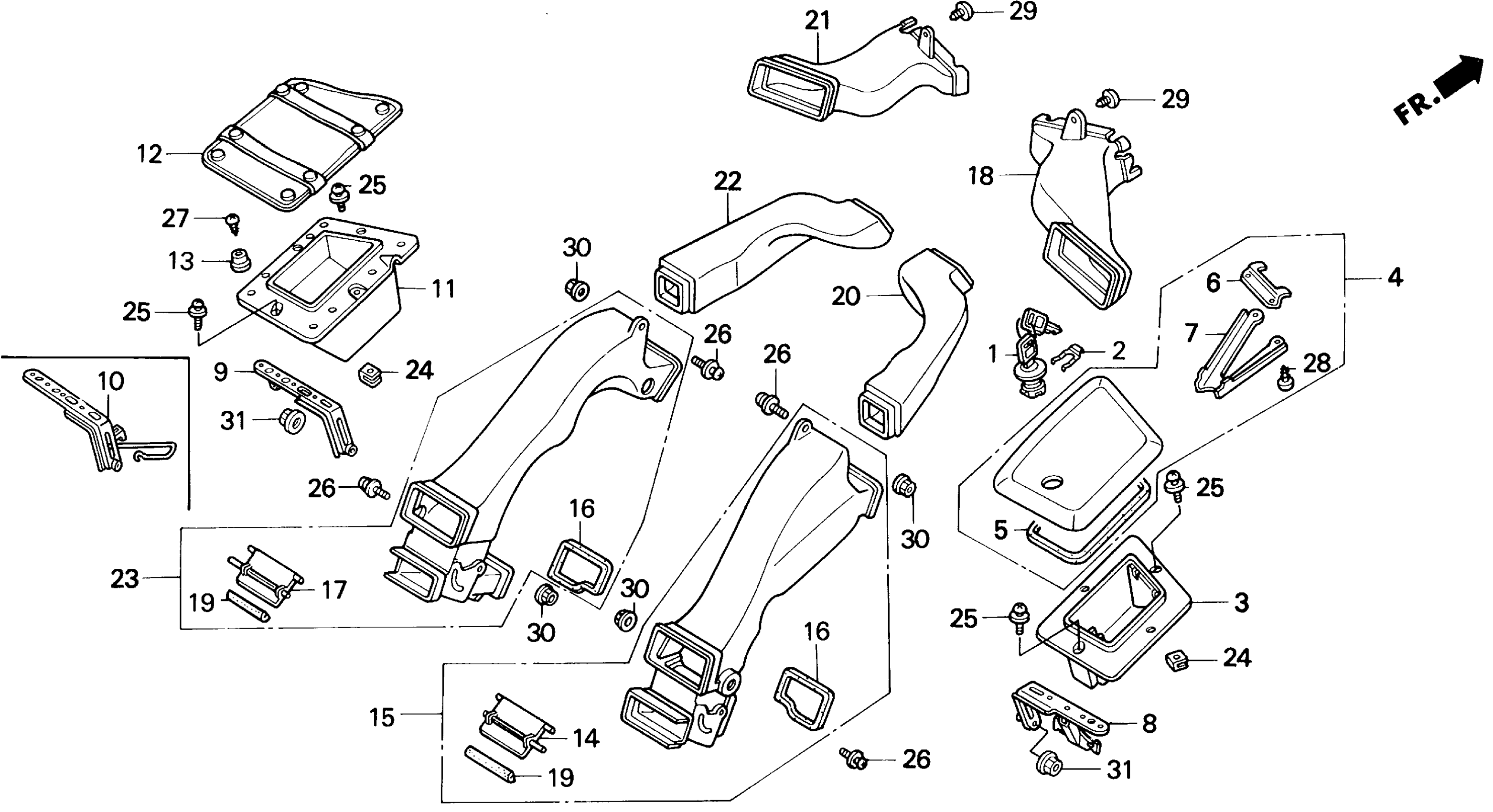

Honda GL1500SEA (95) GOLD WING SE, USA, VIN# 1HFSC223-SA700001 AIR DUCT Diagram

#

Description
Price

1

LOCK, FILLER LID

37220-439-007

$54.29

2

SPRING, LOCK KEY SETTING

37222-463-000

$8.05

3

POCKET, R.

64220-MN5-000

$71.48

4

COVER ASSY., R. POCKET *NH159L* (TYPE1) (COSMOPOLITAN GRAY)

64225-MZ3-000ZA

Unavailable

4

COVER ASSY., R. POCKET *R200* (TYPE7) (TUSCANY RED)

64225-MZ3-000ZF

Unavailable

5

RUBBER, R. POCKET COVER

64227-MN5-000

$12.13

6

PLATE, R. POCKET COVER

64228-MN5-000

$6.56

7

PLATE, SUPPORT

64229-MN5-000

Unavailable

8

PLATE, R. SHELTER SETTING

64234-MZ3-000

Unavailable

9

PLATE, L. SHELTER SETTING

64235-MZ3-770

Unavailable

11

POCKET, L.

64250-MN5-000

Unavailable

12

COVER, L. POCKET *NH159L* (TYPE1) (COSMOPOLITAN GRAY)

64255-MN5-000ZA

Unavailable

12

COVER, L. POCKET *R129L* (TYPE8) (TUSCANY RED)

64255-MN5-000ZJ

Unavailable

13

HOOK, POCKET

64259-MN5-000

Unavailable

14

LID, R. AIR DUCT

64264-MN5-000

Unavailable

15

DUCT ASSY., R. (LOWER)

64271-MN5-000

Unavailable

16

SEAL, HOT AIR

64276-MN5-300

$11.91

17

LID, L. AIR DUCT

64274-MN5-000

Unavailable

18

DUCT, R. AIR (UPPER)

64275-MN5-000

$45.52

19

SEAL, AIR DUCT LID

64273-MN5-300

Unavailable

20

DUCT, R. AIR (LOWER)

64278-MN5-000

$42.88

21

DUCT, L. AIR (UPPER)

64283-MN5-000

$44.13

22

DUCT, L. AIR (LOWER)

64288-MN5-000

$42.88

23

DUCT ASSY., L. (LOWER)

64289-MN5-000

Unavailable

24

NUT, PLATE (5MM)

90305-MN5-000

$6.02

25

SCREW-WASHER (5X20)

93891-05020-07

$1.49

26

SCREW-WASHER (4X12)

93894-04012-08

$1.49

27

SCREW, TAPPING (4X10)

93901-24280

$1.49

28

SCREW, TAPPING (5X12)

93903-25280

$1.49

29

SCREW, TAPPING (4X10)

93903-34220

$1.49

30

NUT, FLANGE (4MM)

94050-04080

$1.49

31

NUT, FLANGE (6MM)

94050-06080

$1.49
