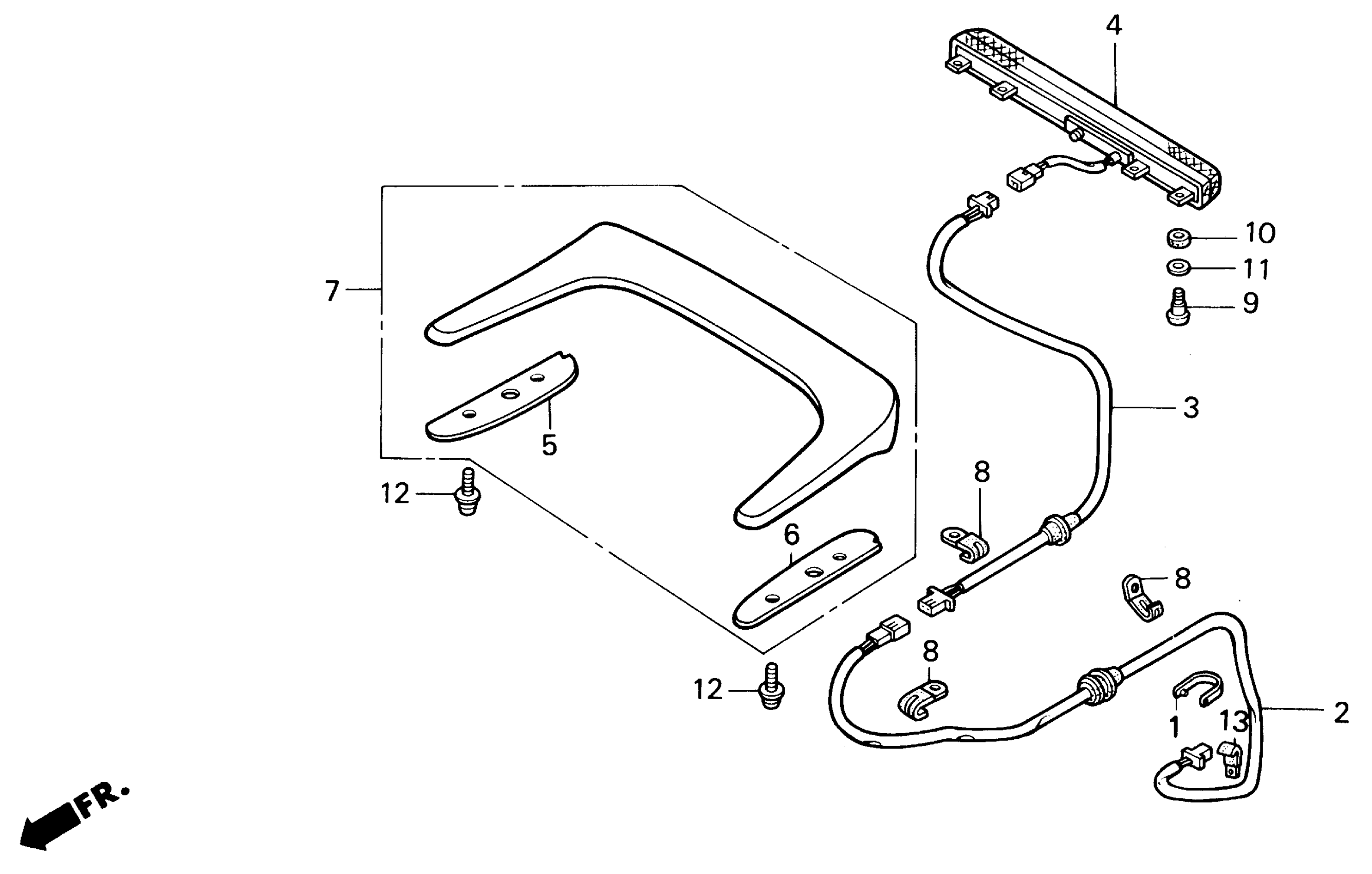

Honda GL1500SEA (94) GOLD WING SE, USA, VIN# 1HFSC223-RA600001 SE HIGH MOUNT LIGHT Diagram

CLIP, THROTTLE CABLE

17918-KJ2-000

Unavailable

SUB-HARNESS, HIGH SETTING STOP LIGHT (B)

32110-MT8-770

Unavailable

SUB-HARNESS, HIGH MOUNT STOP LIGHT (A)

32116-MT8-770

Unavailable

LIGHT ASSY., HIGH MOUNT ACCESSORY

34200-MT8-771

Unavailable

RUBBER, R. HIGH MOUNT LIGHT BASE

34311-MT8-770

Unavailable

RUBBER, L. HIGH MOUNT LIGHT BASE

34312-MT8-770

Unavailable

BASE SUB-ASSY., HIGH MOUNT LIGHT *BG101P* (PEARL BERMUDA GREEN)

34320-MT8-770ZN

Unavailable

BASE SUB-ASSY., HIGH MOUNT LIGHT *B142P* (PEARL ATLANTIS BLUE)

34320-MT8-770ZP

Unavailable

BASE SUB-ASSY., HIGH MOUNT LIGHT *NH326P* (PEARL GLACIER WHITE)

34320-MT8-770ZG

$483.16

BASE SUB-ASSY., HIGH MOUNT LIGHT *R176C* (CANDY SPECTRA RED)

34320-MT8-770ZQ

$483.16

CLIP (4X50)

90601-KJ9-000

$3.08

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.90

RUBBER, HIGH MOUNT STOP LIGHT

91423-MT8-770

Unavailable

WASHER, PLAIN (7MM)

91424-MT8-770

Unavailable

SCREW-WASHER (6X12)

93891-06012-07

$1.49

SCREW-WASHER (6X12) This part replaces 93891-06012-17.

93891-06012-07

$1.49

CLIP, WIRE (4X50)

94591-45000

$2.92
