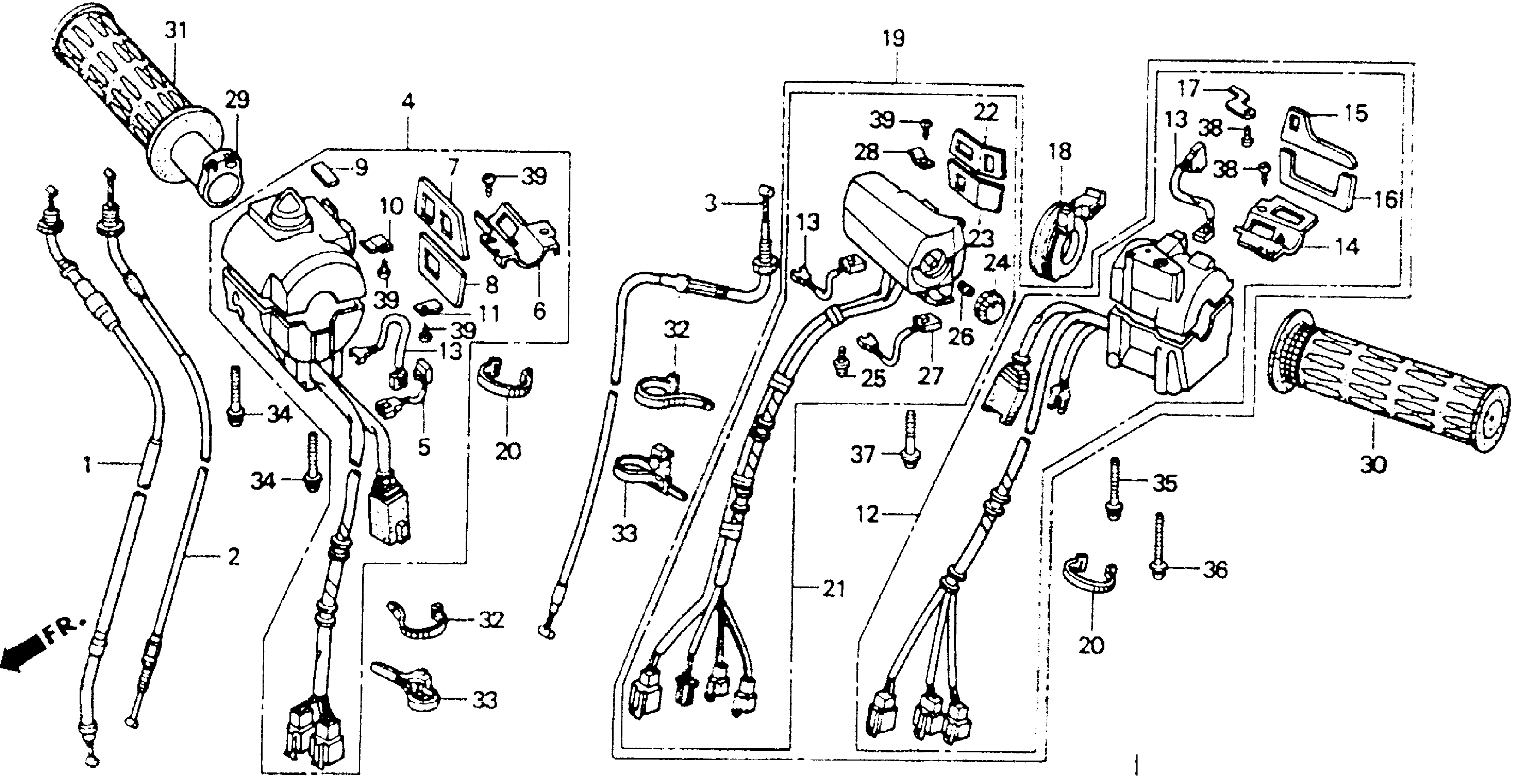

Honda GL1500SEA (93) GOLD WING SE, USA, VIN# 1HFSC223-PA500001 HANDLE SWITCH (I) Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MT8-004

$50.41

2

CABLE, HANDLE THROTTLE

17920-MT8-004

$54.76

3

CABLE, CHOKE

17950-MN5-004

$47.31

4

SWITCH ASSY., STARTER STOP & CRUISE

35130-MT8-771

Unavailable

5

BULB A, A (T3)

35131-MT8-771

Unavailable

6

PLATE, STOP SWITCH SETTING

35132-MN5-010

Unavailable

7

PLATE A, ORNAMENT

35133-MT8-771

Unavailable

8

PLATE B, ORNAMENT

35134-MT8-771

Unavailable

9

PLATE C, ORNAMENT

35135-MT8-771

Unavailable

10

CLAMP A

35136-MT8-771

Unavailable

11

CLAMP B

35137-MT8-771

Unavailable

12

SWITCH ASSY., TURN SIGNAL This part replaces 35200-MT8-771.

35200-MT8-772

Unavailable

12

SWITCH ASSY., TURN SIGNAL

35200-MT8-772

Unavailable

13

BULB (T3) (B)

35201-MT8-771

$5.49

14

PLATE, TURN SIGNAL SETTING

35202-MN5-010

Unavailable

15

PLATE A, ORNAMENT

35203-MT8-771

Unavailable

16

PLATE B, ORNAMENT

35204-MN5-000

Unavailable

17

CLAMP, WIRE (A)

35206-MT8-771

Unavailable

18

LEVER, CHOKE

35209-MN5-000

Unavailable

19

SWITCH ASSY., AUDIO & TURN SIGNAL (TOYO) This part replaces 35210-MZ3-771.

35210-MZ3-772

Unavailable

19

SWITCH ASSY., AUDIO & TURN SIGNAL (TOYO)

35210-MZ3-772

Unavailable

20

BAND (BLACK 3.5X140)

35701-MG9-950

$1.89

21

SWITCH ASSY., AUDIO & CB (NOT AVAILABLE)

39200-MZ3-771

Unavailable

22

PLATE, ORNAMENT (A)

39201-MZ3-771

Unavailable

23

PLATE B, ORNAMENT

39202-MZ3-771

Unavailable

24

KNOB, FADER

39203-MZ3-771

Unavailable

25

SCREW-WASHER (3X8)

39204-MZ3-771

Unavailable

26

SPRING, PLATE KNOB

39205-MZ3-771

Unavailable

27

BULB (T3) (C)

39206-MZ3-771

Unavailable

28

CLAMP, CORD

39214-MZ3-771

Unavailable

29

PIPE, GRIP

53141-MG9-680

Unavailable

30

GRIP, L. HANDLEBAR

53167-MG9-315

$10.10

31

GRIP, R. HANDLEBAR

53168-MG9-315

$13.74

32

BAND, WIRE HARNESS

90651-MA6-720

$3.73

33

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.18

33

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

34

SCREW-WASHER (5X25)

93892-05025-07

$1.49

34

SCREW-WASHER (5X25) This part replaces 93892-05026-07.

93892-05025-07

$1.49

35

SCREW-WASHER (5X28)

93892-05028-07

$1.49

36

SCREW-WASHER (5X45)

93892-05045-07

$1.49

37

SCREW-WASHER (5X32)

93893-05032-08

Unavailable

38

SCREW, TAPPING (3X8)

93901-32120

$1.49

39

SCREW, TAPPING (3X10)

93901-32220

$1.49
