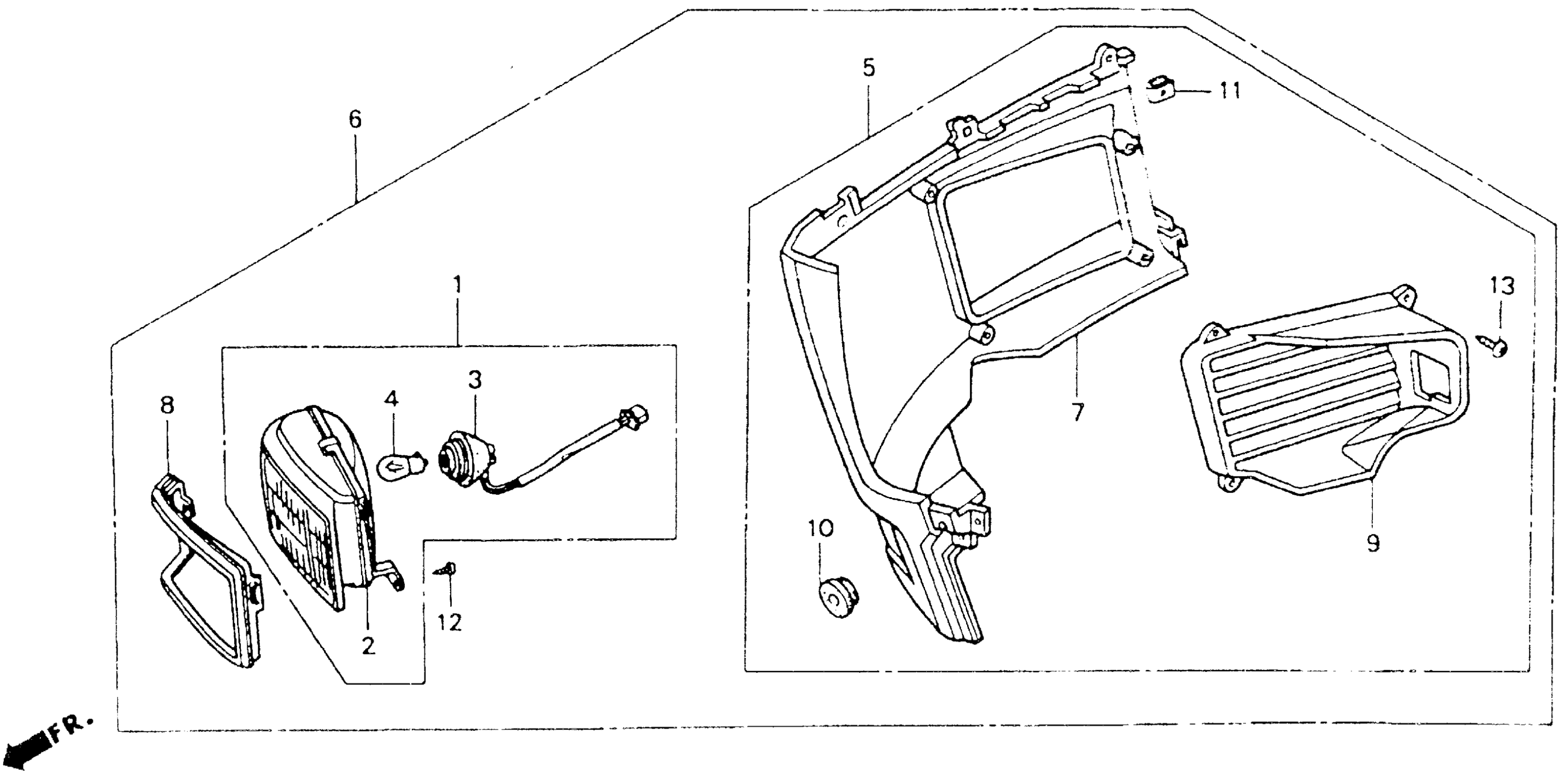

Honda GL1500SEA (92) GOLD WING SE, USA, VIN# 1HFSC223-NA400001 R. SIDE UNDER COWL SET 92 Diagram

#

Description
Price

1

LAMP ASSY., R. CORNERING

33200-MT8-771

Unavailable

2

LAMP UNIT, R. CORNERING

33201-MT8-771

Unavailable

3

SOCKET, R. CORNERING LAMP

33202-MT8-771

Unavailable

4

BULB, HEADLIGHT (12V25/25W)

34901-071-003

$13.97

6

COWL SET, R. SIDE (LOWER) *B134M* (BARBADOS BLUE METALLIC) (NOT AVAILABLE)

64022-MW5-770ZA

Unavailable

7

COWL, R. (LOWER) *B134M* (BARBADOS BLUE METALLIC)

64280-MT8-770ZD

Unavailable

8

RIM, R. CORNERING LAMP

64281-MT8-771

Unavailable

9

LOUVER, R. SIDE COWL (LOWER)

64285-MN5-000

$142.80

10

GROMMET, SIDE COVER

83601-MN5-000

$2.80

11

NUT, PLATE (5MM)

90305-MN5-000

$5.09

12

SCREW, TAPPING (5X12)

93903-25220

$0.83

13

SCREW, TAPPING (4X12)

93903-34380

$1.93
