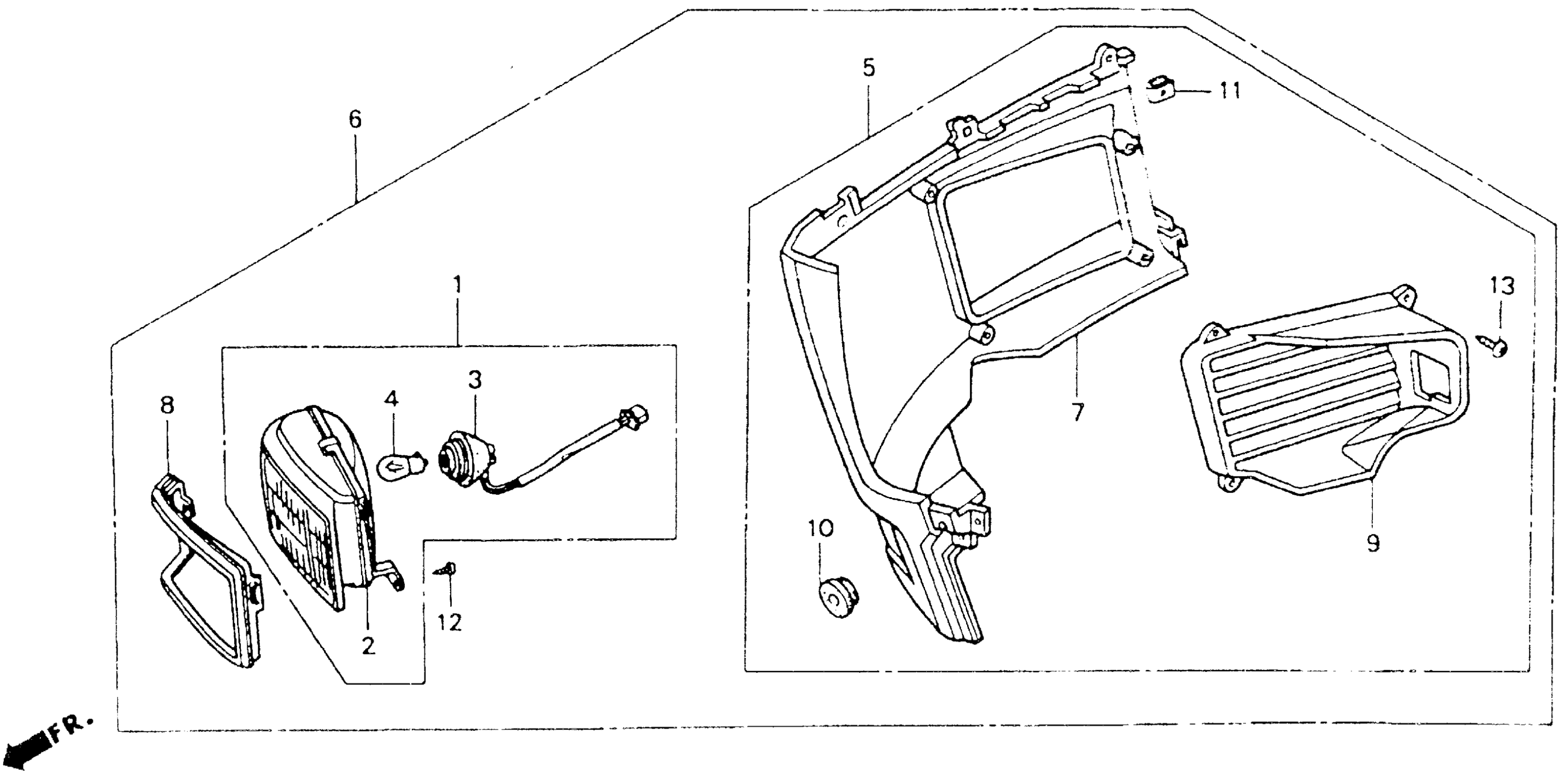

Honda GL1500SEA (92) GOLD WING SE, USA, VIN# 1HFSC223-NA400001 R. SIDE UNDER COWL SET 92 Diagram

LAMP ASSY., R. CORNERING

33200-MT8-771

Unavailable

LAMP UNIT, R. CORNERING

33201-MT8-771

Unavailable

SOCKET, R. CORNERING LAMP

33202-MT8-771

Unavailable

BULB, HEADLIGHT (12V25/25W)

34901-071-003

$15.56

COWL SET, R. SIDE (LOWER) *B134M* (BARBADOS BLUE METALLIC) (NOT AVAILABLE)

64022-MW5-770ZA

Unavailable

COWL, R. (LOWER) *B134M* (BARBADOS BLUE METALLIC)

64280-MT8-770ZD

Unavailable

RIM, R. CORNERING LAMP

64281-MT8-771

$56.69

LOUVER, R. SIDE COWL (LOWER)

64285-MN5-000

$161.52

GROMMET, SIDE COVER

83601-MN5-000

$2.92

NUT, PLATE (5MM)

90305-MN5-000

$6.02

SCREW, TAPPING (5X12)

93903-25220

$1.49

SCREW, TAPPING (4X12)

93903-34380

$2.18
