Partiron

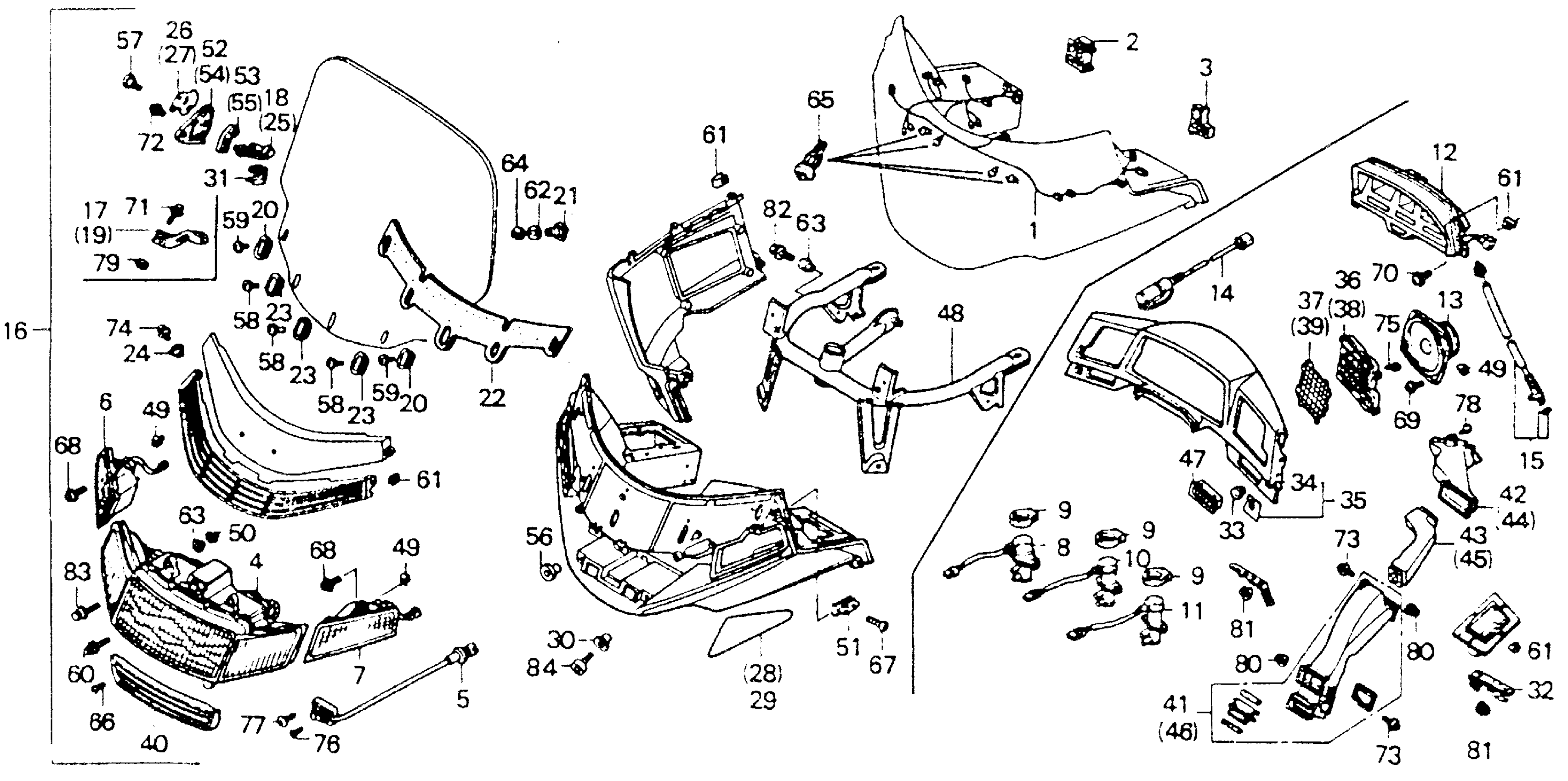

Honda GL1500SEA (92) GOLD WING SE, USA, VIN# 1HFSC223-NA400001 FAIRING SET 92 Diagram

#

Description
Price

1

SUB-HARNESS, FAIRING

32105-MY4-000

Unavailable

2

HOLDER, R. CONNECTOR

32120-MN5-003

Unavailable

3

HOLDER, L. CONNECTOR

32121-MN5-003

Unavailable

4

HEADLIGHT ASSY. (12V 60/55W)

33101-MN5-053

Unavailable

5

ADJUSTER ASSY., HEADLIGHT

33140-MT8-770

Unavailable

6

TURN SIGNAL ASSY., R. FR. (12V 23/8W) This part replaces 33400-MN5-013.

33400-MN5-023

Unavailable

6

TURN SIGNAL ASSY., R. FR. (12V 23/8W)

33400-MN5-023

Unavailable

7

TURN SIGNAL ASSY., L. FR. (12V 23/8W) This part replaces 33450-MN5-003.

33450-MN5-013

Unavailable

7

TURN SIGNAL ASSY., L. FR. (12V 23/8W)

33450-MN5-013

Unavailable

8

VALVE, AIR IN. CONTROL SOLENOID

36167-MT8-013

Unavailable

9

SUSPENSION, SOLENOID VALVE

36172-MN5-003

$4.58

10

VALVE, AIR JET SOLENOID (2)

36193-MN5-003

Unavailable

11

VALVE, AIR JET SOLENOID (3)

36197-MN5-003

Unavailable

12

METER ASSY., COMBINATION (NOT AVAILABLE)

37100-MT8-781

Unavailable

13

SPEAKER UNIT, FR. This part replaces 39130-MCA-A60.

39130-MCA-A61

$37.12

13

SPEAKER UNIT, FR.

39130-MCA-A61

$37.12

13

SPEAKER UNIT, FR. This part replaces 39130-MT2-003.

39130-MCA-A61

$37.12

14

LEAD, HEADSET JUNCTION

39245-MT2-010

Unavailable

15

CABLE ASSY., SPEEDOMETER

44830-MN5-000

$30.10

16

FAIRING SET *B75L* (TYPE5) (PIGEON BLUE) (NOT AVAILABLE)

64021-MY4-770ZD

Unavailable

17

LEVER, R.

64107-MT8-000

Unavailable

18

PLATE, R. TENSION

64108-MAM-000

Unavailable

18

PLATE, R. TENSION This part replaces 64108-MT8-000.

64108-MAM-000

Unavailable

19

LEVER, L.

64109-MT8-000

$55.65

20

PLATE B, WINDSCREEN SETTING

64113-MN5-000

Unavailable

21

NUT, WINDSCREEN SETTING

64114-MG9-770

Unavailable

22

RUBBER, SCREEN

64115-MAM-000

$49.28

22

RUBBER, SCREEN This part replaces 64115-MN5-000.

64115-MAM-000

$49.28

23

PLATE, WINDSCREEN SETTING

64116-MN5-000

$5.78

24

COLLAR, SCREEN GARNISH

64117-MW5-000

Unavailable

25

PLATE, L. TENSION

64118-MAM-000

Unavailable

25

PLATE, L. TENSION This part replaces 64118-MT8-000.

64118-MAM-000

Unavailable

26

PLATE, R. LEVER SIDE

64123-MT8-000

Unavailable

27

PLATE, L. LEVER SIDE

64124-MT8-000

Unavailable

28

STRIPE, R. FAIRING (OUTER) (TYPE1)

64202-MY4-770ZA

Unavailable

29

STRIPE, L. FAIRING (OUTER) (TYPE1) (NOT AVAILABLE)

64203-MY4-770ZA

Unavailable

30

COLLAR, FAIRING SETTING

64209-MN5-000

$2.80

31

CLIP, SCREEN GUIDE

64219-MN5-000

$3.36

32

PLATE, R. SHELTER SETTING This part replaces 64234-MW5-000.

64234-MZ3-000

Unavailable

32

PLATE, R. SHELTER SETTING

64234-MZ3-000

Unavailable

35

PANEL, METER (TYPE5)

64241-MT8-770ZD

Unavailable

36

COVER, R. SPEAKER (TYPE5)

64242-MN5-000ZE

Unavailable

37

GRILLE, R. SPEAKER (B75L) (TYPE5)

64243-MN5-000ZE

Unavailable

38

COVER, L. SPEAKER (TYPE5)

64247-MN5-000ZE

Unavailable

39

GRILLE, L. SPEAKER (B75L) (TYPE5)

64248-MN5-000ZE

Unavailable

40

GRILLE, FR.

64270-MW5-770

Unavailable

41

DUCT ASSY., R. (LOWER)

64271-MN5-000

Unavailable

42

DUCT, R. AIR (UPPER)

64275-MN5-000

$40.25

43

DUCT, R. AIR (LOWER)

64278-MN5-000

Unavailable

44

DUCT, L. AIR (UPPER)

64283-MN5-000

$39.01

45

DUCT, L. AIR (LOWER)

64288-MN5-000

Unavailable

46

DUCT ASSY., L. (LOWER)

64289-MN5-000

Unavailable

47

OUTLET, FRESH AIR (B75L) (TYPE5)

64480-MN5-000ZE

Unavailable

48

STAY, COWL

64510-MY4-000

$123.03

49

NUT, CLIP (4MM)

64521-MN5-000

$2.80

50

NUT, CLIP (6MM)

64529-MN5-000

$4.86

52

BASE, R. MIRROR

64531-MN5-000

Unavailable

53

PLATE, R. PIVOT

64532-MT8-000

Unavailable

54

BASE, L. MIRROR

64631-MN5-000

Unavailable

55

PLATE, L. PIVOT

64632-MT8-000

Unavailable

56

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.42

57

SCREW, SPECIAL (6X8) This part replaces 90104-KT8-710.

90104-MJ0-660

$3.86

57

SCREW, SPECIAL (6X8)

90104-MJ0-660

$3.86

58

SCREW, SCREEN SETTING

90107-MN5-000

$2.90

59

SCREW, SCREEN SETTING (6X12)

90107-MT2-000

$3.00

60

BOLT, SPECIAL (6X28)

90112-MN5-000

$5.46

61

NUT, PLATE (5MM)

90305-MN5-000

$5.09

62

WASHER

90501-MT2-000

$1.87

63

WASHER (6MM)

90512-440-980

$2.80

64

E-RING (8MM)

90601-473-003

$2.04

65

CLIP, WIRE

90663-MN5-000

Unavailable

66

SCREW, PAN (4X8)

93500-04008-0G

$0.83

68

SCREW-WASHER (4X12)

93891-04012-07

$1.04

69

SCREW-WASHER (4X12)

93891-04012-08

$1.04

70

SCREW-WASHER (5X16)

93891-05016-07

$1.04

71

SCREW-WASHER (5X22)

93891-05022-07

Unavailable

72

SCREW-WASHER (5X12)

93893-05012-08

$1.22

72

SCREW-WASHER (5X12) This part replaces 93893-05012-18.

93893-05012-08

$1.22

73

SCREW-WASHER (4X12)

93894-04012-08

$1.04

74

SCREW-WASHER (5X12)

93894-05012-08

$0.88

74

SCREW-WASHER (5X12) This part replaces 93894-05012-18.

93894-05012-08

$0.88

75

SCREW, TAPPING (4X12)

93903-24320

$0.83

76

SCREW, TAPPING (4X12)

93903-24380

Unavailable

77

SCREW, TAPPING (6X12)

93903-26180

$1.07

78

SCREW, TAPPING (4X10)

93903-34220

$0.75

79

NUT, HEX. (5MM)

94001-050800S

$0.94

80

NUT, FLANGE (4MM)

94050-04080

$1.13

81

NUT, FLANGE (6MM)

94050-06080

$0.59

82

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

83

BOLT, FLANGE (6X28)

95701-06028-08

$1.99

84

BOLT, SOCKET (6X18)

96600-06018-07

$1.67
