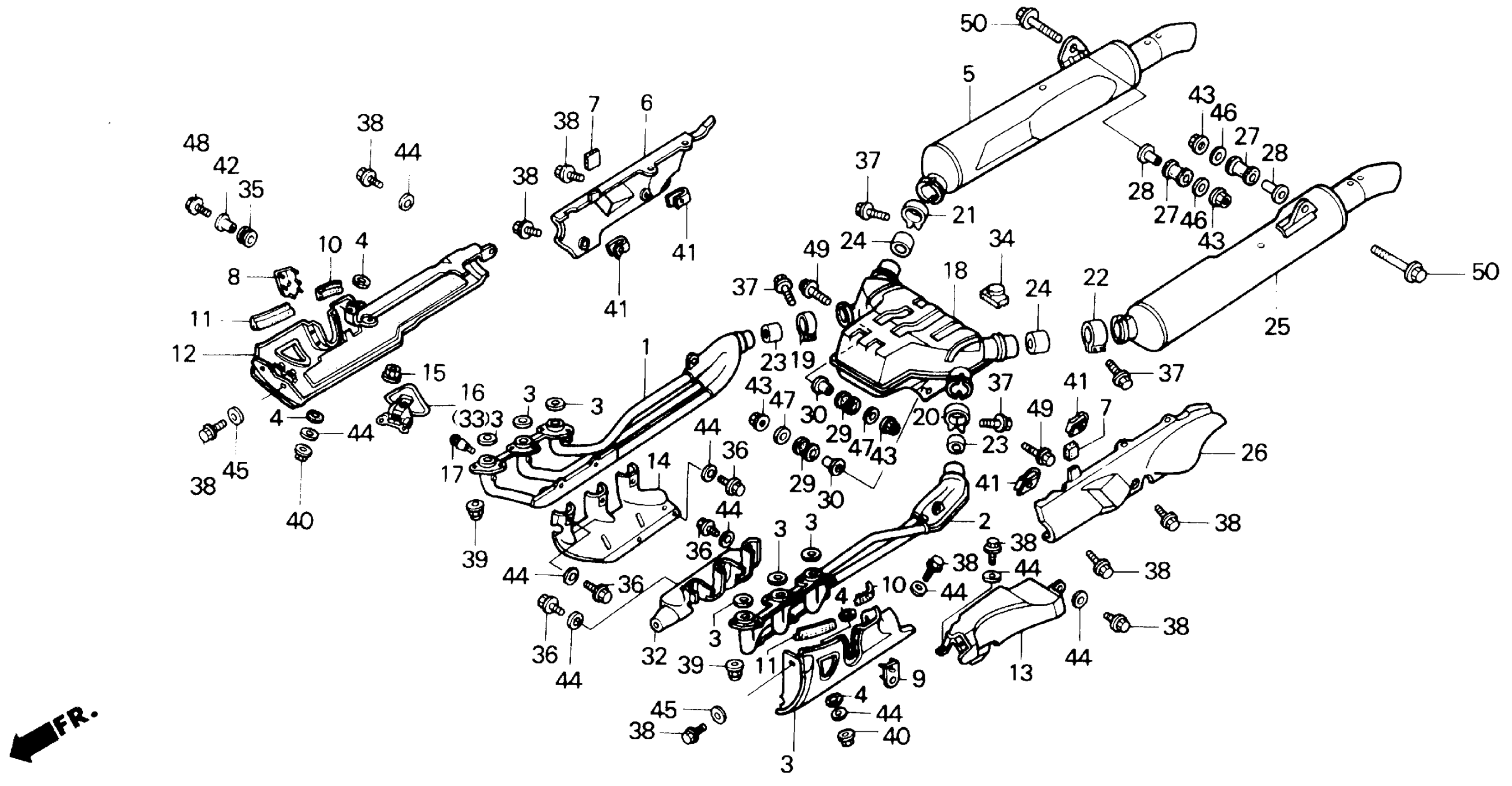

Honda GL1500SEA (91) GOLD WING SE, USA, VIN# 1HFSC223-MA300001 EXHAUST MUFFLER SE Diagram

#

Description
Price

1

PIPE, R. EX. This part replaces 18150-MAM-003.

18150-MAM-A80

Unavailable

1

PIPE, R. EX. This part replaces 18150-MT8-000.

18150-MAM-A80

Unavailable

2

PIPE, L. EX.

18250-MAM-A80

Unavailable

2

PIPE, L. EX. This part replaces 18250-MAM-003.

18250-MAM-A80

Unavailable

2

PIPE, L. EX. This part replaces 18250-MT8-000.

18250-MAM-A80

Unavailable

3

GASKET, EX. PIPE

18291-MN5-650

$3.52

4

GASKET, PROTECTOR

18293-MCA-780

$4.51

4

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.51

5

MUFFLER, R.

18310-MW5-000

Unavailable

6

PROTECTOR, R. CHAMBER (YR127M) (TYPE9) (NOT AVAILABLE)

18315-MN5-003ZJ

Unavailable

7

GROMMET

18316-MN5-000

Unavailable

8

RUBBER, R. HEAT PROTECTOR

18321-MN5-000

$33.49

9

RUBBER, L. HEAT PROTECTOR

18322-MN5-000

$33.30

10

RUBBER A, SEAL

18323-MN5-000

Unavailable

11

RUBBER B, SEAL

18324-MN5-000

Unavailable

12

PROTECTOR, R. EX. PIPE (YR127M) (TYPE9) (NOT AVAILABLE)

18325-MW5-770ZA

Unavailable

13

PROTECTOR, L. RR. EX. PIPE (YR127M) (TYPE9)

18326-MN5-000ZK

Unavailable

14

CHAMBER, R. HOT AIR

18327-MT8-000

Unavailable

15

NUT, FLANGE (5MM)

18334-MT8-770

$1.52

16

LID, R. EX. PIPE PROTECTOR (YR127M) (TYPE9) (NOT AVAILABLE)

18335-MW5-770ZA

Unavailable

17

RUBBER, CUSHION (5MM)

18338-MT8-770

Unavailable

18

CHAMBER, EX.

18340-MN5-003

Unavailable

19

BAND, R. EX. PIPE

18373-MB6-003

Unavailable

20

BAND, L. EX. PIPE

18374-MB6-003

Unavailable

21

BAND, R. MUFFLER

18376-MB4-003

$37.00

22

BAND, L. MUFFLER

18377-MB4-003

$36.96

23

GASKET, MUFFLER

18391-MN5-650

$18.51

24

GASKET, RR. MUFFLER

18392-MJ4-670

$14.41

25

MUFFLER, L.

18410-MW5-000

Unavailable

26

PROTECTOR, L. CHAMBER (YR127M) (TYPE9) (NOT AVAILABLE)

18415-MN5-003ZJ

Unavailable

27

RUBBER, MUFFLER MOUNTING

18421-MN5-000

$4.76

28

COLLAR, MUFFLER MOUNTING

18422-MN5-000

$8.25

29

RUBBER, CHAMBER MOUNTING

18423-MN5-000

Unavailable

30

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$7.67

31

PROTECTOR, L. EX. PIPE (YR127M) (TYPE9)

18425-MW5-770ZA

Unavailable

32

CHAMBER, L. HOT AIR

18427-MT8-000

Unavailable

33

LID, L. EX. PIPE PROTECTOR (YR127M) (TYPE9)

18435-MW5-770ZA

Unavailable

34

RUBBER, STAND STOPPER

50524-MG9-000

$6.28

35

RUBBER, OIL COOLER MOUNTING

61329-MJ6-000

Unavailable

36

BOLT, FLANGE (6X8)

90126-MN5-000

$2.33

37

BOLT, FLANGE (8X37) This part replaces 90129-MN5-000.

95801-08038-00

$2.10

38

BOLT, FLANGE (6X10) This part replaces 90130-MN5-000.

96001-06010-07

$1.48

38

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

39

NUT, SPECIAL (6MM)

90304-HB3-771

$5.64

40

NUT, CAP (6MM)

90308-MT8-000

$2.46

41

NUT, CLIP (6MM)

90344-692-003

$5.30

42

COLLAR, HEADLIGHT BRACKET

90501-MJ6-000

$4.16

43

NUT, FLANGE (8MM)

94050-08080

$0.86

44

WASHER, PLAIN (6MM)

94101-06400

$0.86

45

WASHER, PLAIN (6MM)

94103-06400

$0.90

46

WASHER, PLAIN (8MM)

94103-08200

$0.61

47

WASHER, PLAIN (8MM)

94103-08800

$0.86

48

BOLT, FLANGE (6X18)

95701-06018-08

$1.48

49

BOLT, FLANGE (8X45)

95701-08045-08

$2.01

50

BOLT, FLANGE (8X55)

95701-08055-02

$2.17
