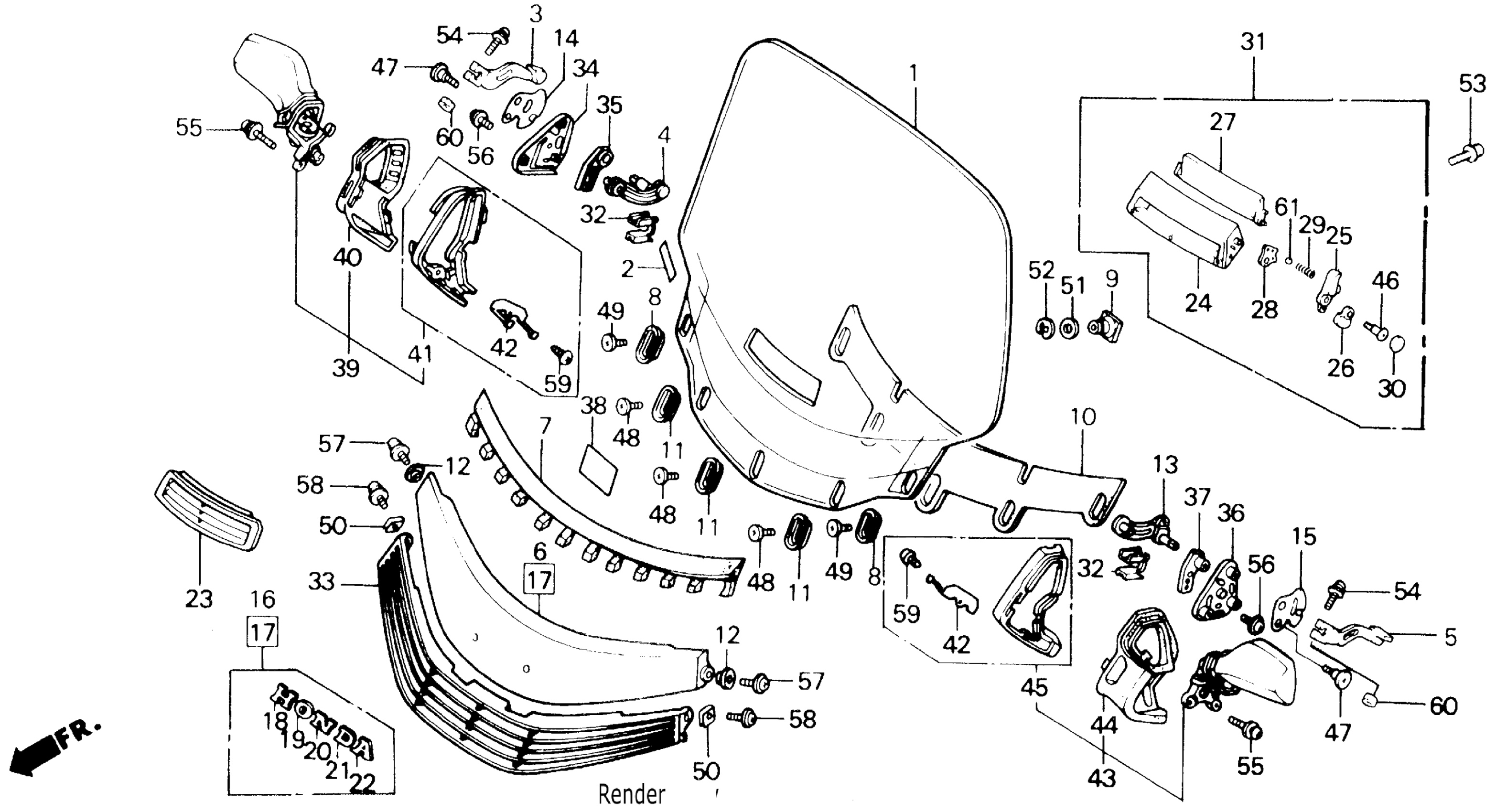

Honda GL1500SEA (90) GOLD WING SE, USA, VIN# 1HFSC223-LA200001 TO 1HFSC223-LA202625 WINDSCREEN SE Diagram

WINDSCREEN

64100-MT8-770

$300.69

LABEL, SCREEN (NOT AVAILABLE)

64101-463-891

Unavailable

LEVER, R.

64107-MT8-000

Unavailable

PLATE, R. TENSION

64108-MAM-000

Unavailable

PLATE, R. TENSION This part replaces 64108-MT8-000.

64108-MAM-000

Unavailable

LEVER, L.

64109-MT8-000

$62.95

GARNISH, SCREEN

64110-MN5-000

Unavailable

SEAL, WINDSCREEN

64111-MT8-000

Unavailable

PLATE B, WINDSCREEN SETTING

64113-MN5-000

Unavailable

NUT, WINDSCREEN SETTING

64114-MG9-770

Unavailable

RUBBER, SCREEN

64115-MAM-000

$55.74

RUBBER, SCREEN This part replaces 64115-MN5-000.

64115-MAM-000

$55.74

PLATE, WINDSCREEN SETTING

64116-MN5-000

$6.22

PLATE, L. TENSION

64118-MAM-000

Unavailable

PLATE, L. TENSION This part replaces 64118-MT8-000.

64118-MAM-000

Unavailable

PLATE, R. LEVER SIDE

64123-MT8-000

Unavailable

PLATE, L. LEVER SIDE

64124-MT8-000

Unavailable

EMBLEM, FR. This part replaces 64125-MAM-000.

64125-MAM-010

Unavailable

EMBLEM, FR. This part replaces 64125-MT8-770.

64125-MAM-010

Unavailable

EMBLEM, FR. (H)

64142-MAM-000

Unavailable

EMBLEM, FR. (H) This part replaces 64142-MT8-770.

64142-MAM-000

Unavailable

EMBLEM, FR. (O)

64143-MT8-770

Unavailable

EMBLEM, FR. (N)

64144-MT8-770

Unavailable

EMBLEM, FR. (D)

64145-MT8-770

Unavailable

EMBLEM, FR. (A)

64146-MAM-000

Unavailable

EMBLEM, FR. (A) This part replaces 64146-MT8-770.

64146-MAM-000

Unavailable

GRILLE, CENTER FRESH AIR This part replaces 64150-MT8-770.

64150-MT8-771

Unavailable

GRILLE, CENTER FRESH AIR

64150-MT8-771

Unavailable

VISOR, CENTER FRESH AIR This part replaces 64155-MT8-770.

64155-MY4-770

Unavailable

VISOR, CENTER FRESH AIR

64155-MY4-770

Unavailable

LEVER, CENTER FRESH AIR

64157-MT8-770

Unavailable

COVER, CENTER FRESH AIR LEVER

64158-MT8-770

Unavailable

LID, CENTER FRESH AIR

64160-MT8-770

Unavailable

PLATE, LEVER CLICK

64166-MT8-770

Unavailable

SPRING, LEVER CLICK

64167-MT8-770

$3.11

PLATE, COVER

64168-MT8-770

$2.49

VISOR ASSY., FRESH AIR This part replaces 64170-MT8-770.

64170-MY4-771

Unavailable

CLIP, SCREEN GUIDE

64219-MN5-000

$3.37

LOUVER, FR. (UPPER)

64260-MN5-000

$25.41

BASE, R. MIRROR

64531-MN5-000

Unavailable

PLATE, R. PIVOT

64532-MT8-000

Unavailable

BASE, L. MIRROR

64631-MN5-000

$17.46

PLATE, L. PIVOT

64632-MT8-000

Unavailable

LABEL, WINDSHIELD

87522-MT2-300

Unavailable

MIRROR ASSY., R. *NH251P* (PACIFIC WHITE)

88110-MT8-000ZC

$409.64

BOOT, R.

88113-MN5-003

$33.41

BASE ASSY., R. BACK MIRROR *NH251P* (PACIFIC WHITE)

88114-MN5-003ZH

Unavailable

PLATE, SET

88119-MN5-000

$5.54

MIRROR ASSY., L. *NH251P* (PACIFIC WHITE)

88120-MT8-000ZC

Unavailable

BOOT, L.

88123-MN5-003

Unavailable

BASE ASSY., L. BACK MIRROR *NH251P* (PACIFIC WHITE)

88124-MN5-003ZH

Unavailable

SCREW, HINGE PATCH

90101-GE0-000

$2.89

SCREW, SPECIAL (6X8) This part replaces 90104-KT8-710.

90104-MJ0-660

$4.15

SCREW, SPECIAL (6X8)

90104-MJ0-660

$4.15

SCREW, SCREEN SETTING

90107-MN5-000

$3.12

SCREW, SCREEN SETTING (6X12)

90107-MT2-000

$3.24

NUT, PLATE (5MM)

90305-MN5-000

$6.02

WASHER

90501-MT2-000

$1.86

E-RING (8MM)

90601-473-003

$2.25

SCREW-WASHER (4X12)

93891-04012-07

$1.49

SCREW-WASHER (5X22)

93891-05022-07

Unavailable

SCREW-WASHER (5X28)

93891-05028-08

$1.49

SCREW-WASHER (5X12)

93893-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93893-05012-18.

93893-05012-08

$1.49

SCREW-WASHER (5X12)

93894-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93894-05012-18.

93894-05012-08

$1.49

SCREW-WASHER (5X16)

93894-05016-07

$1.49

SCREW, TAPPING (4X10)

93901-24280

$1.49

NUT, HEX. (5MM)

94001-050800S

$1.49

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
