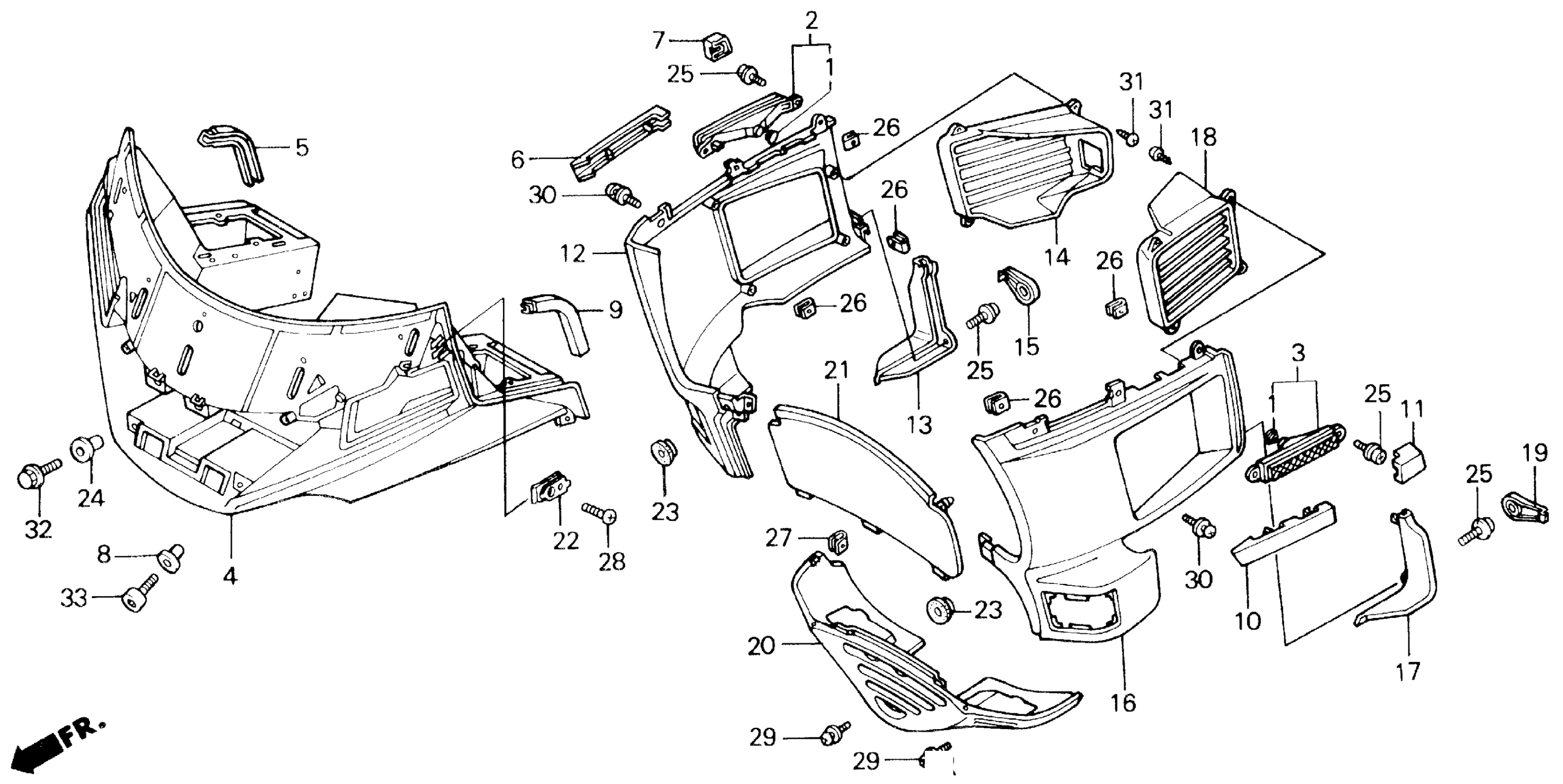

Honda GL1500SEA (90) GOLD WING SE, USA, VIN# 1HFSC223-LA200001 TO 1HFSC223-LA202625 FAIRING Diagram

GROMMET

33710-MM5-711

Unavailable

REFLECTOR, R. FR. REFLEX This part replaces 33740-MN5-013.

33740-MAM-A62

Unavailable

REFLECTOR SET, FR. REFLEX

33745-MAM-A62

$34.54

REFLECTOR SET, FR. REFLEX This part replaces 33745-MN5-013.

33745-MAM-A62

$34.54

FAIRING *NH251P* (TYPE1) (WL) (PACIFIC WHITE)

64200-MT8-770ZA

Unavailable

MOLDING, R. COWL TRIM *NH251P* (PACIFIC WHITE) (NOT AVAILABLE)

64204-MN5-000ZH

Unavailable

MOLDING, R. FR. SIDE

64205-MN5-000

$13.23

MOLDING, R. RR. SIDE

64206-MN5-000

$15.83

COLLAR, FAIRING SETTING

64209-MN5-000

$2.97

MOLDING, L. COWL TRIM *NH251P* (PACIFIC WHITE) (NOT AVAILABLE)

64214-MN5-000ZH

Unavailable

MOLDING, L. FR. SIDE

64215-MN5-000

$13.37

MOLDING, L. RR. SIDE

64216-MN5-000

$15.84

COWL, R. (LOWER) *NH251P* (PACIFIC WHITE)

64280-MT8-770ZA

Unavailable

DEFLECTOR, R. SIDE *NH251P* (PACIFIC WHITE)

64284-MN5-000ZH

Unavailable

LOUVER, R. SIDE COWL (LOWER)

64285-MN5-000

$161.52

CAP, R. DEFLECTOR *NH251P* (PACIFIC WHITE)

64286-MT2-000ZG

Unavailable

COWL, L. (LOWER) *NH251P* (PACIFIC WHITE)

64290-MT8-770ZA

Unavailable

DEFLECTOR, L. SIDE *NH251P* (PACIFIC WHITE)

64294-MN5-000ZH

Unavailable

LOUVER, L. SIDE COWL (LOWER)

64295-MN5-000

$156.84

CAP, L. DEFLECTOR *NH251P* (PACIFIC WHITE)

64296-MT2-000ZG

Unavailable

COWL, FR. (LOWER) *NH253M* (OCEAN GRAY METALLIC) This part replaces 64300-MN5-000ZH.

64300-MN5-000YP

Unavailable

PANEL, FR. (LOWER) *NH251P* (PACIFIC WHITE)

64500-MN5-000ZH

Unavailable

GROMMET, SIDE COVER

83601-MN5-000

$2.92

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.71

BOLT, RECESSED (5X16)

90125-MT2-000

$4.06

NUT, PLATE (5MM)

90305-MN5-000

$6.02

NUT, SPRING (5MM)

90320-GE2-760

$1.88

SCREW-WASHER (5X14)

93891-05014-07

$1.49

SCREW-WASHER (5X20)

93894-05020-08

$1.49

SCREW, TAPPING (4X12)

93903-34380

$2.18

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, SOCKET (6X18)

96600-06018-07

$1.84
