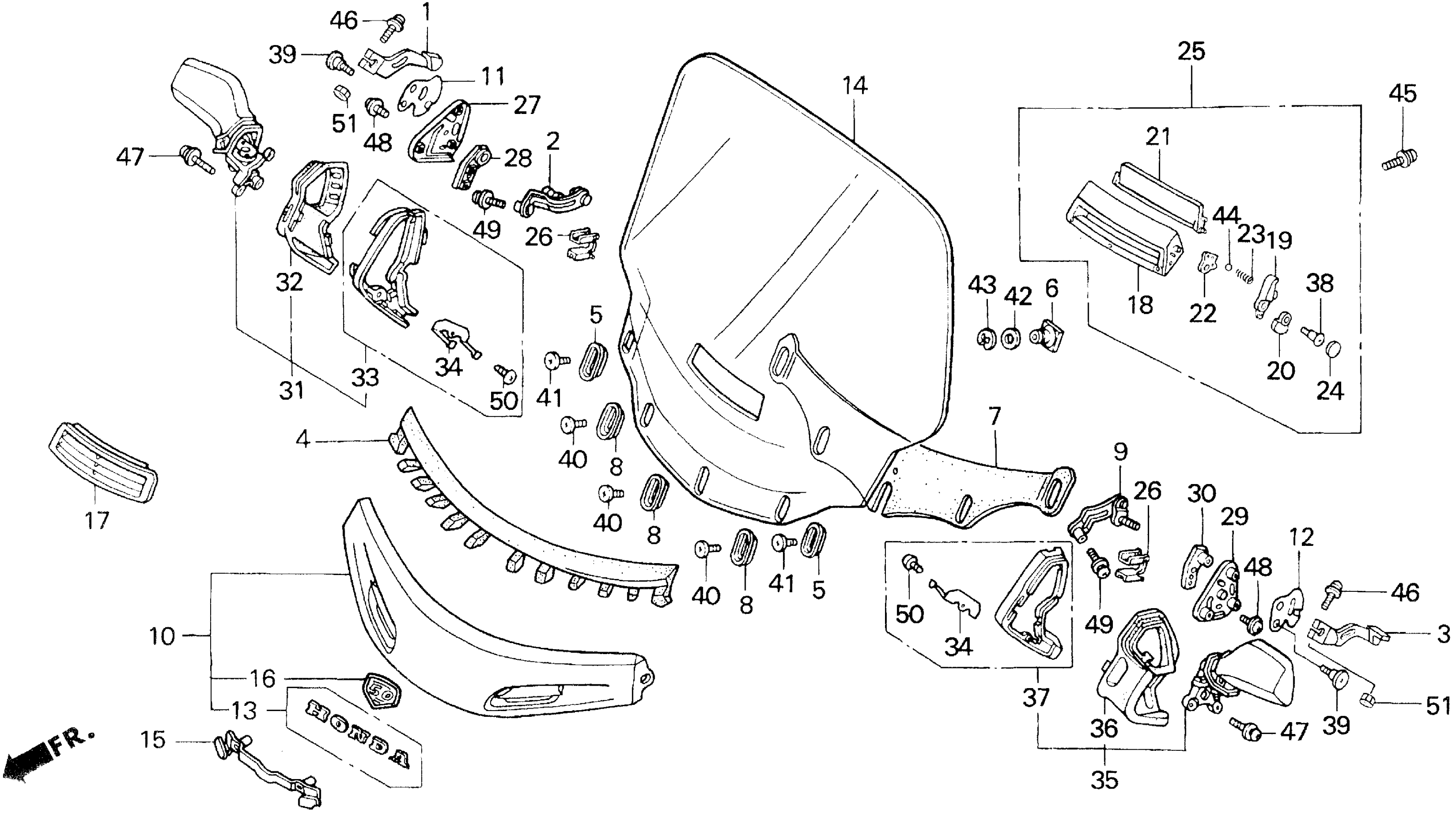

Honda GL1500SEA (00) GOLD WING SE, USA, VIN# 1HFSC223-YA200001 SE WINDSCREEN Diagram

#

Description
Price

1

LEVER, R.

64107-MT8-000

Unavailable

2

PLATE, R. TENSION

64108-MAM-000

Unavailable

3

LEVER, L.

64109-MT8-000

$62.95

4

SEAL, WINDSCREEN

64111-MAM-000

Unavailable

5

PLATE B, WINDSCREEN SETTING

64113-MN5-000

Unavailable

6

NUT, WINDSCREEN SETTING

64114-MG9-770

Unavailable

7

RUBBER, SCREEN

64115-MAM-000

$55.74

8

PLATE, WINDSCREEN SETTING

64116-MN5-000

$6.22

9

PLATE, L. TENSION

64118-MAM-000

Unavailable

10

GARNISH SET, SCREEN (WL)

64120-MAM-A00

Unavailable

11

PLATE, R. LEVER SIDE

64123-MT8-000

Unavailable

12

PLATE, L. LEVER SIDE

64124-MT8-000

Unavailable

13

EMBLEM, FR. This part replaces 64125-MAM-000.

64125-MAM-010

Unavailable

14

WINDSCREEN

64130-MAM-771

$413.38

15

STAY, GARNISH SETTING

64135-MAM-000

$67.25

17

GRILLE, CENTER FRESH AIR

64150-MT8-771

Unavailable

18

VISOR, CENTER FRESH AIR

64155-MY4-770

Unavailable

19

LEVER, CENTER FRESH AIR

64157-MT8-770

Unavailable

20

COVER, CENTER FRESH AIR LEVER

64158-MT8-770

Unavailable

21

LID, CENTER FRESH AIR

64160-MT8-770

Unavailable

22

PLATE, LEVER CLICK

64166-MT8-770

Unavailable

23

SPRING, LEVER CLICK

64167-MT8-770

$3.11

24

PLATE, COVER

64168-MT8-770

$2.49

25

VISOR ASSY., FRESH AIR

64170-MY4-771

Unavailable

26

CLIP, SCREEN GUIDE

64219-MN5-000

$3.37

27

BASE, R. MIRROR

64531-MN5-000

Unavailable

28

PLATE, R. PIVOT

64532-MT8-000

Unavailable

29

BASE, L. MIRROR

64631-MN5-000

$17.46

30

PLATE, L. PIVOT

64632-MT8-000

Unavailable

31

MIRROR ASSY., R. *R176C* (CANDY SPECTRA RED)

88110-MT8-000ZJ

Unavailable

31

MIRROR ASSY., R. *NH326P* (PEARL GLACIER WHITE)

88110-MT8-000ZM

Unavailable

31

MIRROR ASSY., R. *PB255P* (PEARL CORONADO BLUE)

88110-MT8-000ZN

$409.64

32

BOOT, R.

88113-MN5-003

$33.41

33

BASE ASSY., R. BACK MIRROR *NH1Z* (BLACK-Z)

88114-MN5-003ZJ

Unavailable

33

BASE ASSY., R. BACK MIRROR *R176C* (CANDY SPECTRA RED)

88114-MN5-003ZP

$123.77

33

BASE ASSY., R. BACK MIRROR *NH326P* (PEARL GLACIER WHITE)

88114-MN5-003ZT

$108.61

33

BASE ASSY., R. BACK MIRROR *PB255P* (PEARL CORONADO BLUE)

88114-MN5-003ZU

Unavailable

34

PLATE, SET

88119-MN5-000

$5.54

35

MIRROR ASSY., L. *NH1Z* (BLACK-Z)

88120-MT8-000ZF

Unavailable

35

MIRROR ASSY., L. *R176C* (CANDY SPECTRA RED)

88120-MT8-000ZJ

Unavailable

35

MIRROR ASSY., L. *NH326P* (PEARL GLACIER WHITE)

88120-MT8-000ZM

$359.02

35

MIRROR ASSY., L. *PB255P* (PEARL CORONADO BLUE)

88120-MT8-000ZN

$409.64

36

BOOT, L.

88123-MN5-003

Unavailable

37

BASE ASSY., L. BACK MIRROR *NH1Z* (BLACK-Z)

88124-MN5-003ZJ

$116.41

37

BASE ASSY., L. BACK MIRROR *R176C* (CANDY SPECTRA RED)

88124-MN5-003ZP

$121.64

37

BASE ASSY., L. BACK MIRROR *NH326P* (PEARL GLACIER WHITE)

88124-MN5-003ZT

$111.85

37

BASE ASSY., L. BACK MIRROR *PB255P* (PEARL CORONADO BLUE)

88124-MN5-003ZU

$108.61

38

SCREW, HINGE PATCH

90101-GE0-000

$2.89

39

SCREW, SPECIAL (6X8) This part replaces 90104-KT8-710.

90104-MJ0-660

$4.15

40

SCREW, SCREEN SETTING

90107-MN5-000

$3.12

41

SCREW, SCREEN SETTING (6X12)

90107-MT2-000

$3.24

42

WASHER

90501-MT2-000

$1.86

43

E-RING (8MM)

90601-473-003

$2.25

44

BALL, STEEL (#6) (3/16)

91101-MAM-A80

$1.49

45

SCREW-WASHER (4X12)

93891-04012-07

$1.49

46

SCREW-WASHER (5X22)

93891-05022-07

Unavailable

47

SCREW-WASHER (5X28)

93891-05028-08

$1.49

48

SCREW-WASHER (5X12)

93893-05012-08

$1.49

48

SCREW-WASHER (5X12) This part replaces 93893-05012-18.

93893-05012-08

$1.49

49

SCREW-WASHER (5X12)

93894-05012-08

$1.49

49

SCREW-WASHER (5X12) This part replaces 93894-05012-18.

93894-05012-08

$1.49

50

SCREW, TAPPING (4X10)

93901-24280

$1.49

51

NUT, HEX. (5MM)

94001-050800S

$1.49
