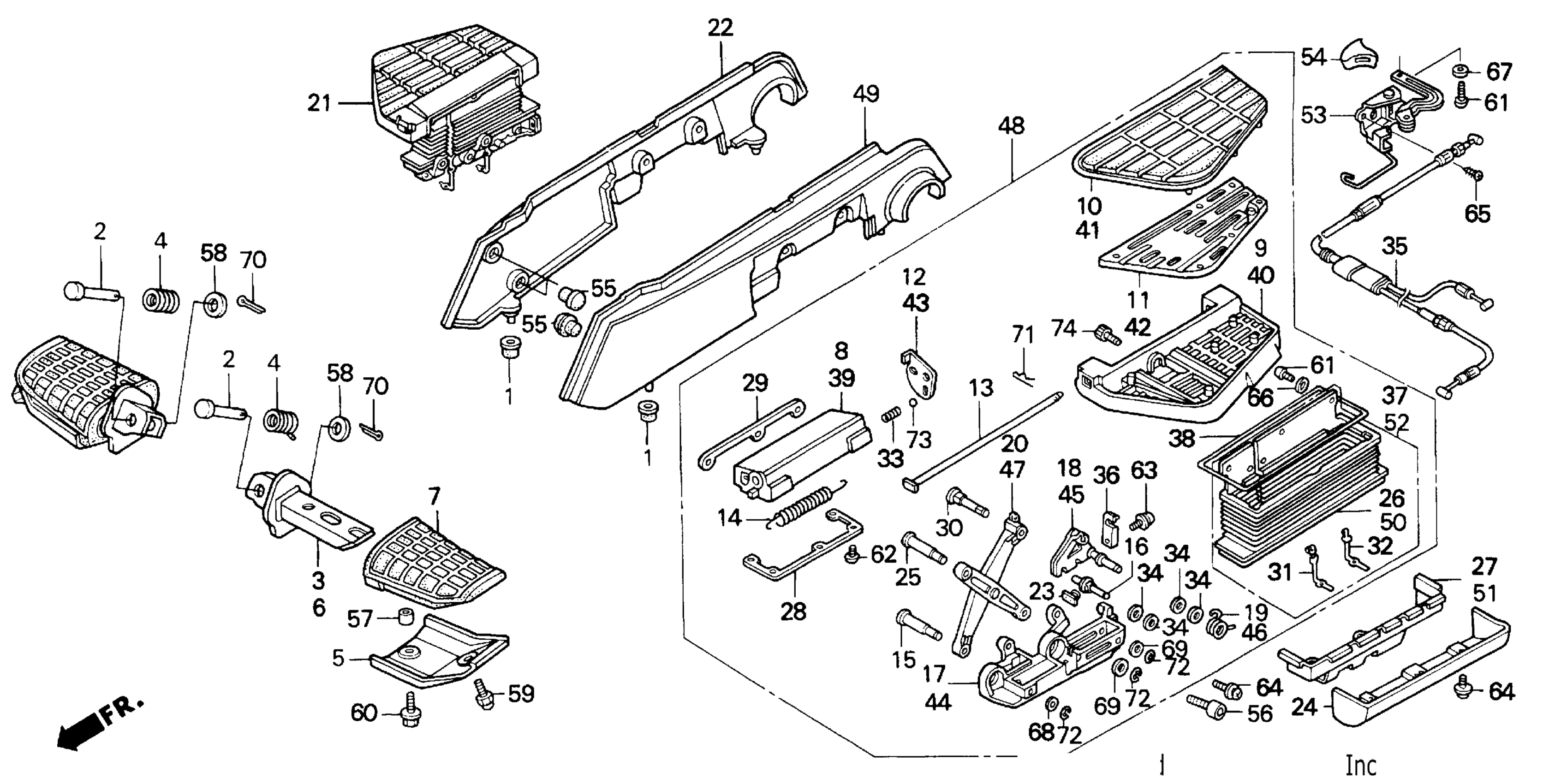

Honda GL1500SEA (00) GOLD WING SE, USA, VIN# 1HFSC223-YA200001 SE STEP Diagram

RUBBER, RADIATOR MOUNTING

19113-MB1-870

$3.47

PIN, STEP PIVOT

50603-MN5-000

Unavailable

BAR, R. STEP

50612-MT2-000

$57.36

SPRING, STEP RETURN

50617-MB1-700

$5.80

COVER, STEP (LOWER)

50619-MN5-000

$25.90

BAR, L. STEP

50642-MT2-000

$57.36

RUBBER, MAIN STEP

50661-MN5-000

$20.38

HOLDER, R. PILLION STEP

50715-MT8-771

Unavailable

PLATE, R. PILLION STEP

50716-MT8-771

Unavailable

RUBBER, R. PILLION STEP

50718-MN5-000

$24.48

PLATE, R. FOOT

50719-MN5-000

Unavailable

PLATE, R. PILLION STEP CLICK

50720-MT8-770

$7.20

PIN, PILLION STEP

50721-MT8-770

Unavailable

SPRING, ADJUSTER

50722-MT8-770

Unavailable

PIN (6MM) (A)

50723-MT8-770

Unavailable

PIN (6MM) (B)

50724-MT8-770

Unavailable

BRACKET, R. PILLION STEP

50725-MT8-771

Unavailable

ARM, R. STOPPER

50726-MT8-770

Unavailable

SPRING, R. STOPPER ARM

50727-MT8-770

Unavailable

LINK, R. PILLION STEP

50729-MAM-A10

Unavailable

STEP ASSY., R. ADJUSTABLE PILLION

50730-MAM-A10

Unavailable

COVER, R. PILLION STEP HOLDER

50731-MW5-770

$64.26

RUBBER, STOPPER

50732-MT8-770

Unavailable

COVER, PILLION STEP BRACKET

50733-MT8-770

$39.02

PIN (C)

50734-MT8-770

Unavailable

COVER, R. PILLION STEP LINK

50735-MT8-771

Unavailable

HOOK, R. LINK COVER SETTING

50736-MT8-770

Unavailable

PLATE, LINK COVER

50737-MT8-770

Unavailable

PLATE B, R. LINK COVER SETTING

50739-MT8-770

Unavailable

PIN (D)

50741-MT8-770

Unavailable

HOOK A, LINK COVER

50742-MT8-770

Unavailable

HOOK B, LINK COVER

50743-MT8-770

Unavailable

SPRING, PILLION STEP ADJUST CLICK

50746-MT8-770

$2.13

WASHER, THRUST (8MM)

50747-MT8-770

Unavailable

CABLE, PILLION STEP ADJUSTING

50750-MT8-770

Unavailable

STAY, CABLE

50751-MT8-770

Unavailable

COVER ASSY., R. PILLION STEP

50755-MT8-770

Unavailable

RING, LINK COVER

50756-MT8-770

Unavailable

HOLDER, L. PILLION STEP

50815-MT8-771

Unavailable

PLATE, L. PILLION STEP

50816-MT8-771

Unavailable

RUBBER, L. PILLION STEP

50818-MN5-000

$27.82

PLATE, L. FOOT

50819-MN5-000

$21.21

PLATE, L. PILLION STEP CLICK

50820-MT8-770

$7.20

BRACKET, L. PILLION STEP

50825-MT8-771

Unavailable

ARM, L. STOPPER

50826-MT8-770

Unavailable

SPRING, L. STOPPER ARM

50827-MT8-770

$4.39

LINK, L. PILLION STEP

50829-MAM-A10

Unavailable

STEP ASSY., L. ADJUSTABLE PILLION

50830-MAM-A10

Unavailable

COVER, L. PILLION STEP HOLDER

50831-MW5-770

$68.15

COVER, L. PILLION STEP LINK

50835-MT8-771

Unavailable

HOOK, L. LINK COVER SETTING

50836-MT8-770

Unavailable

COVER ASSY., L. PILLION STEP

50855-MT8-770

Unavailable

LEVER, PILLION STEP REMOTE

74882-MT8-771

Unavailable

KNOB, PILLION STEP REMOTE LEVER

74885-MAM-D80

$75.98

CAP, RR. BUMPER

84103-443-611

$4.23

BOLT, SOCKET

90109-MB0-000

Unavailable

BOLT, SOCKET This part replaces 90157-MB1-000.

90109-MB0-000

Unavailable

COLLAR, RR. SPLASH GUARD

90325-197-000

$3.41

WASHER (8MM)

90451-KAF-000

Unavailable

BOLT, CAP (6X8)

92501-06008-0B

Unavailable

BOLT-WASHER (6X20)

93403-06020-00

$2.00

SCREW, PAN (3X6)

93500-03006-0A

$1.49

SCREW, PAN (3X8)

93500-03008-0A

$1.49

SCREW-WASHER (5X10)

93891-05010-07

$1.49

SCREW-WASHER (5X10)

93891-05010-08

$1.49

SCREW, TAPPING (4X16)

93903-24420

$1.49

WASHER, PLAIN (3MM)

94101-03000

$1.49

WASHER, PLAIN (3MM)

94101-03700

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94102-08800

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

PIN, LOCK (8MM)

94251-08000

$1.49

E-RING (5MM)

94540-05018

$2.67

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

BOLT, SOCKET (6X16)

96600-06016-08

$1.74
