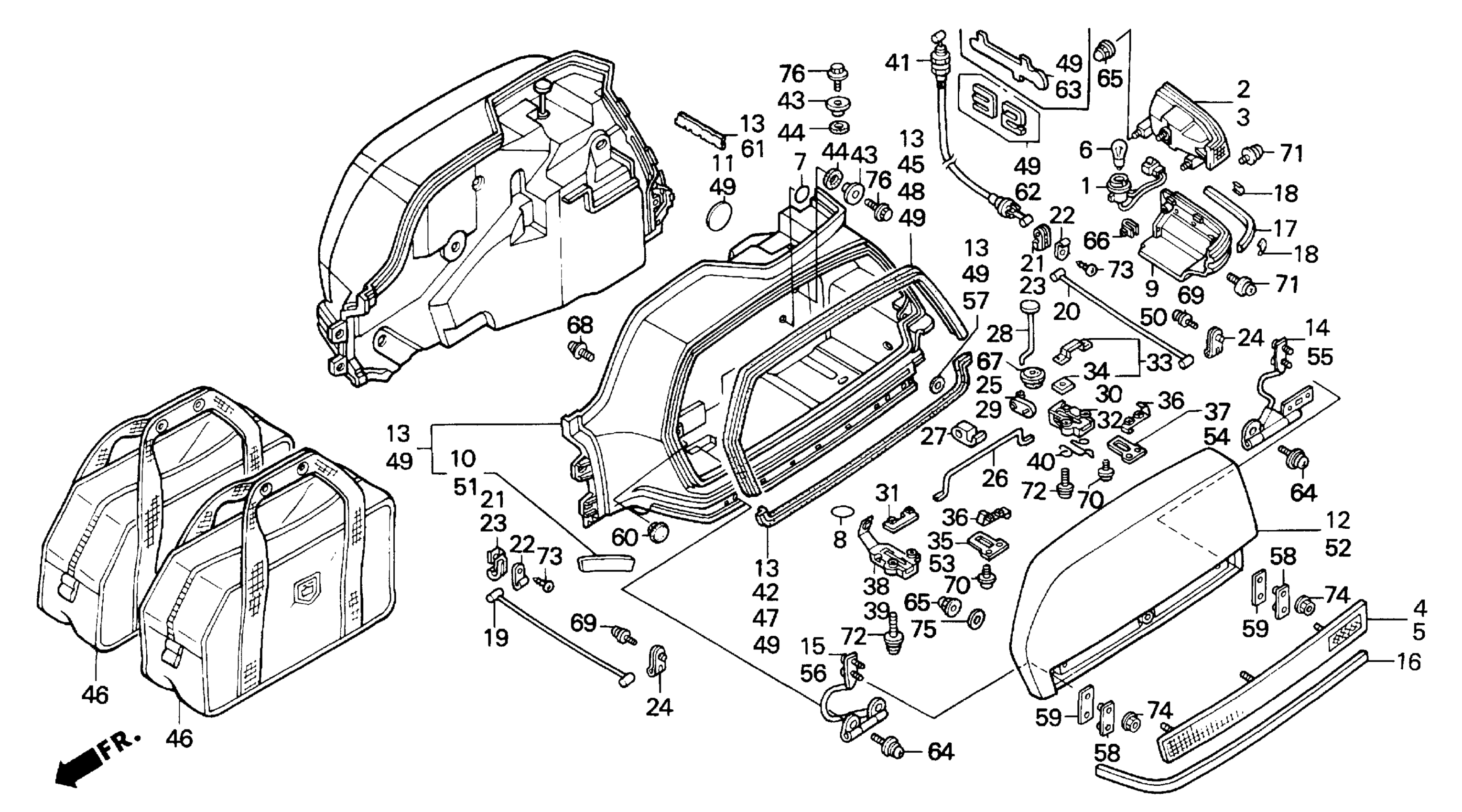

Honda GL1500SEA (00) GOLD WING SE, USA, VIN# 1HFSC223-YA200001 SADDLEBAG Diagram

#

Description
Price

1

SOCKET, TAILLIGHT

33503-MN5-003

$16.64

2

HOUSING, R. TAILLIGHT

33510-MAM-A82

$77.77

3

HOUSING, L. TAILLIGHT

33560-MAM-A82

Unavailable

4

REFLECTOR, R. SADDLEBAG REFLEX

33750-MAM-A62

$49.93

5

REFLECTOR, L. SADDLEBAG REFLEX

33755-MAM-A62

Unavailable

6

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-SA5-671

$2.94

7

SEAL, DOOR HOLE (30MM) (CIRCLE)(BLACK)

75826-605-300

$3.35

7

SEAL, DOOR HOLE (30MM) (BLACK)

91619-SE0-000

$3.35

8

SEAL, INSIDE PANEL (15MM)

75826-634-300

$4.21

9

COVER, R. SADDLEBAG (LOWER) *NH1Z* (BLACK-Z)

81214-MN5-000ZJ

$239.93

9

COVER, R. SADDLEBAG (LOWER) *R176C* (CANDY SPECTRA RED)

81214-MN5-000ZP

Unavailable

9

COVER, R. SADDLEBAG (LOWER) *NH326P* (PEARL GLACIER WHITE)

81214-MN5-000ZQ

$354.02

9

COVER, R. SADDLEBAG (LOWER) *PB255P* (PEARL CORONADO BLUE)

81214-MN5-000ZS

$614.46

10

TAPE, R. SADDLEBAG

81215-MN5-300

Unavailable

11

SEAL, SADDLEBAG HOLE

81217-MT2-300

$4.93

12

LID SET, R. SADDLEBAG *NH1Z* (WL) (BLACK-Z) (NA USE ALT:81220-MT8-000ZD)

81225-MAM-L70ZA

Unavailable

12

LID SET, R. SADDLEBAG (TYPE7) (WL)

81225-MAM-L70ZF

Unavailable

12

LID SET, R. SADDLEBAG (TYPE17) (WL)

81225-MAM-T10ZA

Unavailable

12

LID SET, R. SADDLEBAG (TYPE18) (WL)

81225-MAM-T10ZB

Unavailable

13

SADDLEBAG SET, R. *NH1Z* (BLACK-Z) (PART IS DISCONTINUED, PLEASE USE P/N 81224-MAM-D80ZF) (NOT AVAILABLE)

81224-MAM-L70ZA

Unavailable

13

SADDLEBAG SET, R. (TYPE7)

81224-MAM-L70ZF

Unavailable

13

SADDLEBAG SET, R. (TYPE17) (WL)

81224-MAM-T10ZA

Unavailable

13

SADDLEBAG SET, R. (TYPE18) (WL)

81224-MAM-T10ZB

Unavailable

14

HINGE, R. RR. SADDLEBAG

81230-MN5-010

$151.90

15

HINGE, R. FR. SADDLEBAG

81235-MN5-010

$95.90

16

MOLDING, SADDLEBAG

81240-MN5-000

Unavailable

17

MOLDING, SADDLEBAG COVER (LOWER)

81242-MN5-000

$22.29

18

CLIP, MOLDING

81247-MN5-000

$7.95

19

STOPPER, FR. SADDLEBAG LID

81251-MN5-000

$2.05

20

STOPPER, RR. SADDLEBAG LID

81252-MN5-000

$1.92

21

STAY, L. LID STOPPER (A)

81253-MN5-000

Unavailable

22

GUIDE, CABLE STOPPER

81255-MN5-000

$2.59

23

STAY, R. LID STOPPER (A)

81256-MN5-000

Unavailable

24

STAY C, LID STOPPER

81257-MT2-000

Unavailable

25

PLATE, R. CAM EMERGENCY ROD (MITSUI)

81309-MZ3-003

Unavailable

26

ROD, SADDLEBAG OPENER (MITSUI)

81316-MN5-003

Unavailable

27

SNAP, OPENER ROD (MITSUI)

81317-MN5-003

$2.43

28

ROD, EMERGENCY PUSH

81318-MN5-003

Unavailable

29

PLATE, L. CAM EMERGENCY ROD (MITSUI)

81319-MZ3-003

Unavailable

30

CATCH, R. RR. SADDLEBAG

81320-MT8-003

Unavailable

31

PLATE A, SADDLEBAG CATCH SETTING

81321-MN5-000

Unavailable

32

CATCH, L. RR. SADDLEBAG

81322-MT8-003

$37.28

33

PLATE B, SADDLEBAG CATCH SET

81323-MN5-010

Unavailable

34

GASKET, PLATE

81324-MN5-300

Unavailable

35

STRIKER, R. FR. SADDLEBAG

81326-MN5-010

Unavailable

36

PLATE, STRIKER SETTING

81327-MN5-000

$3.67

37

STRIKER, R. RR. SADDLEBAG

81328-MN5-000

$9.16

38

CATCH, R. FR. SADDLEBAG

81331-MT8-003

Unavailable

39

CATCH, L. FR. SADDLEBAG

81332-MT8-003

$41.43

40

SPRING, SADDLEBAG LID STOPPER

81333-MN5-000

Unavailable

41

CABLE A, SADDLEBAG OPENER

81345-MN5-000

Unavailable

42

RUBBER, R. SADDLEBAG SEAL (A)

81352-MT8-010

$30.75

43

COLLAR, SADDLEBAG SETTING

81355-MN5-000

$6.60

44

RUBBER, BAG MOUNT

81356-MN5-000

$3.43

45

RUBBER, R. SADDLEBAG SEAL (D)

81357-MT8-010

$30.07

46

BAG, SADDLEBAG (INNER)

81365-MAM-A80

Unavailable

47

RUBBER, L. SADDLEBAG SEAL (A)

81382-MT8-010

$27.57

48

RUBBER, L. SADDLEBAG SEAL (D)

81387-MT8-010

$30.07

49

SADDLEBAG SET, L. *NH1Z* (WL) (BLACK-Z) (PART IS DISCONTINUED. PLEASE USE P/N 81424-MAM-D80ZF) (NOT AVAILABLE)

81424-MAM-L70ZA

Unavailable

49

SADDLEBAG SET, L. (TYPE7) (WL)

81424-MAM-L70ZF

Unavailable

49

SADDLEBAG SET, L. (TYPE17) (WL)

81424-MAM-T10ZA

Unavailable

49

SADDLEBAG SET, L. (TYPE18) (WL)

81424-MAM-T10ZB

Unavailable

50

COVER, L. SADDLEBAG (LOWER) *NH1Z* (BLACK-Z)

81414-MN5-000ZJ

$228.07

50

COVER, L. SADDLEBAG (LOWER) *R176C* (CANDY SPECTRA RED)

81414-MN5-000ZP

$222.64

50

COVER, L. SADDLEBAG (LOWER) *NH326P* (PEARL GLACIER WHITE)

81414-MN5-000ZQ

Unavailable

50

COVER, L. SADDLEBAG (LOWER) *PB255P* (PEARL CORONADO BLUE)

81414-MN5-000ZS

Unavailable

51

TAPE, L. SADDLEBAG

81415-MN5-300

$4.02

52

LID SET, L. SADDLEBAG *NH1Z* (WL) (BLACK-Z) (NOT AVAILABLE)

81425-MAM-L70ZA

Unavailable

52

LID SET, L. SADDLEBAG (TYPE7) (WL)

81425-MAM-L70ZF

Unavailable

52

LID SET, L. SADDLEBAG (TYPE17) (WL)

81425-MAM-T10ZA

Unavailable

52

LID SET, L. SADDLEBAG (TYPE18) (WL)

81425-MAM-T10ZB

Unavailable

53

STRIKER, L. FR. SADDLEBAG

81426-MN5-000

Unavailable

54

STRIKER, L. RR. SADDLEBAG

81428-MN5-000

$7.82

55

HINGE, L. RR. SADDLEBAG

81430-MN5-010

$131.27

56

HINGE, L. FR. SADDLEBAG

81435-MN5-010

$102.13

57

RUBBER, HINGE SEAL (LOWER)

81437-MN5-300

$1.69

58

WASHER, HINGE SETTING

81438-MN5-000

$8.98

59

RUBBER, HINGE SEAL (UPPER)

81439-MN5-000

$5.30

60

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.45

61

EMBLEM, R. RR. (TYPE10) (HONDA)

87111-MAM-L70ZA

Unavailable

61

EMBLEM, R. RR. (TYPE14) (HONDA)

87111-MAM-L70ZE

Unavailable

62

EMBLEM, L. RR. (SE)

87121-MT8-770

$24.52

64

SCREW, HANDLE COVER SETTING

90103-GB6-930

$3.44

65

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

66

NUT, PLATE (5MM)

90305-MN5-000

$6.02

67

GROMMET

90801-MN5-010

$3.99

68

SCREW-WASHER (5X12)

93891-05012-00

$1.49

69

SCREW-WASHER (4X12)

93893-04012-07

$1.49

70

SCREW-WASHER (5X16)

93893-05016-07

$1.49

71

SCREW-WASHER (5X20)

93893-05020-07

$1.49

72

SCREW-WASHER (5X25)

93893-05025-07

$1.49

73

SCREW, TAPPING (4X12)

93903-24380

$1.49

74

NUT, FLANGE (5MM)

94050-05080

$1.49

75

WASHER, PLAIN (5MM)

94103-05700

$1.49

76

BOLT, FLANGE (6X20)

96001-06020-07

$1.49
