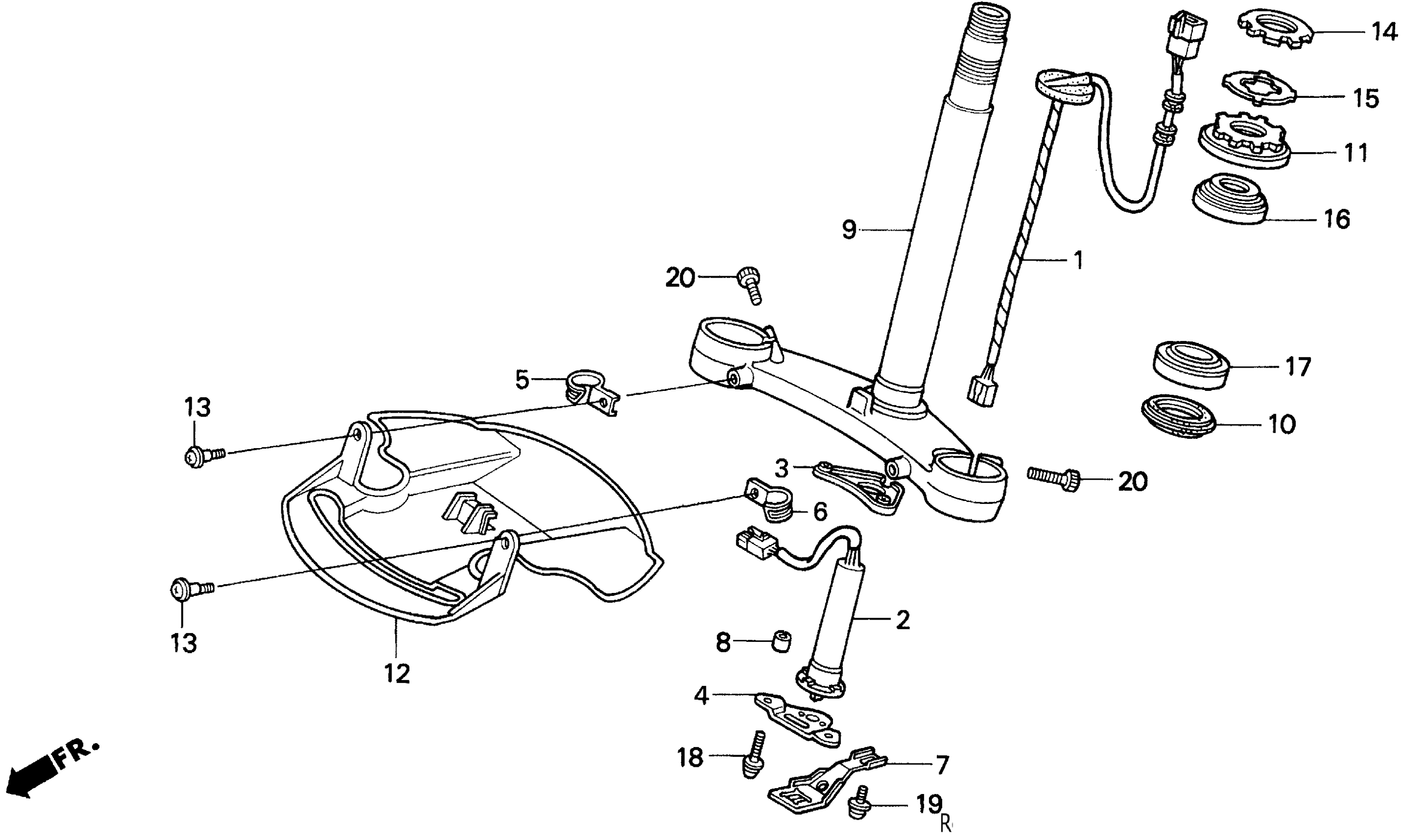

Honda GL1500IA (96) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-TA800001 STEERING STEM Diagram

PLATE, ANGLE SENSOR (LOWER)

35255-MN5-000

Unavailable

CLAMP, R. FR. BRAKE HOSE

45156-MN5-000

Unavailable

CLAMP, L. FR. BRAKE HOSE

45157-MN5-000

Unavailable

COLLAR, HANDLE COVER

52156-GB0-900

Unavailable

STEM SUB-ASSY., STEERING This part replaces 53200-MN5-000.

53219-MAM-A80

$203.38

STEM SUB-ASSY., STEERING

53219-MAM-A80

$203.38

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

PROTECTOR, WIND

61403-MT8-010

Unavailable

SCREW, SPECIAL (5X12)

90105-MB1-000

$2.92

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

BEARING, HEAD PIPE (LOWER)

91016-371-000

$55.12

SCREW-WASHER (5X16)

93893-05016-07

$1.49

BOLT, SOCKET (10X25)

96700-10025-17

Unavailable
