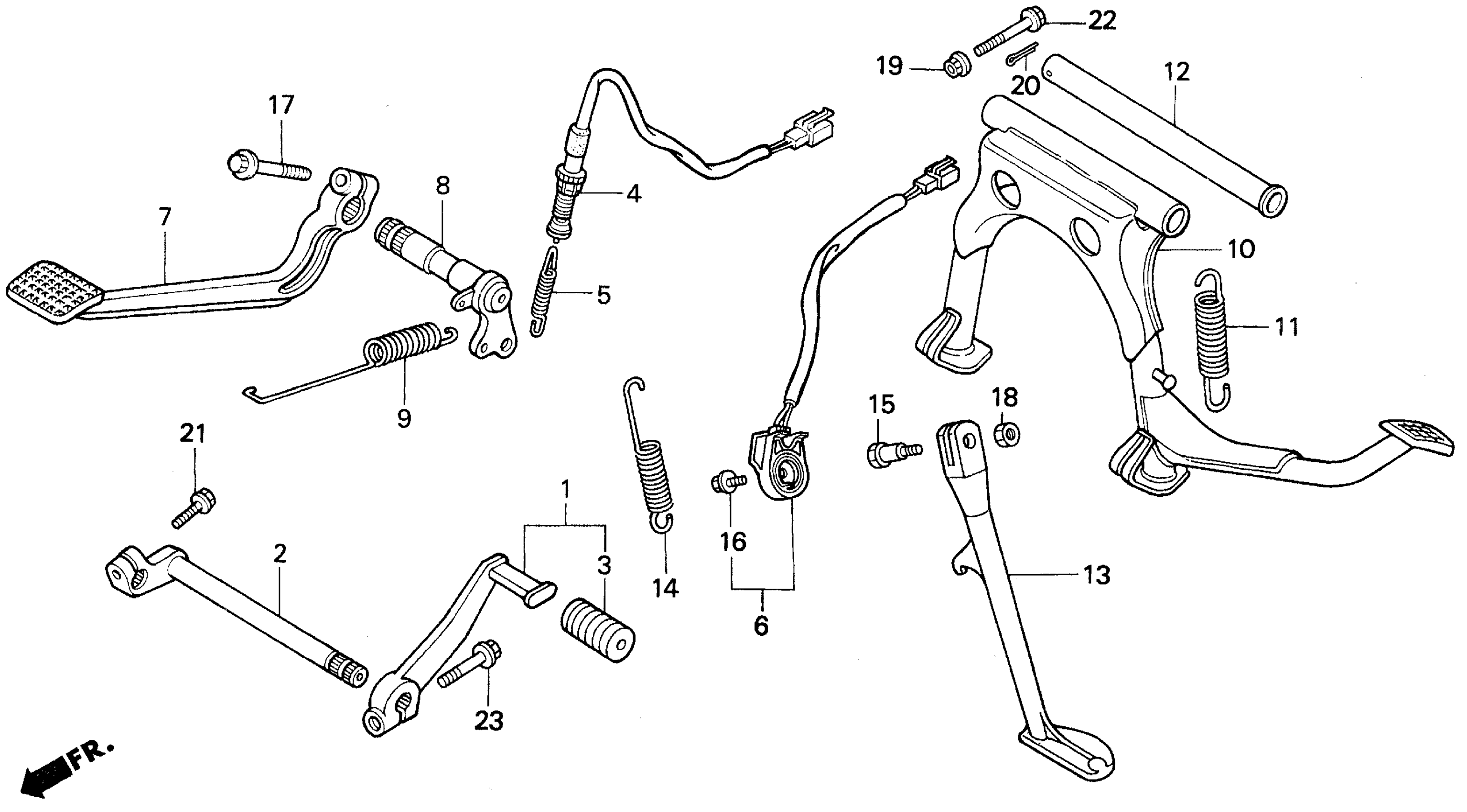

Honda GL1500IA (96) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-TA800001 PEDAL Diagram

#

Description
Price

1

PEDAL ASSY., GEARSHIFT

24710-MT2-000

$74.13

2

ARM, GEARSHIFT

24711-MN5-000

$53.05

3

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

4

SWITCH ASSY., RR. STOP

35350-KA2-405

$16.22

4

SWITCH ASSY., RR. STOP This part replaces 35350-MW5-871.

35350-KA2-405

$16.22

5

SPRING, STOP SWITCH

35357-ME9-000

$4.74

5

SPRING, STOP SWITCH This part replaces 35357-MN5-000.

35357-ME9-000

$4.74

6

SWITCH SET, SIDE STAND

35700-MY4-305

Unavailable

7

PEDAL, RR. BRAKE

46500-MN5-000

$90.97

7

PEDAL, RR. BRAKE This part replaces 46500-MW5-870.

46500-MN5-000

$90.97

8

SPINDLE, RR. BRAKE

46505-MN5-000

Unavailable

9

SPRING, BRAKE PEDAL

46514-MN5-000

Unavailable

10

STAND, MAIN

50500-MW5-000

Unavailable

11

SPRING, MAIN STAND

50510-MT2-000

$8.07

12

PIPE, MAIN STAND PIVOT

50526-MW5-000

Unavailable

13

BAR, SIDE STAND

50532-MAM-000

Unavailable

14

SPRING, SIDE STAND

50541-MB0-000

$11.75

15

BOLT, SIDE STAND PIVOT

90108-MR5-000

$8.00

16

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

16

BOLT, SPECIAL (6X16) This part replaces 90147-MK6-671.

90147-MCE-950

$1.49

17

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.85

18

NUT, SIDE STAND

90203-MF9-710

$3.67

19

NUT, FLANGE (8MM)

94050-08080

$1.49

20

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

20

PIN, SPLIT (2.5X30)

94201-25300

$1.49

21

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

22

BOLT, FLANGE (8X45)

95701-08045-08

$2.28

23

BOLT, FLANGE (6X28)

96001-06028-02

$1.95
