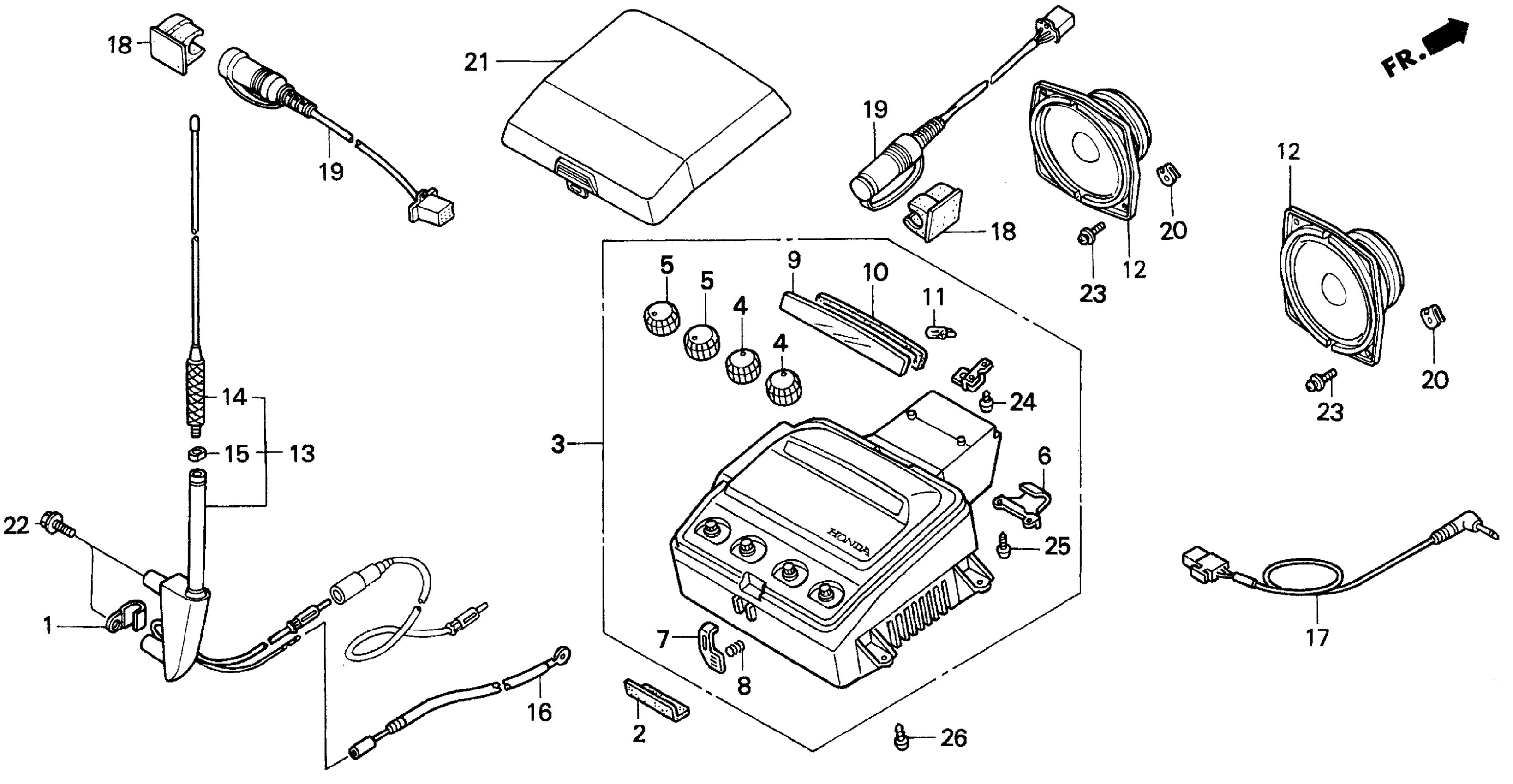

Honda GL1500IA (96) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-TA800001 I RADIO Diagram

#

Description
Price

1

CLAMP, WIRE

32111-426-000

Unavailable

1

CLAMP, WIRE This part replaces 32111-460-780.

32111-426-000

Unavailable

2

RUBBER, RADIO CASSETTE

39109-MN5-000

Unavailable

3

RADIO ASSY.

39100-MY4-871

$1,123.64

3

RADIO ASSY. This part replaces 39110-MY4-871.

39100-MY4-871

$1,123.64

4

KNOB, RADIO (A)

39111-MN5-003

$11.87

5

KNOB, RADIO (B)

39116-MN5-003

$11.54

6

PLATE, COVER STOPPER

39117-MN5-000

Unavailable

7

LEVER, COVER LOCK

39118-MN5-023

Unavailable

8

SPRING, LEVER

39119-MN5-003

Unavailable

9

LENS (NOT AVAILABLE)

39121-MY4-871

Unavailable

10

SPONGE (B) (NOT AVAILABLE)

39122-MY4-871

Unavailable

11

BULB

39123-MY4-871

Unavailable

12

SPEAKER UNIT, FR. This part replaces 39130-MT2-003.

39130-MCA-A61

$42.58

13

ANTENNA ASSY., RADIO

39150-MAM-003

Unavailable

14

ELEMENT, ANTENNA

39151-MAF-000

Unavailable

15

NUT, ANTENNA

39153-MN5-003

$4.12

16

SUB-WIRE, ANTENNA GROUND

39155-MW5-870

Unavailable

17

CORD (AUX) This part replaces 39170-MY4-870.

39170-MCA-010

$53.20

18

HOLDER ASSY., CONNECTOR

39242-MN5-000

Unavailable

19

LEAD, HEADSET JUNCTION

39245-MT2-010

Unavailable

20

NUT, CLIP (4MM)

64521-MN5-000

$2.92

21

COVER, RADIO CASSETTE (NH159L) (TYPE1)

83170-MN5-000ZA

$92.66

21

COVER, RADIO CASSETTE (R200) (TYPE7)

83170-MN5-000ZH

Unavailable

22

BOLT-WASHER (6X16) This part replaces 93411-06016-08.

93401-06016-08

$1.49

23

SCREW-WASHER (4X12)

93891-04012-08

$1.49

24

SCREW, TAPPING (3X8)

93901-22120

$6.31

25

SCREW, TAPPING (3X12)

93901-22320

$1.49

26

SCREW, TAPPING (5X12)

93903-25220

$1.49
