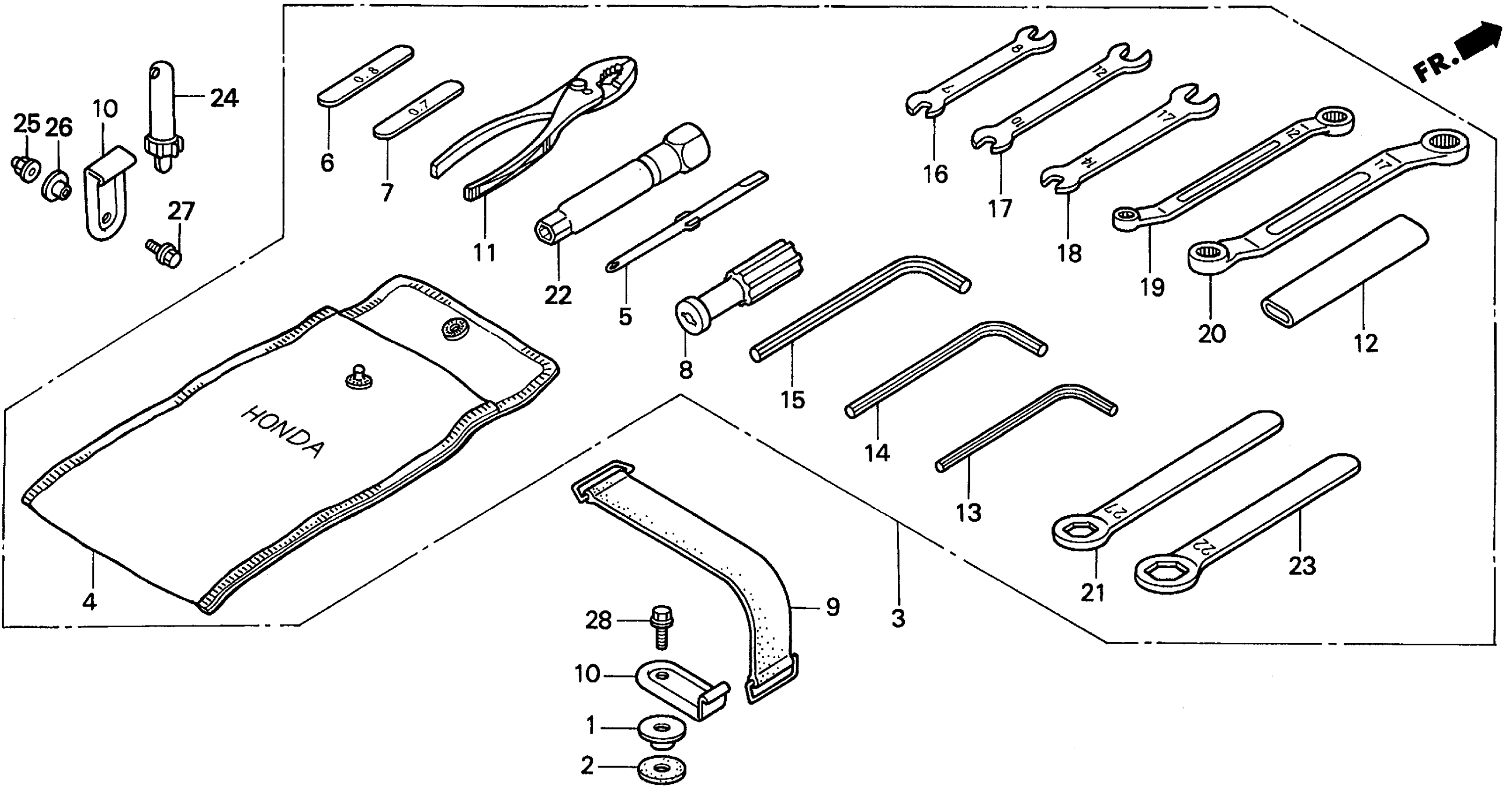

Honda GL1500IA (95) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-SA700001 GL1500I TOOLS Diagram

#

Description
Price

1

COLLAR, SADDLEBAG SETTING

81355-MN5-000

$6.60

2

RUBBER, BAG SETTING

81356-MN5-000

$3.43

3

TOOL SET (NOT AVAILABLE)

89010-MW5-870

Unavailable

4

BAG, TOOL

89101-ME5-670

Unavailable

4

BAG, TOOL This part replaces 89101-300-010.

89101-ME5-670

Unavailable

4

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable

5

SCREWDRIVER 2 (NOT AVAILABLE)

89102-MN5-000

Unavailable

6

GAUGE, FEELER (0.8)

89103-MG9-680

Unavailable

7

GAUGE, FEELER (0.7)

89103-371-000

$3.31

8

GRIP

89103-538-000

$4.08

9

BAND, TOOL SETTING

89105-MN5-000

Unavailable

10

PLATE, TOOL SET

89108-MT2-000

Unavailable

11

PLIERS (150)

89210-MN5-000

Unavailable

12

HANDLE (12) (NOT AVAILABLE)

89217-MN5-000

Unavailable

13

WRENCH, HEX. (5MM)

89221-MJ4-000

$6.41

14

WRENCH, HEX. (6MM)

89221-422-000

$29.41

15

WRENCH, HEX. (8MM) (NOT AVAILABLE)

89222-422-000

Unavailable

16

WRENCH (7X8) (OPEN END) (NOT AVAILABLE)

89224-MN5-000

Unavailable

17

WRENCH (10X12) (OPEN END) (NOT AVAILABLE)

89225-MN5-000

Unavailable

18

SPANNER (14X17)

89226-MN5-000

Unavailable

19

WRENCH, EYE (10X12)

89227-MN5-000

Unavailable

20

WRENCH, EYE (14X17) (NOT AVAILABLE)

89228-MN5-000

Unavailable

21

WRENCH, EYE (27MM) (NOT AVAILABLE)

89229-MN5-000

Unavailable

22

WRENCH, PLUG

89216-MB0-000

$26.48

22

WRENCH, PLUG This part replaces 89250-MN5-000.

89216-MB0-000

$26.48

23

WRENCH, EYE (22)

89255-MN5-000

Unavailable

24

GAUGE, AIR PRESSURE | (Optional).

89301-MN5-003

$28.98

25

NUT, CAP (6MM)

90201-428-900

$2.23

26

WASHER (6X20)

90512-KF9-900

$3.06

27

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

28

BOLT, FLANGE (6X20)

96001-06020-07

$1.49
