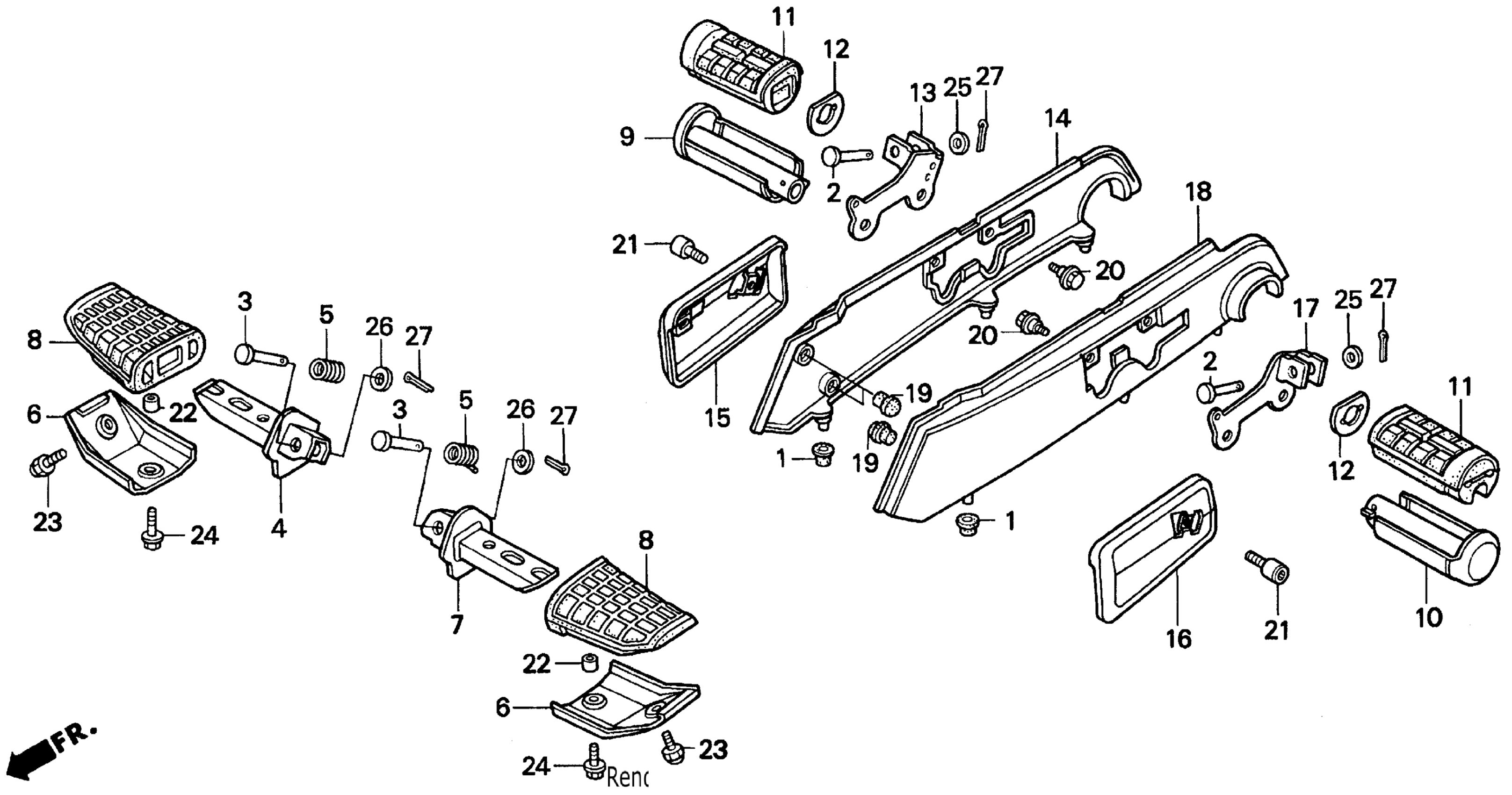

Honda GL1500IA (95) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-SA700001 GL1500I STEP Diagram

#

Description
Price

1

RUBBER, RADIATOR SETTING

19113-MB1-870

$3.22

2

PIN, STEP JOINT

50603-KB4-000

$4.41

3

PIN, STEP PIVOT

50603-MN5-000

Unavailable

4

BAR, R. STEP

50612-MT2-000

$52.23

5

SPRING, STEP RETURN

50617-MB1-700

$5.41

6

COVER, STEP (LOWER)

50619-MN5-000

$23.58

7

BAR, L. STEP

50642-MT2-000

$52.23

8

RUBBER, MAIN STEP

50661-MN5-000

$18.55

9

BAR, R. PILLION STEP

50711-MM8-000

Unavailable

10

BAR, L. PILLION STEP

50712-MM8-000

$27.12

11

RUBBER, PILLION STEP

50713-MK7-000

Unavailable

12

WASHER, PILLION STEP

50714-MK7-000

$4.59

13

HOLDER, R. PILLION STEP

50715-MW5-870

Unavailable

14

COVER, R. PILLION STEP HOLDER

50717-MW5-000

$63.42

15

SUB-COVER, R. PILLION STEP HOLDER

50725-MW5-870

Unavailable

16

SUB-COVER, L. PILLION STEP HOLDER

50726-MW5-870

Unavailable

17

HOLDER, L. PILLION STEP

50815-MW5-870

Unavailable

18

COVER, L. PILLION STEP HOLDER

50817-MW5-000

$63.42

19

CAP, RR. BUMPER

84103-443-611

$3.86

20

BOLT, FLANGE (6MM)

90111-GK1-000

Unavailable

21

BOLT, HEX. (6X12)

90113-MW5-870

Unavailable

22

COLLAR, RR. SPLASH GUARD

90325-197-000

$3.10

23

BOLT, CAP (6X8)

92501-06008-0B

Unavailable

24

BOLT-WASHER (8X25)

93403-06020-00

$1.16

25

WASHER, PLAIN (8MM)

94101-08000

$0.75

26

WASHER, PLAIN (8MM)

94102-08000

$0.86

27

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.94

27

PIN, COTTER (1.6X25)

94201-16250

$0.94
