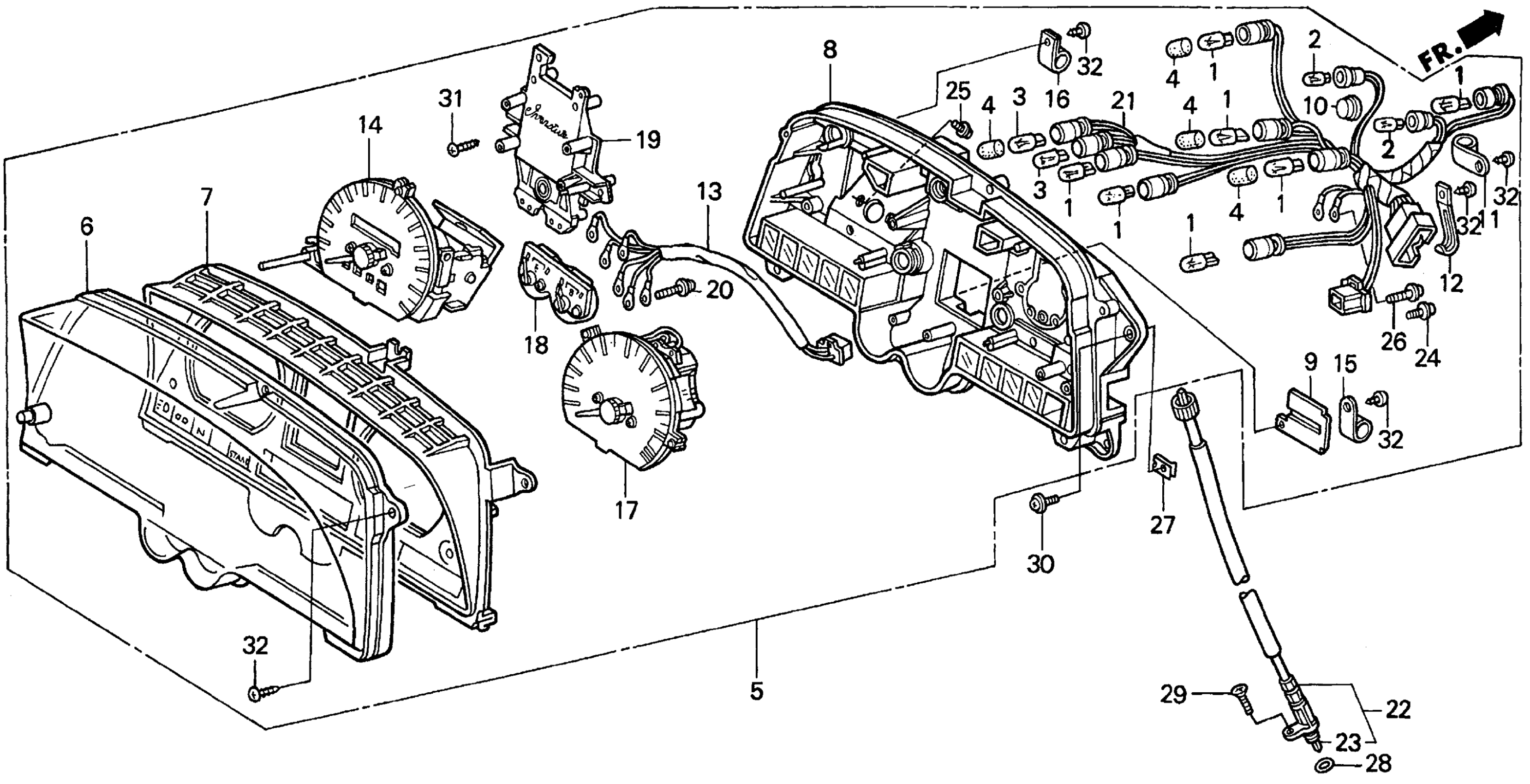

Honda GL1500IA (95) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-SA700001 GL1500I SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (12V3W) (TOSHIBA)

34908-KM1-671

$7.08

3

BULB, WEDGE BASE (12V1.7W) (NIPPON SEIKI)

34908-MB9-871

$2.78

4

CAP, BULB (T10 BLUE)

34910-MN5-008

$3.13

5

METER ASSY., COMBINATION

37100-MW5-871

Unavailable

6

GLASS, METER

37102-MW5-871

Unavailable

7

PLATE, REFLECTING

37103-MW5-871

Unavailable

8

CASE, METER

37104-MW5-871

Unavailable

9

COVER

37105-MW5-871

Unavailable

10

CAP

37113-KV0-670

Unavailable

11

CLAMP

37121-ML7-671

$2.89

12

CLAMP

37121-MN5-008

Unavailable

13

WIRE

37132-MW5-871

Unavailable

14

SPEEDOMETER ASSY.

37200-MW5-871

Unavailable

15

CLAMP

37215-KM1-670

$1.88

16

CLAMP, WIRE

37215-KV0-008

$2.92

17

TACHOMETER ASSY. This part replaces 37250-MT8-008.

37250-MT8-601

Unavailable

18

METER ASSY., FUEL & TEMPERATURE

37300-MT8-008

Unavailable

19

CASE (INNER)

37302-MW5-871

Unavailable

20

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

21

SOCKET, METER

37619-MW5-871

Unavailable

22

CABLE ASSY., SPEEDOMETER

44830-MN5-000

$33.52

23

CABLE (INNER)

44831-MN5-000

$12.26

24

SCREW, TAPPING (4X3) This part replaces 90032-ML7-671.

90133-SG0-A01

Unavailable

24

SCREW, TAPPING (4X3)

90133-SG0-A01

Unavailable

25

SCREW, FLANGE (4X12)

90101-GE1-670

$3.43

26

SCREW-WASHER (3X12)

90102-MT8-008

Unavailable

27

NUT, PLATE (5MM)

90305-MN5-000

$6.02

28

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

28

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

28

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

29

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

30

SCREW-WASHER (5X16)

93891-05016-07

$1.49

31

SCREW, TAPPING (4X16)

93901-24410

$1.49

32

SCREW, TAPPING (4X16)

93903-24420

$1.49
