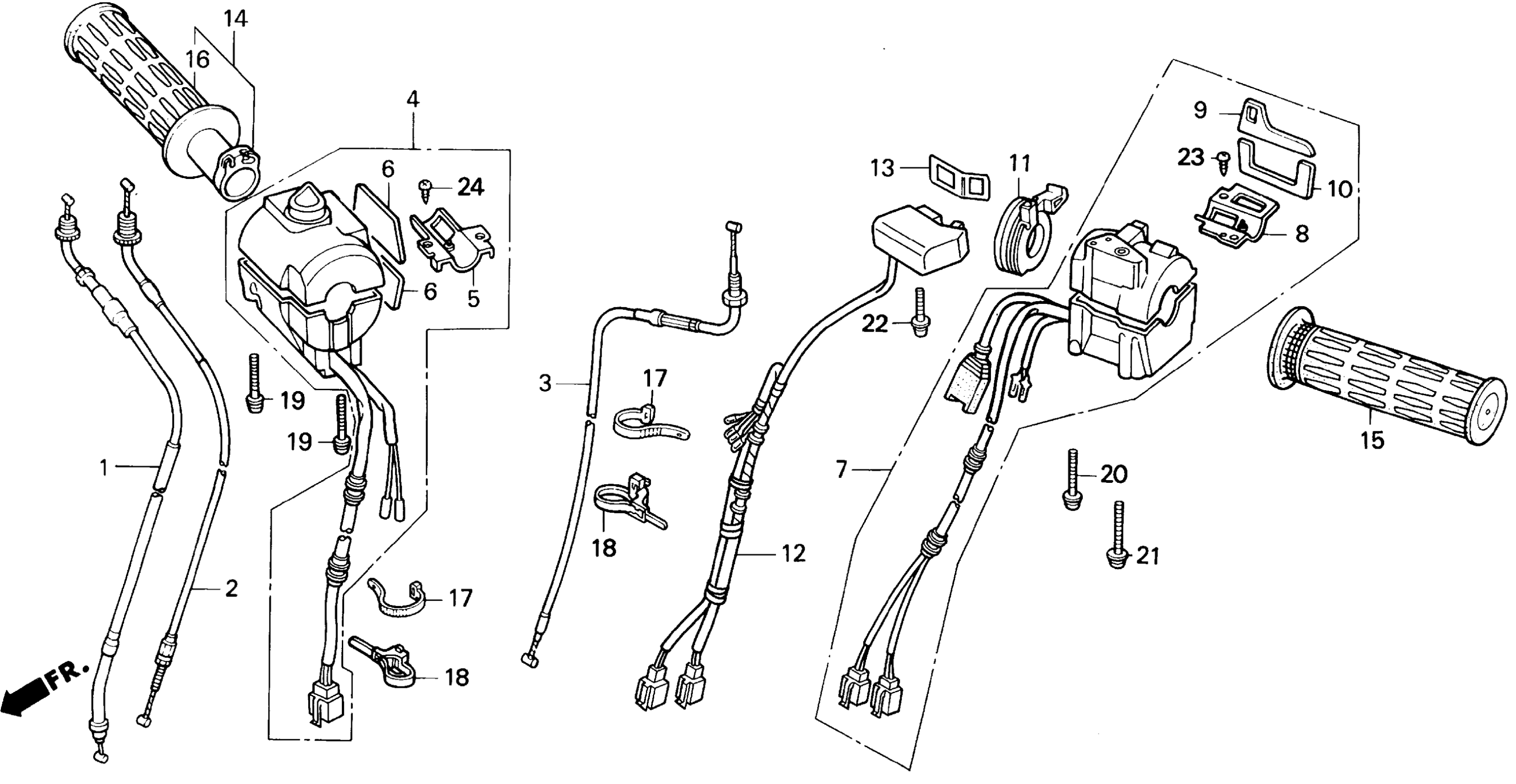

Honda GL1500IA (95) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-SA700001 GL1500I HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MT2-000

$44.64

2

CABLE B, THROTTLE

17920-MW5-870

Unavailable

3

CABLE, CHOKE

17950-MN5-004

$47.31

4

SWITCH ASSY., STARTER & STOP

35130-MW5-871

Unavailable

5

PLATE, STOP SWITCH SETTING

35132-MN5-010

Unavailable

6

PLATE, ORNAMENT

35133-MW5-871

Unavailable

7

SWITCH ASSY., TURN SIGNAL

35200-MW5-872

Unavailable

8

PLATE, TURN SIGNAL SETTING

35202-MN5-010

Unavailable

9

PLATE A, ORNAMENT

35203-MN5-000

Unavailable

10

PLATE B, ORNAMENT

35204-MN5-000

Unavailable

11

LEVER, CHOKE

35209-MN5-000

Unavailable

12

SWITCH ASSY., AUDIO

39210-MY4-871

Unavailable

13

PLATE, ORNAMENT

39212-MY4-871

Unavailable

14

GRIP, R.

53145-MG9-680

Unavailable

15

GRIP, L. HANDLEBAR

53167-MG9-315

$10.10

16

GRIP, R. HANDLEBAR

53168-MG9-315

$13.74

17

BAND, WIRE HARNESS

90651-MA6-720

$3.73

18

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.18

18

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

19

SCREW-WASHER (5X25)

93892-05025-07

$1.49

19

SCREW-WASHER (5X25) This part replaces 93892-05026-07.

93892-05025-07

$1.49

20

SCREW-WASHER (5X28)

93892-05028-07

$1.49

21

SCREW-WASHER (5X45)

93892-05045-07

$1.49

22

SCREW-WASHER (5X32)

93893-05032-08

Unavailable

23

SCREW, TAPPING (3X8)

93901-32120

$1.49

24

SCREW, TAPPING (3X10)

93901-32220

$1.49
