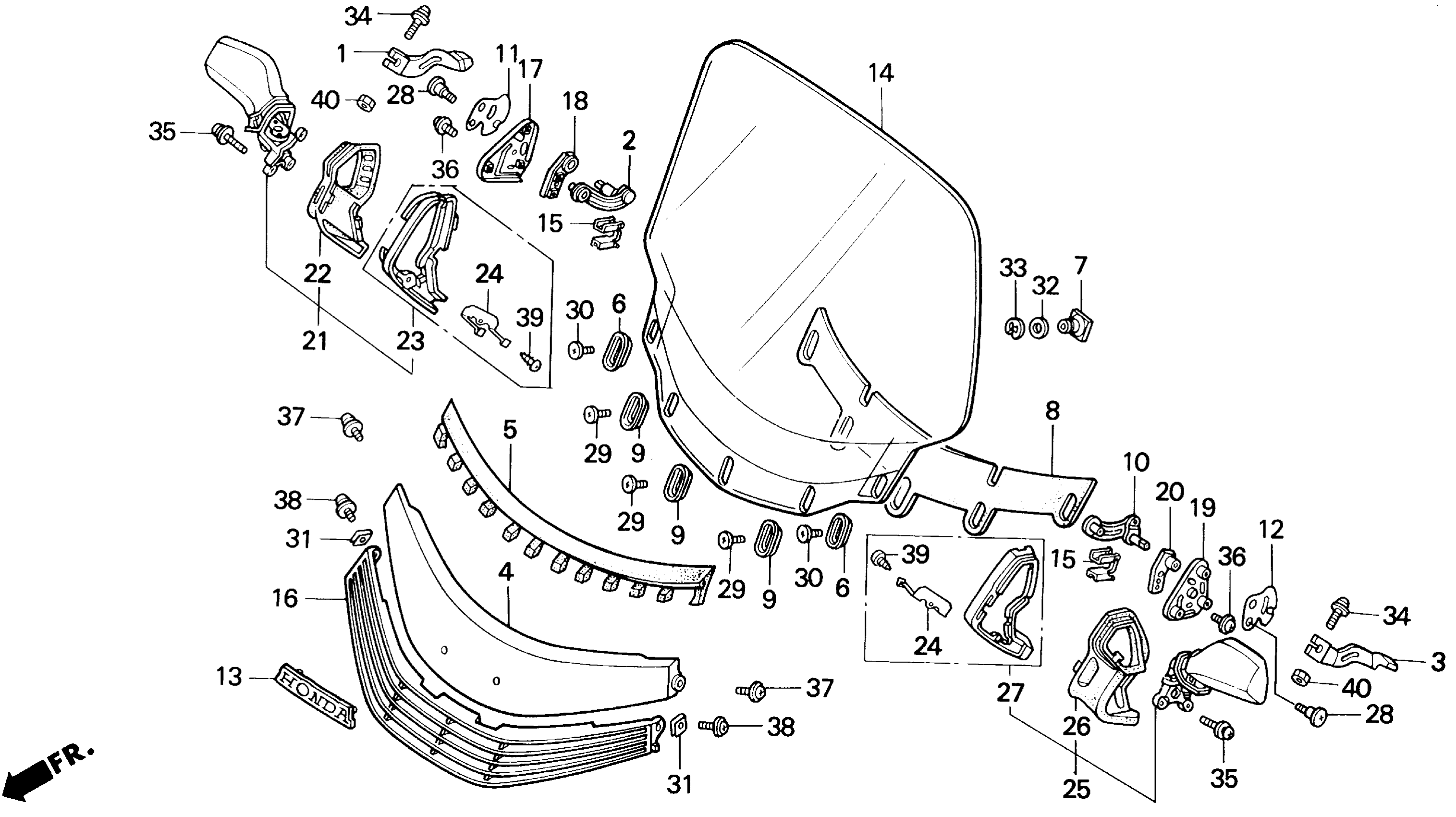

Honda GL1500IA (94) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-RA600001 A/I WINDSCREEN 94 Diagram

#

Description
Price

4

GARNISH, SCREEN

64110-MN5-000

Unavailable

5

SEAL, WINDSCREEN

64111-MT8-000

Unavailable

6

PLATE, WINDSCREEN SETTING

64116-MN5-000

$6.22

7

NUT, WINDSCREEN SETTING

64114-MG9-770

Unavailable

8

RUBBER, SCREEN

64115-MAM-000

$55.74

8

RUBBER, SCREEN This part replaces 64115-MN5-000.

64115-MAM-000

$55.74

9

PLATE, WINDSCREEN SETTING

64116-MN5-000

$6.22

13

EMBLEM, SCREEN GARNISH

64125-MT8-000

Unavailable

14

WINDSCREEN

64100-MW5-870

Unavailable

16

LOUVER, FR. (UPPER)

64260-MN5-000

$25.41

17

BASE, R. MIRROR

64531-MW5-870

Unavailable

19

BASE, L. MIRROR

64631-MW5-870

Unavailable

21

MIRROR ASSY., R. *NH105* (MAT BLACK)

88110-MW5-870ZA

$146.15

22

BOOT, R.

88113-MN5-003

$33.41

23

BASE ASSY., R. MIRROR *NH105* (MAT BLACK)

88114-MN5-003ZN

$108.61

24

PLATE, SET

88119-MN5-000

$5.54

25

MIRROR ASSY., L. *NH105/YR168M* (MAT BLACK/CINNAMON BEIGE)

88120-MW5-870ZA

$146.15

26

BOOT, L.

88123-MN5-003

Unavailable

27

BASE ASSY., L. MIRROR *NH105* (MAT BLACK)

88124-MN5-003ZN

$108.61

28

SCREW, SPECIAL (6X8) This part replaces 90104-KT8-710.

90104-MJ0-660

$4.15

29

SCREW, SPECIAL (6X14)

90110-GW0-000

$2.75

30

SCREW, SPECIAL (6X14)

90110-GW0-000

$2.75

31

NUT, PLATE (5MM)

90305-MN5-000

$6.02

32

WASHER

90501-MT2-000

$1.86

33

E-RING (8MM)

90601-473-003

$2.25

35

SCREW-WASHER (5X28)

93891-05028-08

$1.49

37

SCREW, PAN (6X14)

90107-MM5-000

$5.04

38

SCREW-WASHER (5X16)

93894-05016-07

$1.49

39

SCREW, TAPPING (4X10)

93901-24280

$1.49
