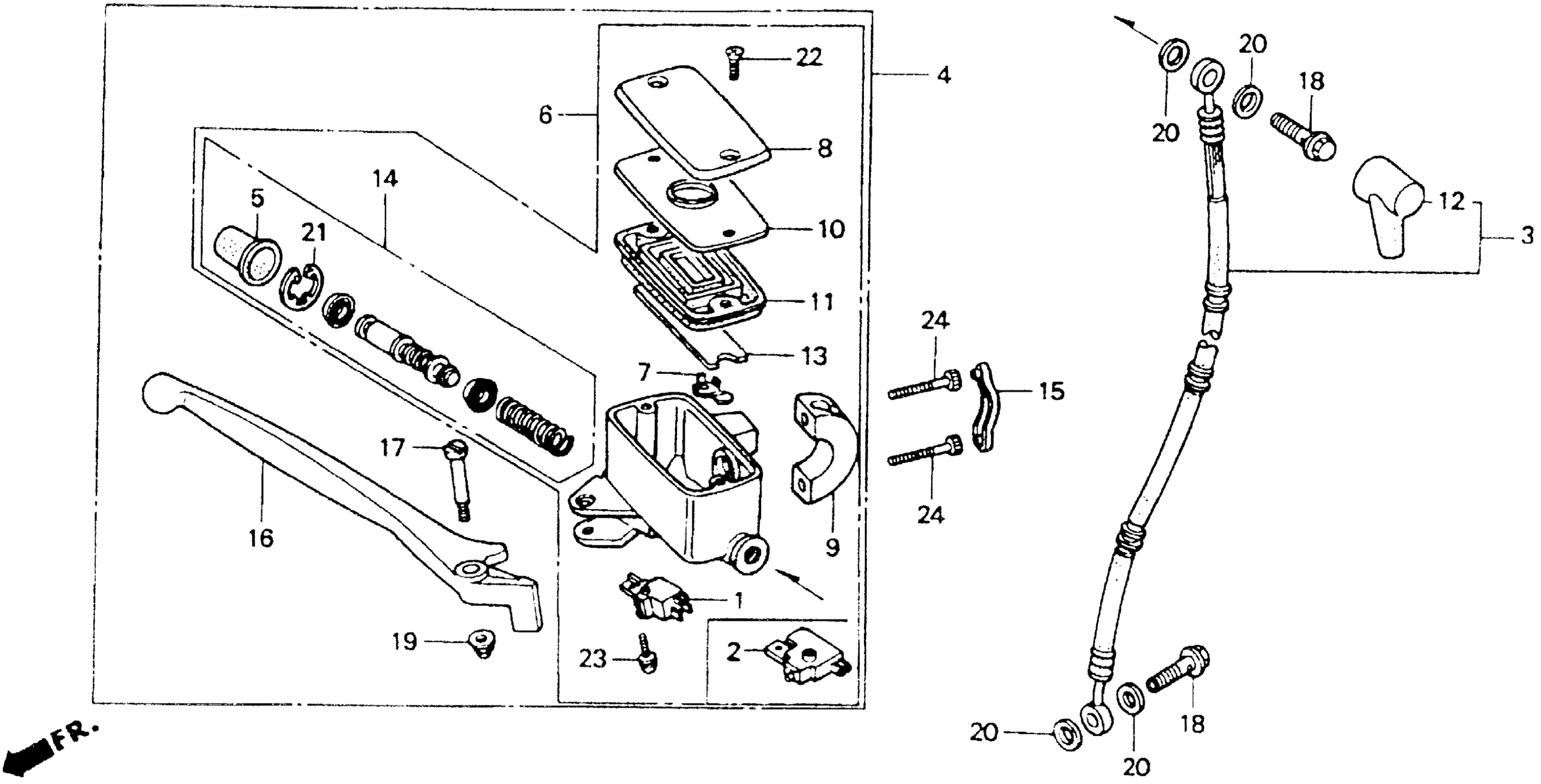

Honda GL1500IA (93) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-PA500001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

2

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

3

HOSE, R. FR. BRAKE (NICHIRIN)

45125-MT8-003

Unavailable

5

BOOT

45504-410-003

$12.16

6

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MAM-306

Unavailable

6

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) This part replaces 45510-MW5-305.

45510-MAM-306

Unavailable

7

PROTECTOR

45512-MA6-006

$4.28

8

CAP, MASTER CYLINDER

45513-MAM-A61

$33.75

8

CAP, MASTER CYLINDER This part replaces 45513-MN5-006.

45513-MAM-A61

$33.75

9

HOLDER, MASTER CYLINDER (NISSIN) This part replaces 45517-MN5-006.

45517-MN5-016

Unavailable

9

HOLDER, MASTER CYLINDER (NISSIN)

45517-MN5-016

Unavailable

10

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

11

DIAPHRAGM

45520-MM5-006

$15.12

12

BOOT, MASTER CYLINDER

45522-422-000

$8.68

13

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

14

MASTER CYLINDER SET

45530-MG9-951

$62.90

16

LEVER, R. HANDLEBAR

53175-MT8-016

Unavailable

17

BOLT, HANDLE LEVER

90114-MG9-951

$7.88

18

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

18

BOLT, OIL (10X22)

90145-MS9-612

$7.54

19

NUT, CAP (6MM)

90202-ZV0-000

$2.91

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

CIRCLIP

90651-MA5-671

$2.66

22

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

22

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

23

SCREW-WASHER (4X12)

93893-04012-08

$1.49

23

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

24

BOLT, SOCKET (6X20)

96600-06020-17

$1.49
