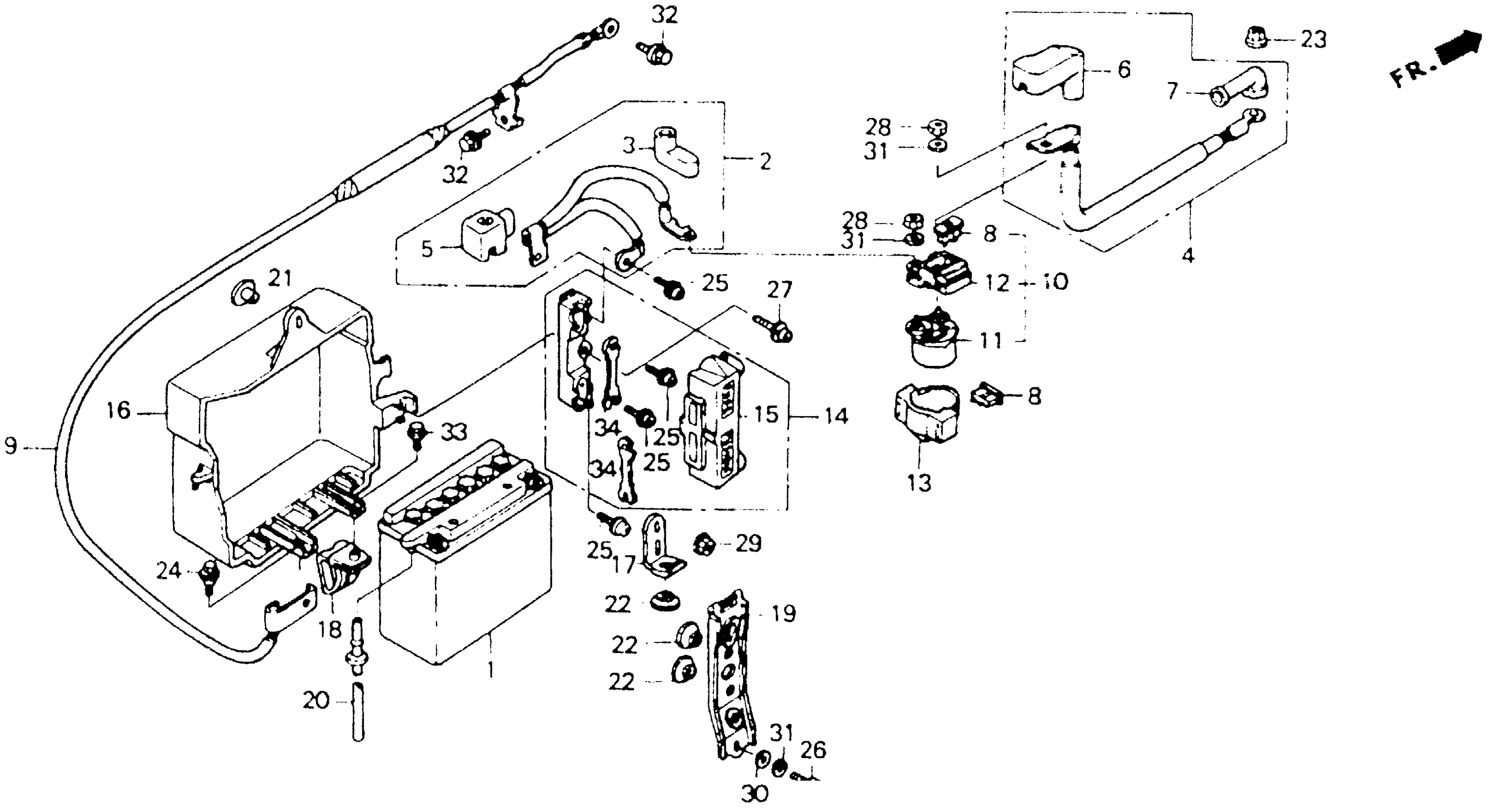

Honda GL1500IA (93) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-PA500001 BATTERY (I) Diagram

#

Description
Price

1

BATTERY (Y50-N18L-A3) (YUASA) This part replaces 31500-MN5-010.

31500-MN5-020AH

Unavailable

1

BATTERY (Y50-N18L-A3) (YUASA) This part replaces 31500-MN5-020.

31500-MN5-020AH

Unavailable

1

BATTERY ASSY. (Y50-N18L-A3) (YUASA)

31500-MN5-020AH

Unavailable

1

BATTERY (Y50-N18L-A3) (YUASA) This part replaces 31500-MN5-017.

31500-MN5-020AH

Unavailable

2

CABLE, STARTER BATTERY

32401-MN5-000

Unavailable

3

COVER A, STARTER MAGNETIC

32406-KT7-000

Unavailable

4

CABLE, STARTER MOTOR

32410-MW5-870

Unavailable

5

COVER, BATTERY TERMINAL

32412-MN5-000

Unavailable

6

COVER B, MAGNETIC SWITCH

32417-MG7-000

Unavailable

7

COVER, STARTER MOTOR TERMINAL

32423-MN5-000

Unavailable

8

FUSE, BLADE (30A) This part replaces 32507-SM4-003.

98200-33000

$1.49

8

FUSE, BLADE (30A)

98200-33000

$1.49

9

CABLE, BATTERY GROUND

32601-MW5-870

Unavailable

10

SWITCH ASSY., STARTER MAGNETIC

35850-MK3-671

$127.45

10

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT8-003.

35850-MK3-671

$127.45

11

SWITCH, STARTER MAGNETIC

35851-MF5-751

$106.43

12

HOLDER ASSY., FUSE

35855-MG7-751

$37.26

13

RUBBER, SHOCK ABSORBER

35856-MK5-007

Unavailable

14

BOX ASSY., MAIN FUSE

38250-MN5-003

Unavailable

15

COVER, MAIN FUSE BOX

38255-MN5-003

Unavailable

16

BOX, BATTERY

50320-MN5-000

$50.89

17

HOOK, BATTERY BAND

50322-MN5-000

Unavailable

18

CLAMP, BRAKE HOSE

50323-MN5-000

Unavailable

19

BAND, BATTERY

50325-MN5-000

$22.30

20

TUBE, BATTERY

50328-MN5-000

Unavailable

21

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

22

RUBBER, BATTERY BOX

83618-323-000

$2.47

23

NUT-WASHER (6MM)

90071-MB0-000

$1.97

24

BOLT, SPECIAL (6MM)

90109-434-000

$2.77

25

SCREW-WASHER (5X10)

90153-SB2-003

$5.19

26

BOLT, RECESSED (6X12)

92301-06012-0A

$1.49

27

SCREW-WASHER (6X16)

93891-06016-08

$1.49

28

NUT, HEX. (6MM)

94002-06080-0S

$1.49

29

NUT, FLANGE (6MM)

94050-06080

$1.49

30

WASHER, PLAIN (6MM)

94101-06800

$1.49

31

WASHER, SPRING (6MM)

94111-06800

$1.49

32

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

33

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

34

FUSE (55A)

98200-65500

$1.91
