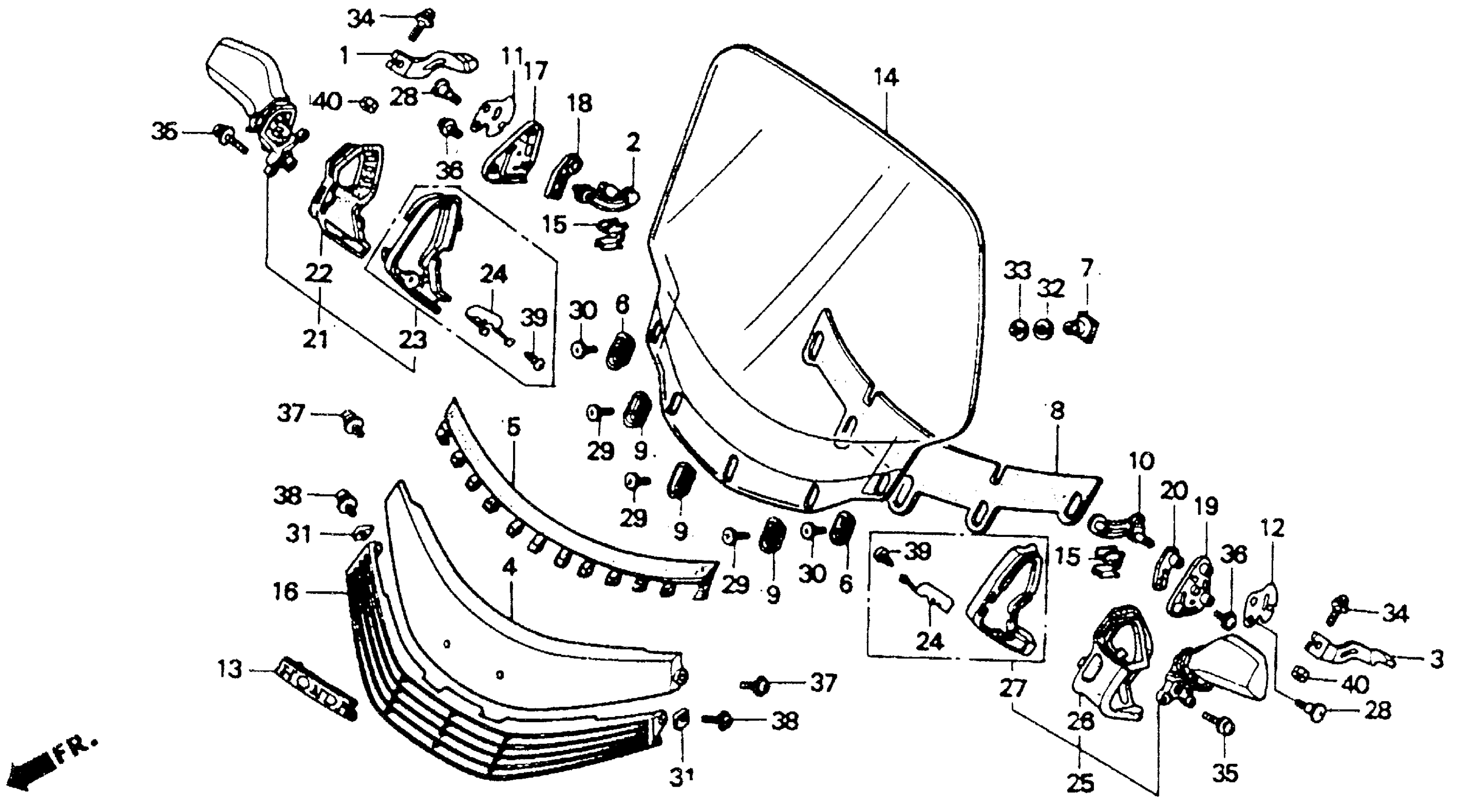

Honda GL1500IA (92) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-NA400001 WINDSCREEN (A/I) Diagram

#

Description
Price

4

GARNISH, SCREEN *NH132M* (MAX SILVER METALLIC)

64110-MY4-870ZA

Unavailable

5

SEAL, WINDSCREEN

64111-MT8-000

Unavailable

6

PLATE, WINDSCREEN SETTING

64116-MN5-000

$5.78

7

NUT, WINDSCREEN SETTING

64114-MG9-770

Unavailable

8

RUBBER, SCREEN

64115-MAM-000

$49.28

8

RUBBER, SCREEN This part replaces 64115-MN5-000.

64115-MAM-000

$49.28

9

PLATE, WINDSCREEN SETTING

64116-MN5-000

$5.78

13

EMBLEM, SCREEN GARNISH (NOT AVAILABLE)

64125-MT8-000

Unavailable

14

WINDSCREEN

64100-MW5-870

Unavailable

16

LOUVER, FR. (UPPER)

64260-MN5-000

$22.46

17

BASE, R. MIRROR

64531-MW5-870

Unavailable

19

BASE, L. MIRROR

64631-MW5-870

Unavailable

21

MIRROR ASSY., R. *NH105* (MAT BLACK)

88110-MW5-870ZA

$129.20

22

BOOT, R.

88113-MN5-003

$29.54

23

BASE ASSY., R. MIRROR *NH105* (MAT BLACK)

88114-MN5-003ZN

Unavailable

24

PLATE, SET

88119-MN5-000

$4.90

25

MIRROR ASSY., L. *NH105/YR168M* (MAT BLACK/CINNAMON BEIGE)

88120-MW5-870ZA

$129.20

26

BOOT, L.

88123-MN5-003

Unavailable

27

BASE ASSY., L. MIRROR *NH105* (MAT BLACK)

88124-MN5-003ZN

Unavailable

28

SCREW, SPECIAL (6X8) This part replaces 90104-KT8-710.

90104-MJ0-660

$3.86

28

SCREW, SPECIAL (6X8)

90104-MJ0-660

$3.86

29

SCREW, SPECIAL (6X14)

90110-GW0-000

$2.51

30

SCREW, SPECIAL (6X14)

90110-GW0-000

$2.51

31

NUT, PLATE (5MM)

90305-MN5-000

$5.09

32

WASHER

90501-MT2-000

$1.87

33

E-RING (8MM)

90601-473-003

$2.04

35

SCREW-WASHER (5X28)

93891-05028-08

$0.77

37

SCREW, PAN (6X17)

90107-MM5-000

$4.69

38

SCREW-WASHER (5X16)

93894-05016-07

$1.04

39

SCREW, TAPPING (4X10)

93901-24280

$0.83
