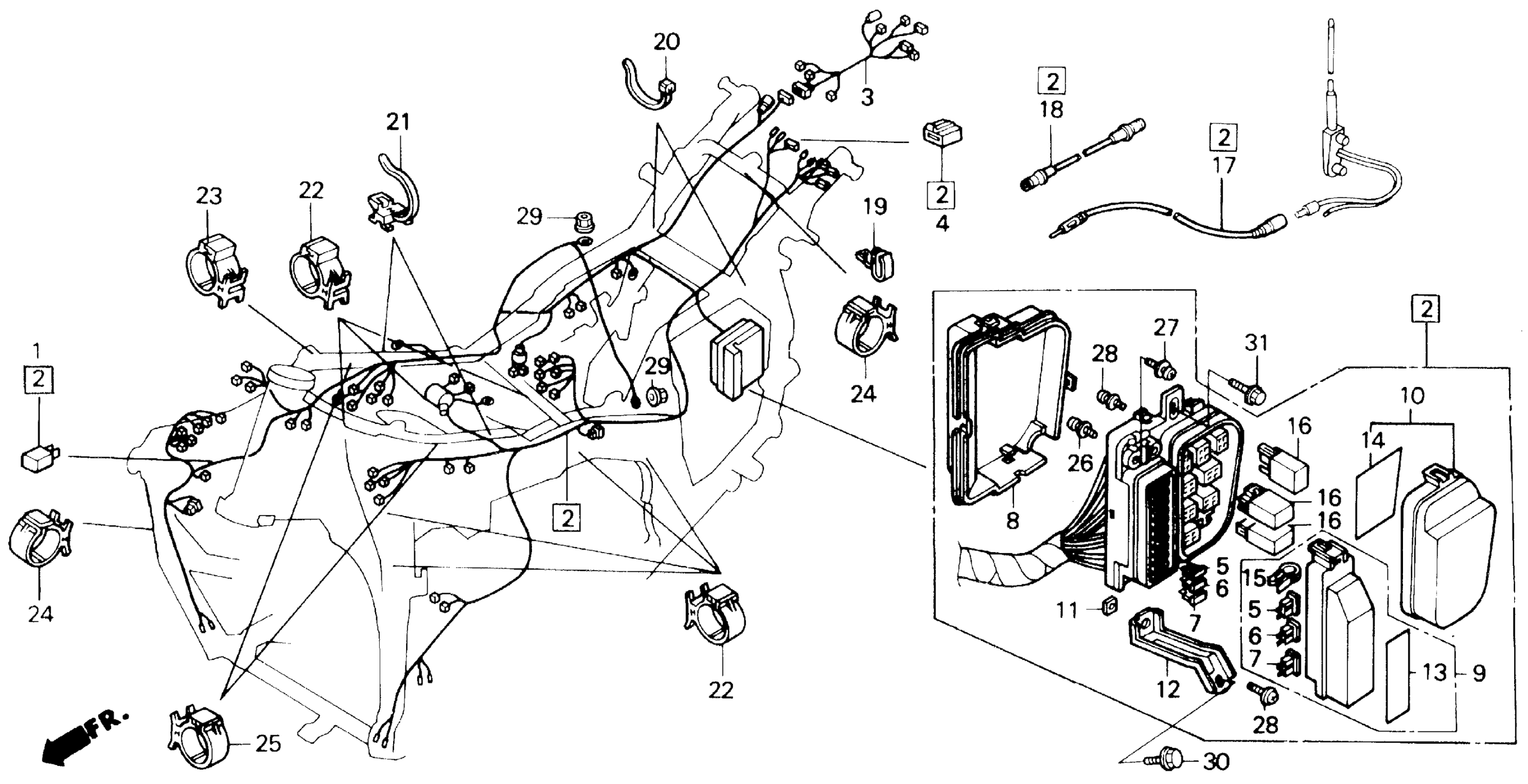

Honda GL1500IA (91) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-MA300001 WIRE HARNESS I Diagram

#

Description
Price

1

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

1

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

2

WIRE HARNESS

32100-MW5-870

Unavailable

3

SUB-HARNESS, RR.

32102-MW5-870

Unavailable

4

COVER, CONNECTOR (2P)

32136-MN5-003

Unavailable

5

FUSE, BLADE (5A) This part replaces 32501-MT8-003.

98200-30500

$1.49

5

FUSE, BLADE (5A)

98200-30500

$1.49

6

FUSE, BLADE (10A) This part replaces 32503-SM4-003.

98200-31000

$1.49

6

FUSE, BLADE (10A)

98200-31000

$1.49

7

FUSE, BLADE (15A) This part replaces 32504-SM4-003.

98200-31500

$1.49

7

FUSE, BLADE (15A)

98200-31500

$1.49

8

COVER, RELAY & FUSE BOX (LOWER)

38204-MN5-000

Unavailable

9

COVER ASSY., FUSE BOX

38205-MW5-870

Unavailable

10

COVER ASSY., RELAY BOX (NOT AVAILABLE)

38206-MW5-870

Unavailable

11

NUT, BRACKET (5MM)

38207-MN5-000

Unavailable

12

BRACKET, RELAY & FUSE BOX

38208-MN5-000

Unavailable

13

LABEL, FUSE BOX

38215-MW5-870

Unavailable

14

LABEL, RELAY BOX

38216-MW5-870

Unavailable

15

PULLER, FUSE (SUMITOMO)

38235-SA5-003

Unavailable

16

RELAY (20A)

38370-MN5-003

$45.80

17

SUB-FEEDER, ANTENNA

39159-MW5-870

Unavailable

18

SUB-WIRE, RADIO ADAPTER

39165-MW5-870

Unavailable

19

CLAMP, CONNECTOR CASE

50324-MN5-000

Unavailable

20

BAND, WIRE HARNESS

90650-MA6-720

$4.15

21

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.18

21

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

22

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

23

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

24

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

25

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

26

SCREW-WASHER (4X8)

93893-04008-08

$1.49

27

SCREW-WASHER (4X10)

93893-04010-08

$1.49

28

SCREW-WASHER (5X10)

93893-05010-08

$1.49

29

NUT, FLANGE (6MM)

94050-06080

$1.49

30

BOLT, FLANGE (6X8)

95701-06008-00

$3.46

31

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
