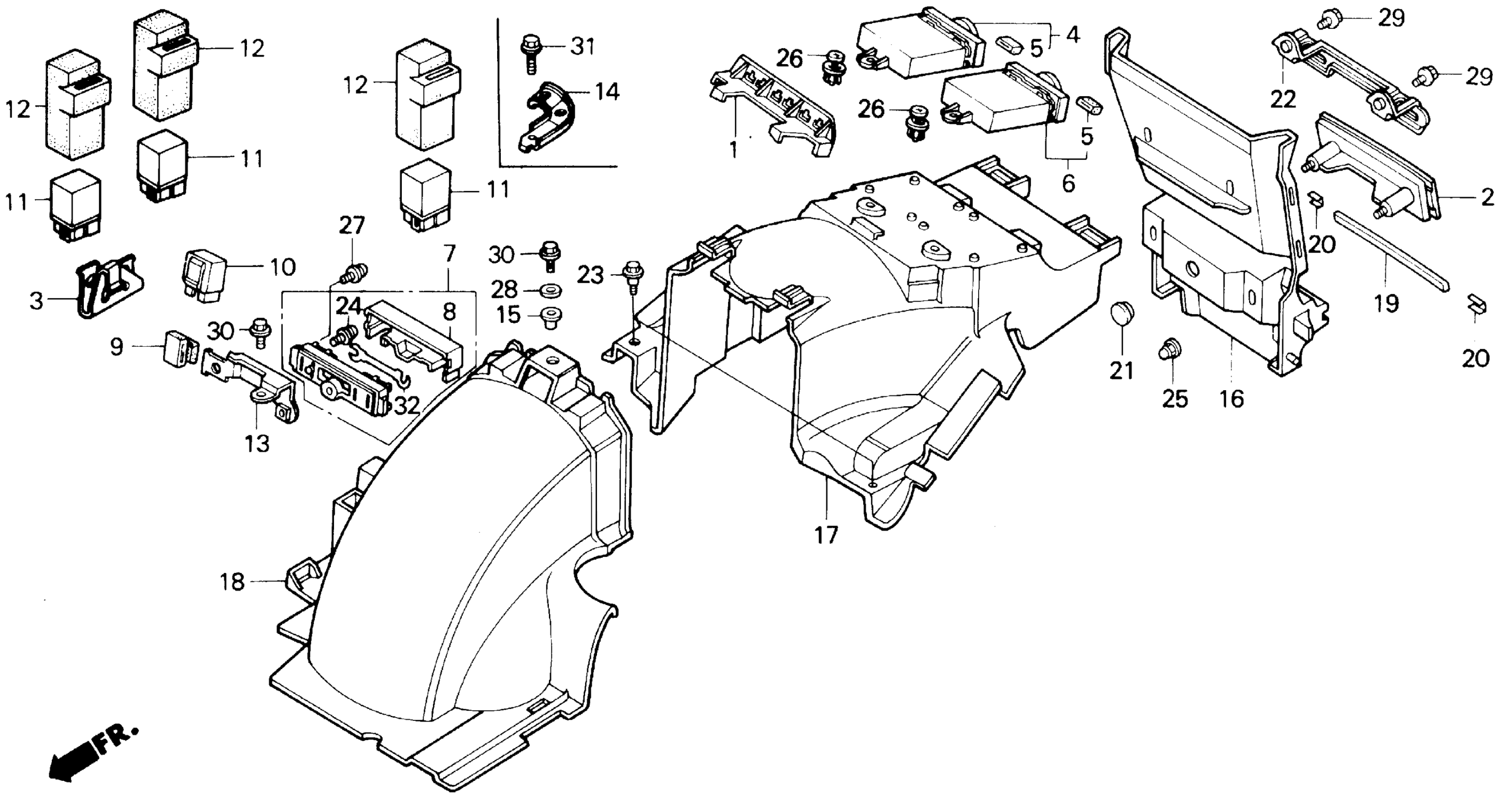

Honda GL1500IA (91) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-MA300001 REAR FENDER Diagram

HOLDER, CONNECTOR

32010-MN5-000

Unavailable

REFLECTOR, RR. REFLEX This part replaces 33742-MN5-003.

33742-MT2-004

Unavailable

REFLECTOR, RR. REFLEX

33742-MT2-004

Unavailable

COLLAR, FR. FENDER

61105-MA3-000

$3.80

FENDER, RR. *YR168M* (A) (CINNAMON BEIGE)

80100-MN5-000ZL

Unavailable

FENDER B, RR.

80101-MW5-870

Unavailable

FENDER C, RR.

80102-MN5-000

Unavailable

MOLDING, RR. FENDER

81245-MN5-000

Unavailable

CLIP, MOLDING

81247-MN5-000

$7.95

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.45

BRACKET, NUMBER PLATE

84700-MN5-000

$10.59

BOLT, FLANGE (6MM)

90112-GC6-000

$3.90

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
