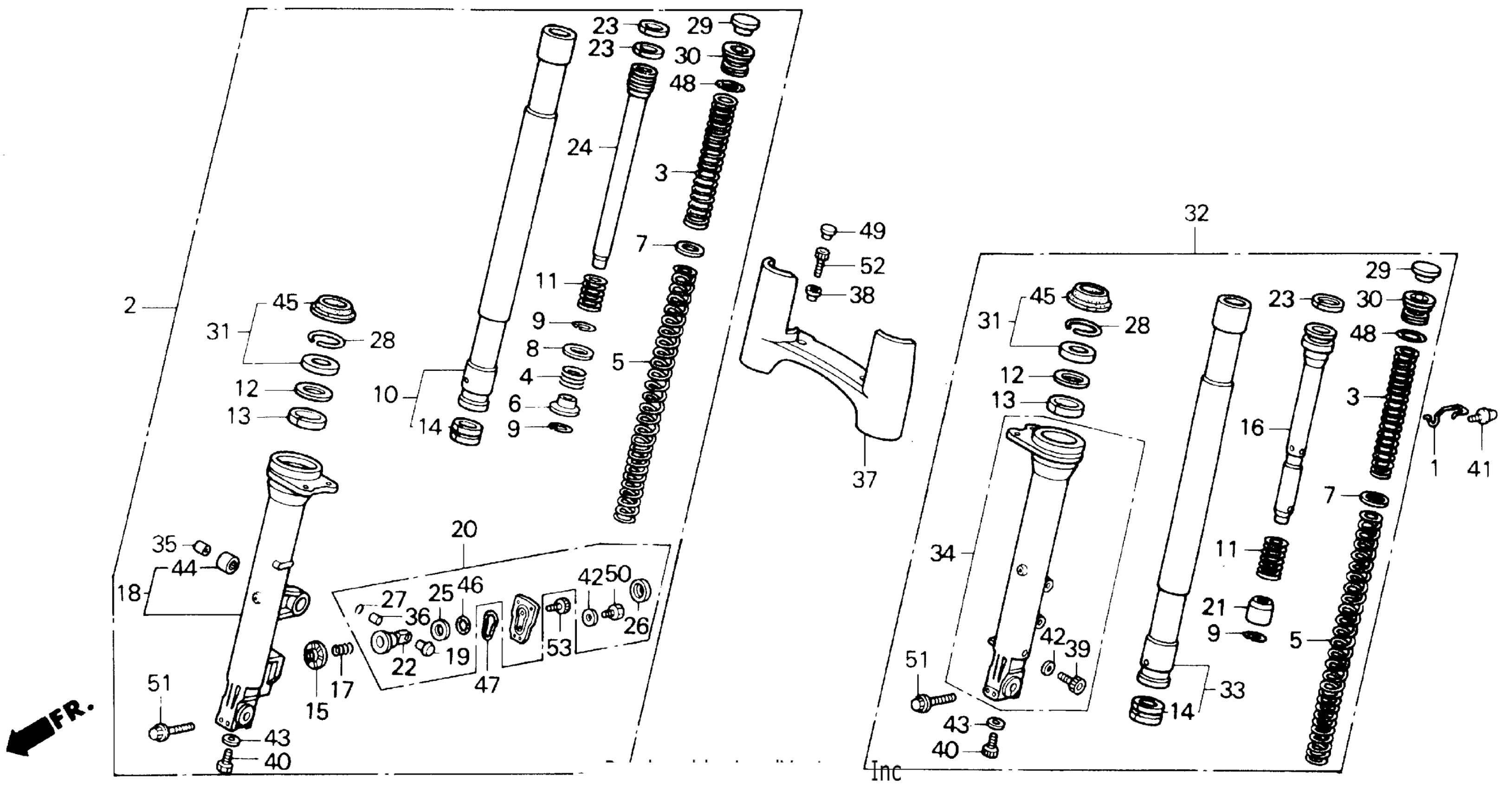

Honda GL1500IA (91) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-MA300001 FRONT FORK I Diagram

#

Description
Price

1

GUIDE, METER CABLE

44832-MT8-000

Unavailable

2

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-MW5-871

Unavailable

3

SPRING, FR. FORK (SHOWA)

51401-MN5-003

Unavailable

4

SPRING, OIL LOCK

51402-MB7-611

$5.54

5

SPRING B, FR. FORK (SHOWA)

51402-MN5-003

$91.84

6

VALVE, OIL LOCK

51403-MB7-611

$10.85

7

PLATE, SPRING JOINT

51404-MB4-003

$4.94

8

SEAT, SPRING

51404-MB7-611

$5.26

9

RING, STOPPER

51405-MB7-611

$2.92

10

PIPE, FR. FORK (SHOWA)

51410-MT8-003

Unavailable

11

SPRING, REBOUND (SHOWA)

51411-MN5-003

Unavailable

12

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

13

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

13

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$14.02

14

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

14

BUSH, SLIDER (SHOWA) This part replaces 51415-MN5-003.

51415-KCR-003

$12.27

15

GASKET

51417-MJ6-013

$7.93

16

PIPE, L. SEAT (SHOWA)

51417-MW5-871

Unavailable

17

SPRING, PISTON (SHOWA)

51418-MN5-003

Unavailable

18

CASE, R. (LOWER) (SHOWA)

51421-MN5-003

Unavailable

19

COLLAR, PISTON

51423-MJ0-003

$11.76

20

CASE, PISTON

51430-MT8-003

Unavailable

21

PIECE, OIL LOCK (SHOWA)

51432-MN5-003

Unavailable

22

PISTON

51436-MT8-003

Unavailable

23

RING, PISTON (SHOWA)

51437-MN5-003

$8.53

24

PIPE, SEAT

51440-MN5-003

Unavailable

25

RUBBER, STOPPER

51441-MT8-003

Unavailable

26

BOOT, PISTON CASE

51442-MJ0-003

$9.72

27

RING, STOPPER

51445-MJ0-003

$2.59

28

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

29

CAP, FORK PIPE (SHOWA)

51449-MN5-003

$9.05

30

BOLT, FR. FORK (SHOWA)

51455-MN5-003

Unavailable

31

SEAL SET, FR. FORK

51490-MN8-305

$35.20

32

FORK ASSY., L. FR. (SHOWA)

51500-MW5-871

Unavailable

33

PIPE, L. FR. FORK

51510-MW5-871

Unavailable

34

CASE, L. (LOWER) (SHOWA)

51521-MW5-871

Unavailable

35

COLLAR, L. FR. CALIPER BRACKET

51536-ML7-000

$11.73

36

BUSH, RUBBER

51545-MJ0-003

$9.38

37

COVER, FR. FORK *YR168M* (TYPE8) (CINNAMON BEIGE)

61050-MN5-000ZK

Unavailable

38

COLLAR

64630-GE3-610

Unavailable

39

BOLT, SOCKET (6X8)

90111-MK7-671

Unavailable

40

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

41

SCREW-WASHER (5X12)

90132-MN5-000

Unavailable

42

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

43

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

44

BEARING, NEEDLE (1422)

91071-ML7-003

$43.08

45

DUST SEAL

91254-MM8-003

$17.88

46

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.23

47

O-RING

91308-MJ0-003

$3.58

48

O-RING (33.2X2.4)

91356-KF0-003

$3.76

49

CAP, SOCKET BOLT (6MM)

91455-MG8-000

Unavailable

50

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

50

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

51

BOLT, FLANGE (8X45)

96400-08045-08

$2.51

52

BOLT, SOCKET (6X10)

96700-06010-08

$1.49

53

BOLT, SOCKET (6X16)

96600-06016-00

$1.66

53

BOLT, SOCKET (6X16) This part replaces 96700-06016-00.

96600-06016-00

$1.66

53

BOLT, SOCKET (6X16) This part replaces 96700-06016-17.

96600-06016-00

$1.66
