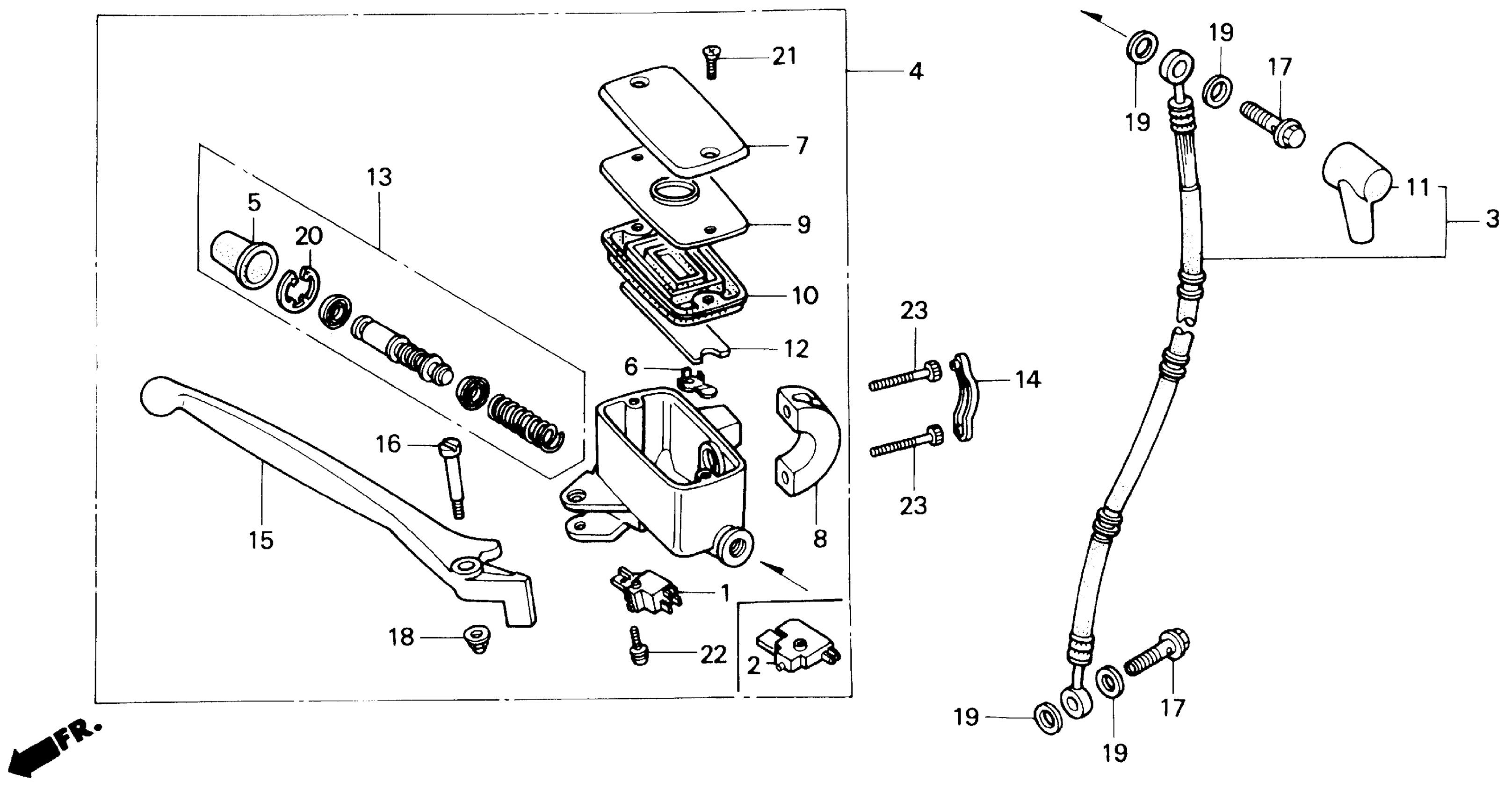

Honda GL1500IA (91) GOLD WING INTERSTATE, USA, VIN# 1HFSC226-MA300001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

2

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

3

HOSE, R. FR. BRAKE (NICHIRIN)

45125-MT8-003

Unavailable

4

MASTER CYLINDER ASSY., FR. BRAKE (NISSIN) (NOT AVAILABLE)

45500-MW5-871

Unavailable

5

BOOT

45504-410-003

$12.16

6

PROTECTOR

45512-MA6-006

$4.28

7

CAP, MASTER CYLINDER

45513-MAM-A61

$33.75

7

CAP, MASTER CYLINDER This part replaces 45513-MN5-006.

45513-MAM-A61

$33.75

8

HOLDER, MASTER CYLINDER (NISSIN) This part replaces 45517-MN5-006.

45517-MN5-016

Unavailable

8

HOLDER, MASTER CYLINDER (NISSIN)

45517-MN5-016

Unavailable

9

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

10

DIAPHRAGM

45520-MM5-006

$15.12

11

BOOT, MASTER CYLINDER

45522-422-000

$8.68

12

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

13

MASTER CYLINDER SET

45530-MG9-951

$62.90

15

LEVER, R. HANDLEBAR

53175-MT8-016

Unavailable

16

BOLT, HANDLE LEVER

90114-MG9-951

$7.88

17

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

17

BOLT, OIL (10X22)

90145-MS9-612

$7.54

18

NUT, CAP (6MM)

90202-ZV0-000

$2.91

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

CIRCLIP

90651-MA5-671

$2.66

21

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

22

SCREW-WASHER (4X12)

93893-04012-08

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

23

BOLT, SOCKET (6X20)

96600-06020-17

$1.49
