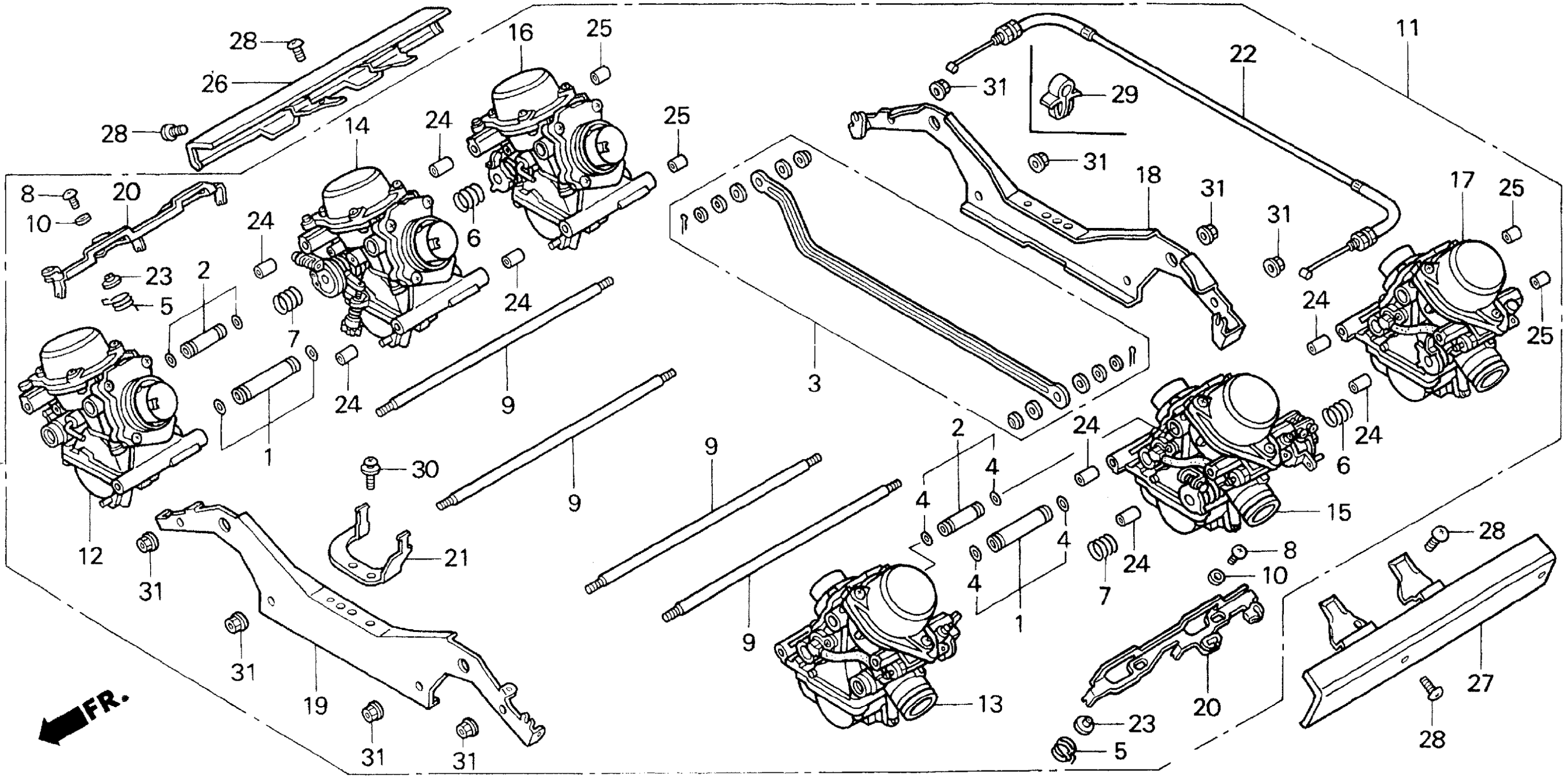

Honda GL1500CFAC (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC411-1A200001 CARBURETOR ASSY. Diagram

#

Description
Price

1

JOINT SET, FUEL

16024-MZ0-670

$34.79

2

JOINT SET

16027-MZ0-670

Unavailable

3

LEVER SET, LINK

16035-MZ0-000

Unavailable

4

GASKET SET B This part replaces 16039-MZ1-790.

16040-MZ1-790

$12.84

4

GASKET SET B

16040-MZ1-790

$12.84

5

SPRING, TORSION COIL (NOT AVAILABLE)

16051-MZ0-000

Unavailable

6

SPRING, COMPRESSION COIL

16053-MA6-003

$9.07

7

SPRING, THROTTLE THRUST

16053-MZ0-000

Unavailable

8

SCREW, TRUSS (4X8)

16081-KAZ-000

$3.10

9

BOLT

16083-MZ0-A00

$13.32

10

WASHER, PLAIN

16085-MV4-000

$2.92

11

CARBURETOR ASSY. (VPK1C A) (NOT AVAILABLE)

16100-MBY-771

Unavailable

12

CARBURETOR ASSY. 1 (NOT AVAILABLE)

16101-MBY-771

Unavailable

13

CARBURETOR ASSY. 2 (NOT AVAILABLE)

16102-MBY-771

Unavailable

14

CARBURETOR ASSY. 3 (NOT AVAILABLE)

16103-MBY-771

Unavailable

15

CARBURETOR ASSY. 4 (NOT AVAILABLE)

16104-MBY-771

Unavailable

16

CARBURETOR ASSY. 5 (NOT AVAILABLE)

16105-MBY-771

Unavailable

17

CARBURETOR ASSY. 6 (NOT AVAILABLE)

16106-MBY-771

Unavailable

18

PLATE, STAY

16119-MZ0-770

Unavailable

19

PLATE, STAY (NOT AVAILABLE)

16120-MZ0-000

Unavailable

20

LEVER, STARTER

16121-MZ0-000

Unavailable

21

STAY, AIR INJECTION CONTROL VALVE

16129-MZ0-000

Unavailable

22

CABLE, CHOKE

16130-MZ0-000

Unavailable

23

COLLAR

16175-MZ1-000

$13.66

24

PIN, DOWEL (7.9X20)

16178-MAS-600

$8.39

25

PIN, DOWEL

16178-MZ0-000

Unavailable

26

COVER, R. CARBURETOR

16301-MZ0-A40

$103.00

27

COVER, L. CARBURETOR

16302-MZ0-A40

Unavailable

28

SCREW, SPECIAL (5X10)

90111-MZ0-000

$4.12

30

SCREW-WASHER (6X10)

93892-06010-00

$1.49

30

SCREW-WASHER (6X10) This part replaces 93892-06010-10.

93892-06010-00

$1.49

31

NUT, FLANGE (6MM)

94050-06000

$1.49
