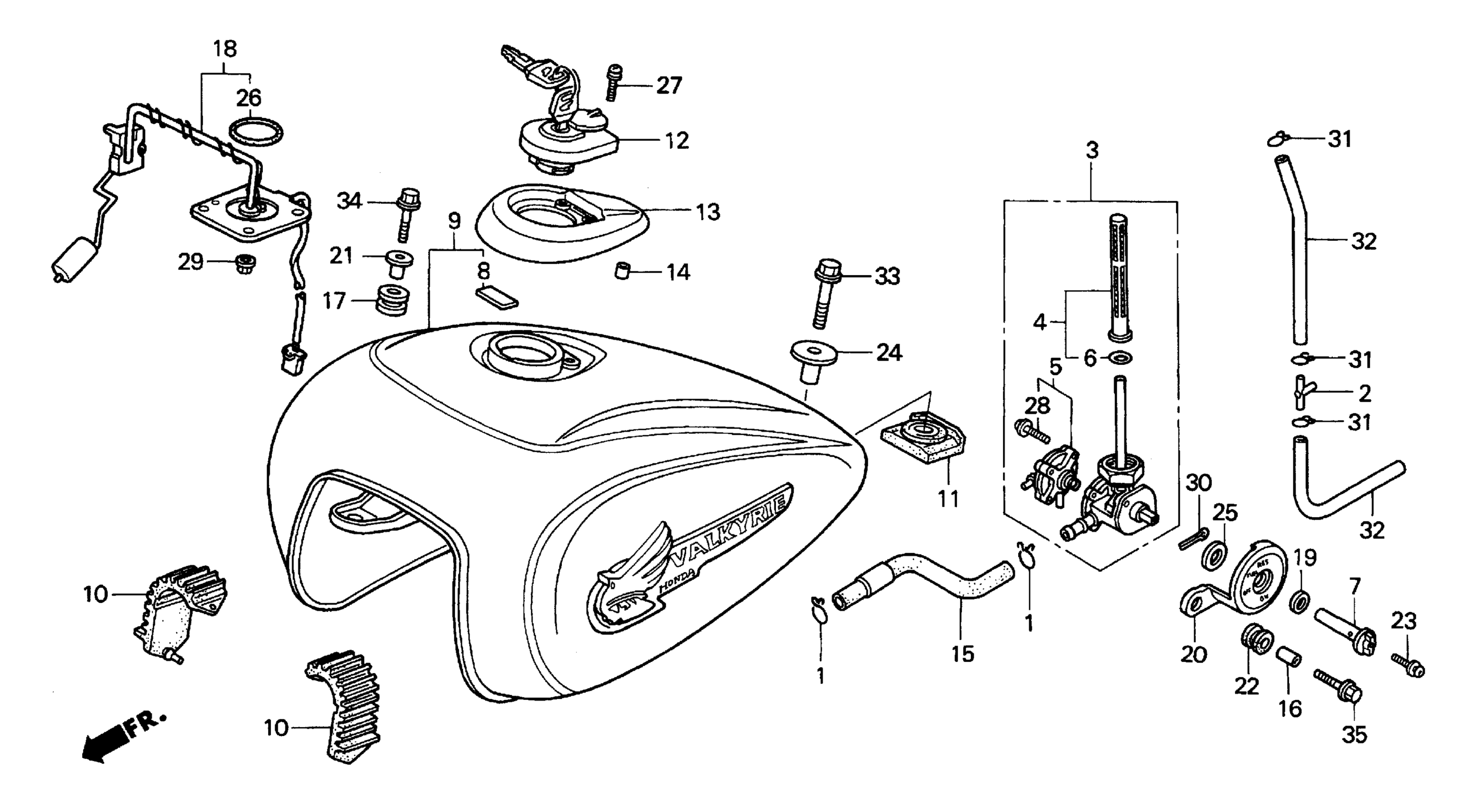

Honda GL1500CFAC (00) VALKYRIE INTERSTATE, USA, VIN# 1HFSC411-YA100001 FUEL TANK Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15707-634-000

$5.13

3

PETCOCK ASSY. This part replaces 16950-MBY-003.

16950-MBY-033

Unavailable

3

PETCOCK ASSY. This part replaces 16950-MBY-013.

16950-MBY-033

Unavailable

3

PETCOCK ASSY. This part replaces 16950-MBY-023.

16950-MBY-033

Unavailable

3

PETCOCK ASSY.

16950-MBY-033

Unavailable

4

SCREEN SET, FUEL STRAINER

16952-MBY-003

Unavailable

5

COVER SET, PETCOCK

16953-MBZ-B51

$52.66

5

COVER SET, PETCOCK This part replaces 16953-MV9-000.

16953-MBZ-B51

$52.66

6

O-RING

16958-KM9-005

$3.89

7

LEVER, PETCOCK

16963-MZ0-000

$31.50

8

FILM, PROTECTOR

17503-MY1-300

$3.44

9

TANK SET, FUEL *NH1* (BLACK) (NOT AVAILABLE) This part replaces 17520-MBY-000ZD.

17520-MBY-A00ZA

Unavailable

9

TANK SET, FUEL (TYPE2) (WL) (SOURCE: VINTAGE PARTS INC.) TANK SET, FUEL (TYPE4) (WL)

17520-MBY-000ZH

Unavailable

9

TANK SET, FUEL (TYPE4) (WL) (NOT AVAILABLE)

17520-MBY-660ZA

Unavailable

10

CUSHION, FUEL TANK

17611-MZ0-000

Unavailable

11

CUSHION, RR. FUEL TANK

17613-MM8-000

$39.01

12

CAP COMP,FUEL FILLER This part replaces 17620-MW3-681.

17620-MW3-682

$106.30

13

COVER, FUEL CAP

17621-MZ0-000

Unavailable

14

RUBBER, CAP COVER

17623-MZ0-000

Unavailable

15

TUBE, FUEL

17701-MZ0-000

$5.42

16

COLLAR, THROTTLE LEVER

17879-758-000

$2.52

17

RUBBER, RADIATOR MOUNTING

19051-GE2-000

$4.98

18

FUEL UNIT SET

37080-MBY-000

Unavailable

19

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

20

COVER, PETCOCK LEVER

50356-MZ0-000

Unavailable

21

COLLAR, SETTING

61104-422-000

$6.91

22

RUBBER, HEADLIGHT MOUNTING

61315-958-680

$3.38

23

SCREW-WASHER (5X25)

90020-KV3-000

$3.24

24

COLLAR, FUEL TANK SETTING

90324-MM8-680

Unavailable

25

WASHER, THRUST (17.2MM)

90403-KV3-830

Unavailable

26

O-RING (39.5X5)

91305-MC7-000

$3.31

27

SCREW-WASHER (4X16)

93892-04016-00

$1.49

28

SCREW-WASHER (4X16)

93892-04016-08

$1.49

28

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

29

NUT, FLANGE (6MM)

94050-06080

$1.49

30

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

30

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

30

PIN, SPLIT (2.5X30)

94201-25300

$1.49

33

BOLT, FLANGE (8X35)

95701-08035-07

$1.49

34

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

35

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
