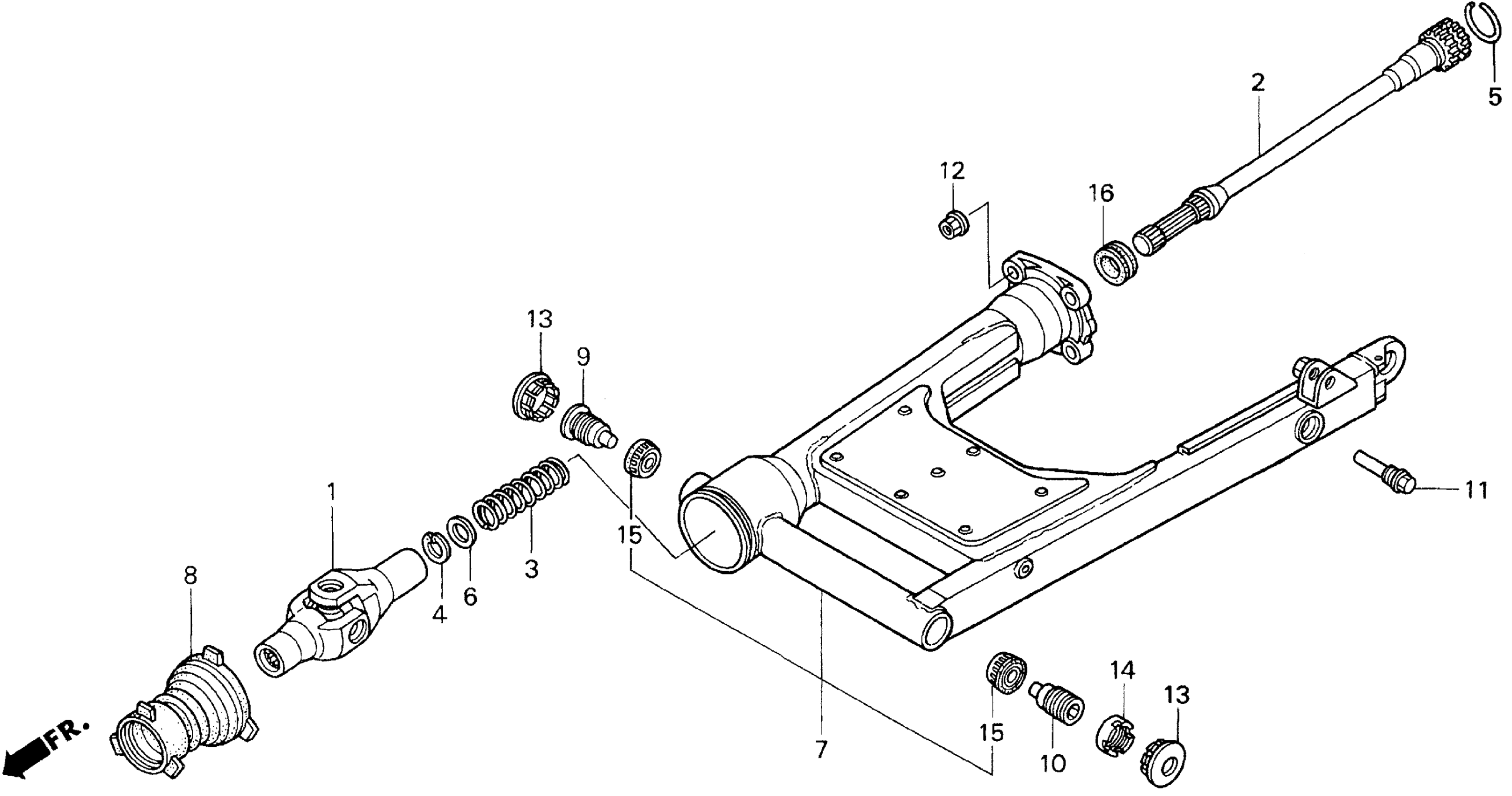

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 SWINGARM Diagram

JOINT, YOKE

40200-MZ0-A00

$209.27

SHAFT, PROPELLER

40201-MZ0-A00

$72.23

SPRING, PROPELLER SHAFT

40215-MN5-000

$6.30

CIRCLIP

40219-MG9-000

$4.06

RING, STOPPER

40221-MB0-000

$4.53

STOPPER, PROPELLER SHAFT SPRING

40222-MN5-000

$4.08

SWINGARM ASSY., RR. (NOT AVAILABLE) This part replaces 52100-MZ0-A40.

52100-MZ0-000

Unavailable

BOOT, JOINT

52104-MZ0-A40

Unavailable

BOLT, R. SWINGARM PIVOT (SOURCE: VINTAGE PARTS INC.)

90121-MAM-L40

Unavailable

BOLT, L. SWINGARM PIVOT

90122-MAM-L40

$25.64

BOLT, BRAKE STOPPER

90158-MZ0-000

$26.18

NUT, HEX. (10MM)

90308-357-000

$4.85

CAP, R. LOCK NUT

90312-MB0-700

$18.22

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

BEARING, TAPER ROLLER (17X40X13.25) (KOYO)

91066-HA7-672

$62.07

OIL SEAL (27X43X7)

91261-ME9-005

$12.13
