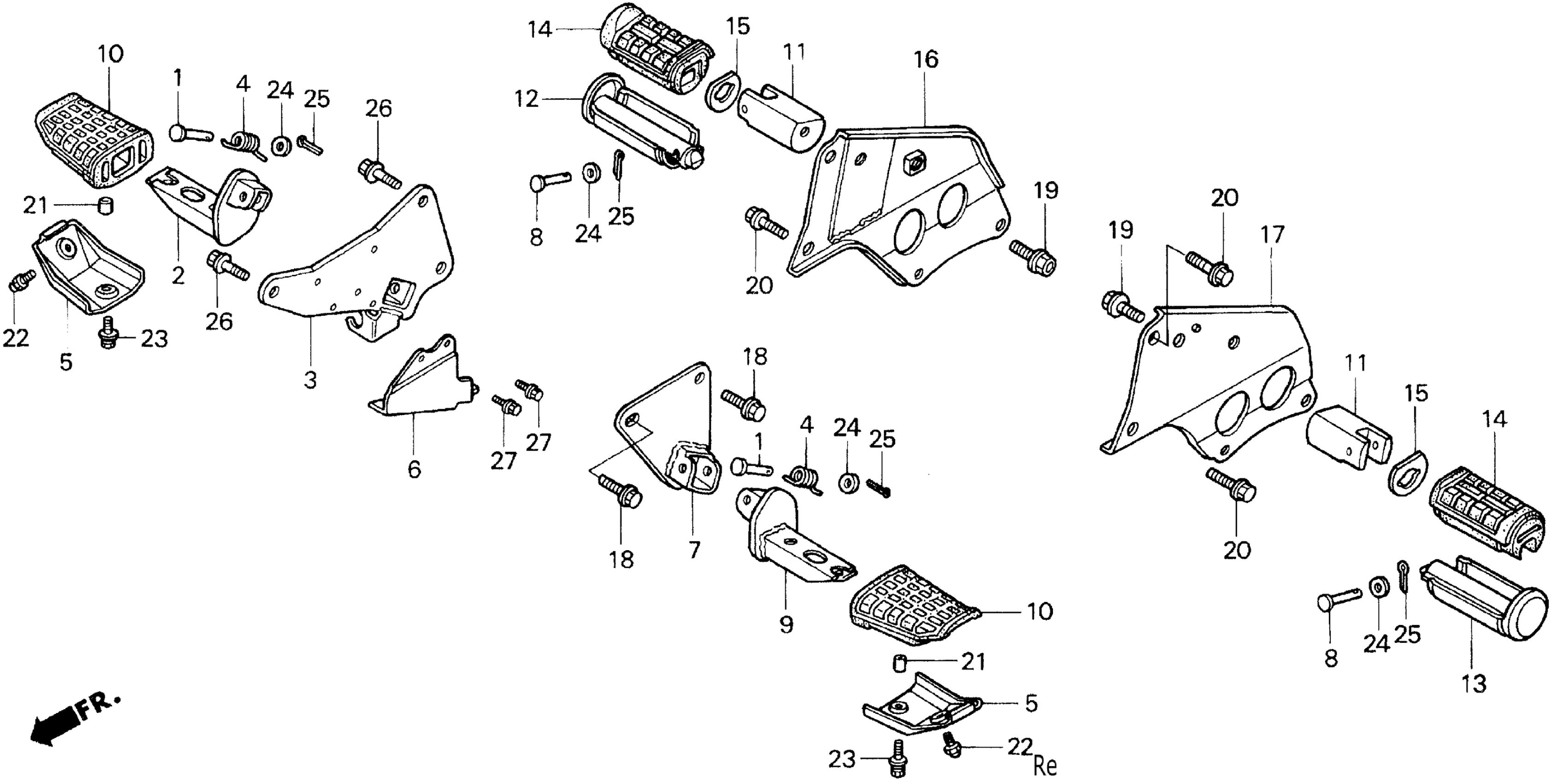

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT

50603-033-010

$3.30

2

BAR, R. STEP

50612-MZ0-000

Unavailable

3

BRACKET, R. STEP

50615-MZ0-000

Unavailable

4

SPRING, STEP RETURN

50617-MB1-700

$5.80

5

COVER, STEP (LOWER)

50619-MN5-000

$25.90

6

COVER, STOP SWITCH

50619-MZ0-000

Unavailable

7

BRACKET, L. STEP

50625-MZ0-000

Unavailable

8

PIN, STEP BAR

50639-ML0-010

$5.22

9

BAR, L. STEP

50642-MZ0-000

Unavailable

10

RUBBER, MAIN STEP

50661-MN5-000

$20.38

11

BRACKET, PILLION STEP (NOT AVAILABLE)

50680-MBY-000

Unavailable

12

BAR, R. PILLION STEP

50711-MM8-000

Unavailable

13

BAR, L. PILLION STEP

50712-MM8-000

Unavailable

14

RUBBER, PILLION STEP

50713-MK7-000

Unavailable

15

WASHER, PILLION STEP

50714-MK7-000

$5.05

16

HOLDER, R. PILLION STEP

50715-MZ0-000

Unavailable

17

HOLDER, L. PILLION STEP

50815-MZ0-000

$120.46

18

BOLT, SPECIAL FLANGE (8X22)

90100-438-850

$4.85

19

BOLT, FLANGE (10X20)

90102-MW0-000

$6.79

20

BOLT, SPECIAL FLANGE (10X16)

90109-KN8-730

$4.65

21

COLLAR, RR. SPLASH GUARD

90325-197-000

$3.41

22

BOLT, CAP (6X8)

92501-06008-0B

Unavailable

23

BOLT-WASHER (6X16)

93403-06016-00

$1.55

23

BOLT-WASHER (6X16) This part replaces 93413-06016-00.

93403-06016-00

$1.55

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

PIN, SPLIT (2.0X15)

94201-20150

$1.49

26

BOLT, FLANGE (8X18)

95701-08018-00

$1.80

27

BOLT, FLANGE (6X8)

96001-06008-00

$1.49
