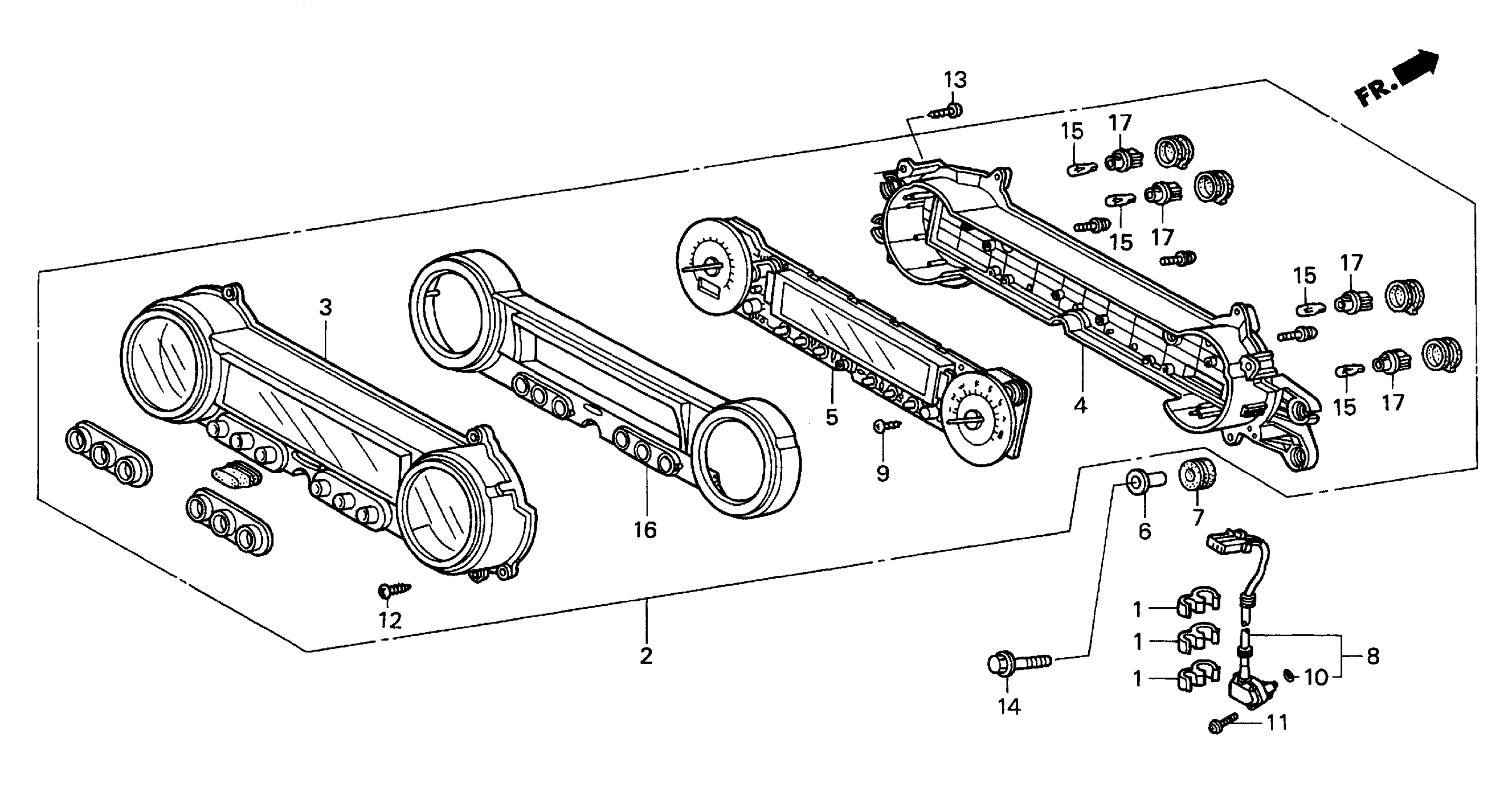

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 SPEEDOMETER Diagram

#

Description
Price

1

CLAMP, PIPE

11152-KS4-003

$7.13

2

METER ASSY., COMBINATION (MPH/KPH) (NOT AVAILABLE)

37100-MBY-671

Unavailable

3

CASE ASSY. (UPPER) (SOURCE: VINTAGE PARTS INC.)

37102-MBY-671

Unavailable

4

CASE ASSY. (LOWER) (SOURCE: VINTAGE PARTS INC.)

37103-MBY-671

Unavailable

5

METER ASSY., MULTI DISPLAY (NOT AVAILABLE)

37105-MBY-671

Unavailable

6

COLLAR, SPEEDOMETER MOUNTING This part replaces 37243-KB7-960.

37243-KV3-830

$6.15

6

COLLAR, SPEEDOMETER MOUNTING

37243-KV3-830

$6.15

7

RUBBER, METER MOUNTING

37244-MB2-008

$6.87

8

SENSOR ASSY., SPEEDOMETER

37700-MBY-008

Unavailable

9

SCREW, TAPPING (3X12)

90105-MT7-003

$1.49

10

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

10

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

10

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

11

SCREW-WASHER (5X20)

93891-05020-07

$1.49

12

SCREW, TAPPING (4X16)

93903-24420

$1.49

13

SCREW, TAPPING (4X12)

93903-34380

$2.18

14

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

15

BULB, WEDGE BASE (12V 1.7W)

34908-MG9-951

$2.33

16

PLATE ASSY., REFLECTING (SOURCE: VINTAGE PARTS INC.)

37101-MBY-671

$34.95

17

SOCKET (T6.5) (SOURCE: VINTAGE PARTS INC.)

37106-MBY-008

Unavailable
