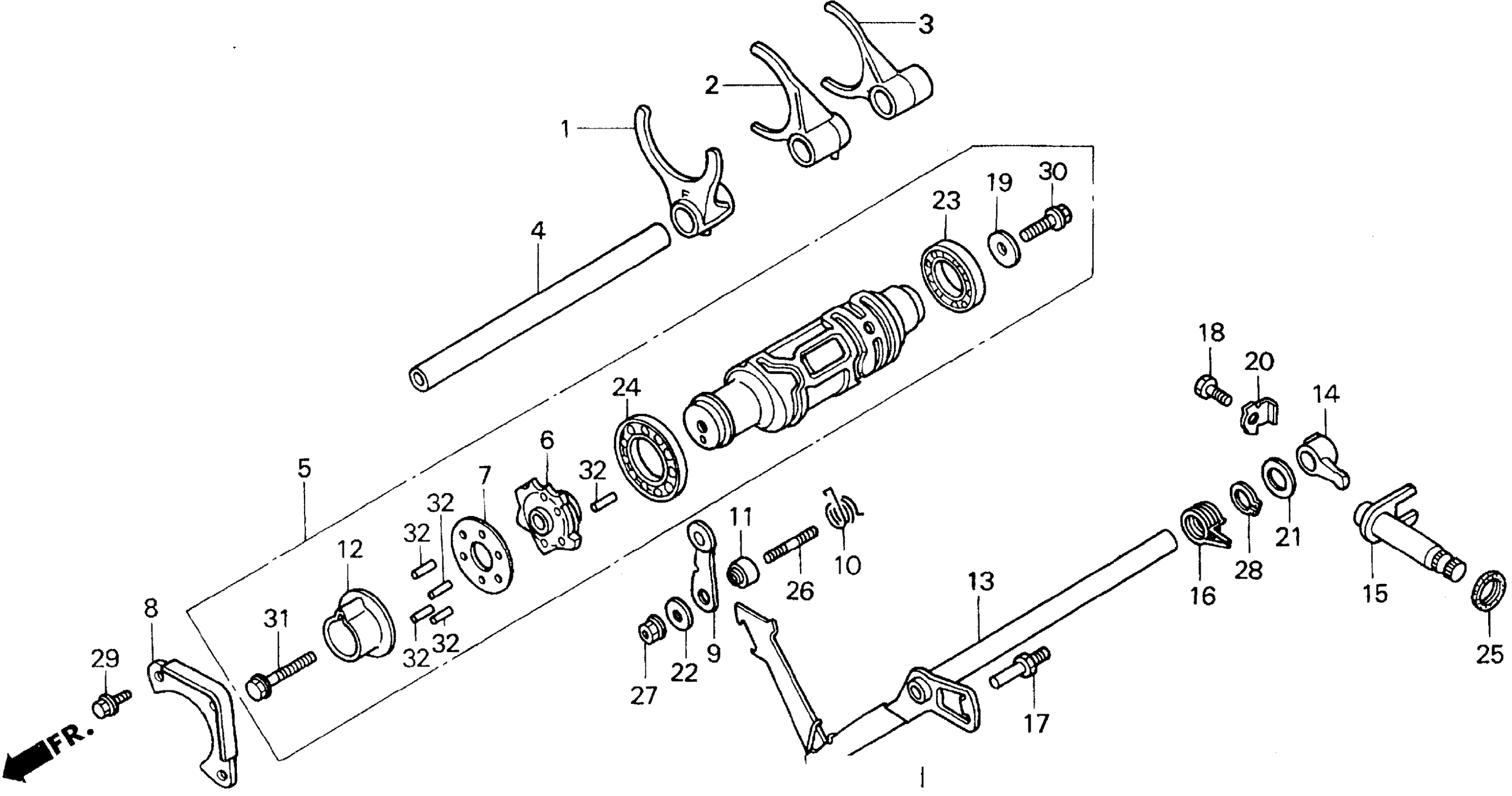

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, FR. GEARSHIFT

24211-MZ0-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-MN5-000

Unavailable

3

SWINGARM, GEARSHIFT

24213-MN5-000

Unavailable

4

SHAFT, SHIFT FORK

24251-MZ0-000

Unavailable

5

DRUM ASSY., GEARSHIFT

24300-MZ0-000

Unavailable

6

CAM, GEARSHIFT DRUM

24302-MN5-000

Unavailable

7

PLATE, GEARSHIFT ARM GUIDE

24303-MN5-000

Unavailable

8

PLATE, DRUM SETTING

24307-MN5-000

Unavailable

9

STOPPER, GEARSHIFT DRUM

24430-MN5-000

Unavailable

10

SPRING, DRUM STOPPER

24435-MZ0-000

Unavailable

11

COLLAR, GEARSHIFT DRUM STOPPER

24437-MN5-000

Unavailable

12

JOINT, SHIFT DRUM

24443-MN5-000

$64.39

13

ARM, GEARSHIFT

24610-MN5-000

Unavailable

14

ARM B, GEARSHIFT

24615-MN5-000

Unavailable

15

SPINDLE, GEARSHIFT

24620-MN5-000

Unavailable

16

SPRING, SHIFT RETURN

24651-MN5-000

Unavailable

17

PIN, SHIFT RETURN SPRING

24652-028-000

$9.72

18

BOLT, HEX. (8X17)

90009-MN5-000

$4.23

19

WASHER (6.5X26X2.6)

90401-MZ0-000

$4.03

20

WASHER, LOCK (8MM)

90406-422-000

$2.63

21

WASHER (14.2X28X2.3)

90487-MN5-000

$5.64

22

WASHER (6X2.3)

90488-MB0-000

$4.37

23

BEARING, RADIAL BALL (6904) (NTN)

91007-MN5-003

$14.93

24

BEARING, BALL (16005) (NTN)

91008-374-003

$15.03

25

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

26

BOLT, STUD (6X25)

92900-06025-0B

$1.73

27

NUT, FLANGE (6MM)

94050-06000

$1.49

28

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

29

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

30

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

31

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

32

ROLLER (4X14.8)

96220-40148

$1.49
