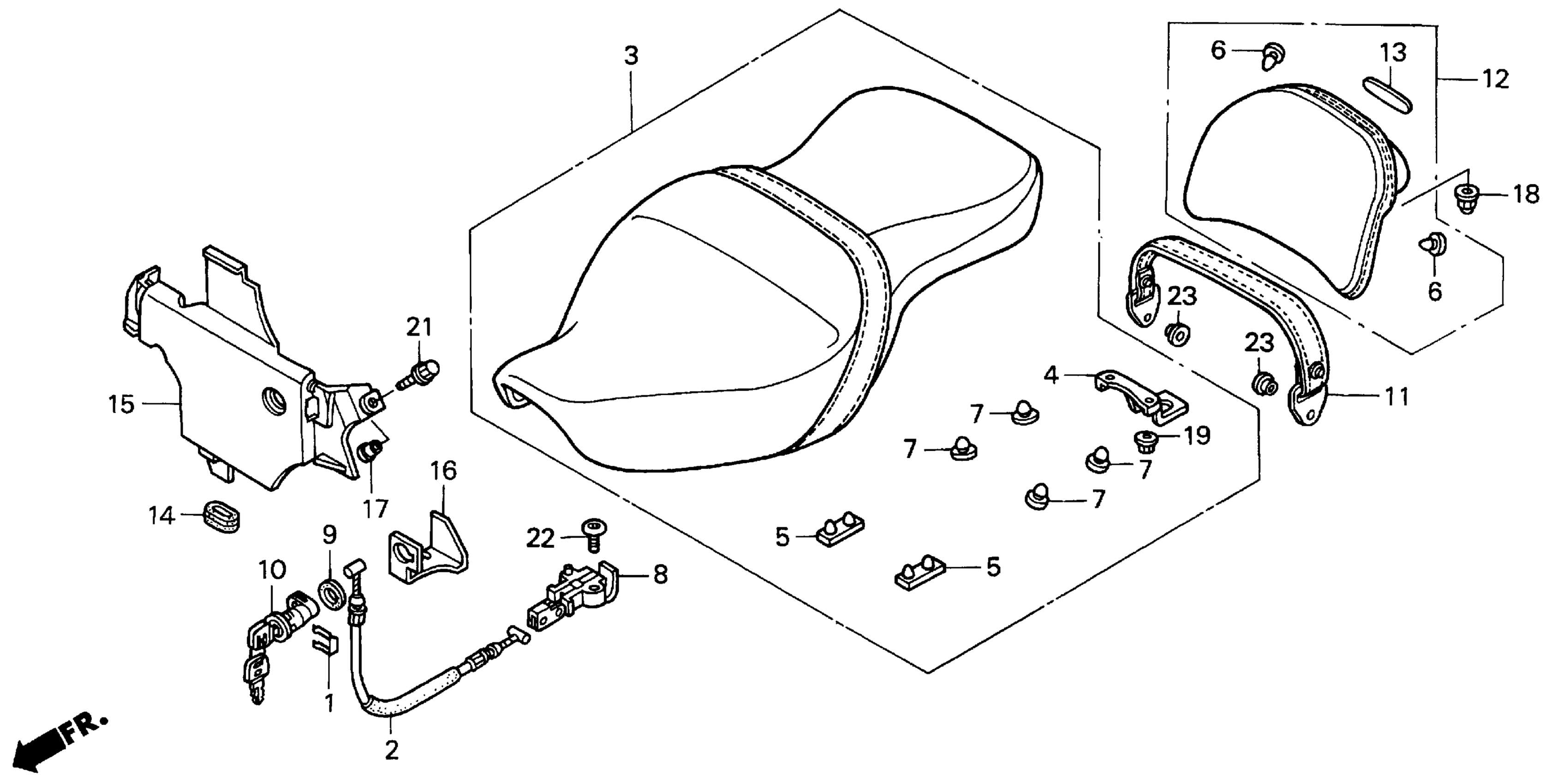

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 SEAT Diagram

#

Description
Price

1

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

2

CABLE, SEAT LOCK

77156-MZ0-000

Unavailable

3

SEAT ASSY., DOUBLE (SOURCE: VINTAGE PARTS INC.)

77200-MBY-000

Unavailable

4

STAY, SEAT (NOT AVAILABLE)

77201-MBY-000

Unavailable

5

RUBBER D, SEAT SETTING (SOURCE: VINTAGE PARTS INC.)

77206-KG1-000

Unavailable

6

RUBBER B, SEAT STOPPER

77215-GC2-000

$5.05

7

RUBBER, SEAT SETTING (SOURCE: VINTAGE PARTS INC.)

77215-KN8-000

Unavailable

8

HOOK, SEAT CATCH This part replaces 77220-KY6-000.

77220-KY6-010

$29.16

8

HOOK, SEAT CATCH

77220-KY6-010

$29.16

9

GASKET, SEAT LOCK KEY

77238-MZ0-000

$3.17

10

KEY, SEAT LOCK

77239-MZ0-000

Unavailable

11

SEAT BELT (SOURCE: VINTAGE PARTS INC.)

77310-MBY-000

Unavailable

12

SEAT, BACK

77400-MBY-000

Unavailable

13

EMBLEM, SEAT-BACK (SOURCE: VINTAGE PARTS INC.)

77405-MBY-300

Unavailable

14

GROMMET A, SIDE COVER

83601-MB0-000

$4.53

15

COVER, CENTER *NH1* (BLACK) COVER, CENTER *PB255P*

83700-MZ0-000ZC

$443.31

15

COVER, CENTER *R260P* (PEARL CHEYENNE RED) (SOURCE: VINTAGE PARTS INC.)

83700-MZ0-000ZL

Unavailable

16

STAY, SEAT LOCK

83701-MZ0-000

$24.34

17

COLLAR

84706-415-000

$2.23

18

NUT, SELF-LOCK CAP

90344-SF4-003

$7.54

19

NUT, FLANGE (6MM)

94050-06080

$1.49

21

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

22

BOLT, SPECIAL (6X17)

90085-MZ1-000

$3.67

23

COLLAR, RR. COWL SETTING

77223-MW3-670

$3.47
