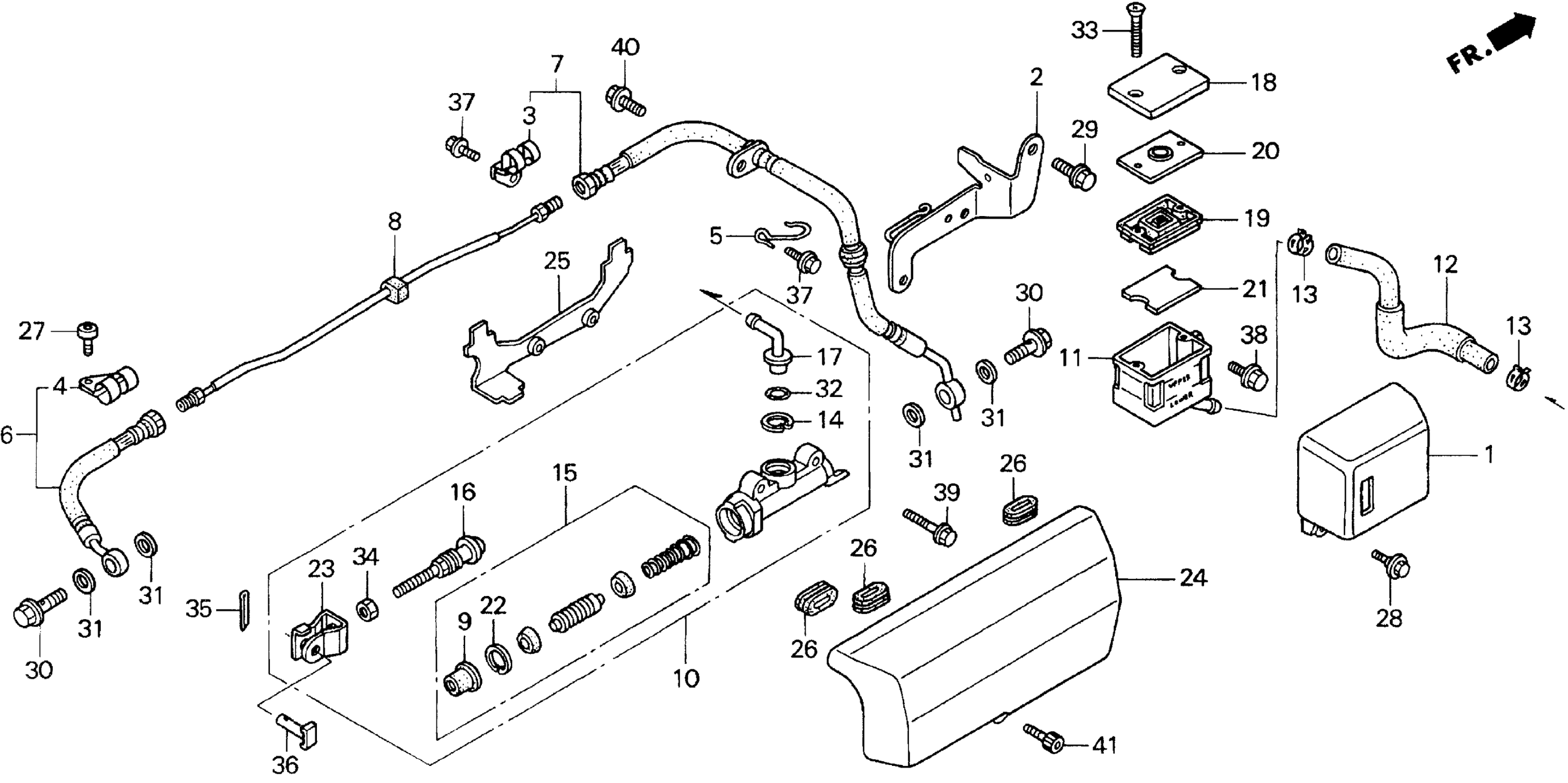

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

COVER, RR. BRAKE OIL CUP

21341-MZ0-A40

$27.97

2

BRACKET, RR. BRAKE OIL CUP

21342-MZ0-000

Unavailable

3

CLAMP A, RR. BRAKE HOSE

43156-MN5-000

Unavailable

4

CLAMP A, RR. BRAKE HOSE

43156-MZ0-000

Unavailable

5

CLAMP B, RR. BRAKE HOSE

43157-MZ0-A00

Unavailable

6

HOSE A, RR. BRAKE

43310-MZ0-A50

Unavailable

7

HOSE B, RR. BRAKE

43313-MZ0-A41

Unavailable

7

HOSE B, RR. BRAKE This part replaces 43313-MZ0-A50.

43313-MZ0-A41

Unavailable

8

PIPE A, RR. BRAKE

43314-MZ0-000

Unavailable

9

BOOT

43504-MB2-006

$9.01

9

BOOT This part replaces 43504-MZ0-760.

43504-MB2-006

$9.01

10

MASTER CYLINDER SUB-ASSY., RR.

43510-MZ0-006

$57.30

10

MASTER CYLINDER SUB-ASSY., RR. This part replaces 43510-MZ0-760.

43510-MZ0-006

$57.30

11

CUP, OIL

43511-KV3-831

$21.29

11

CUP, OIL This part replaces 43511-MZ0-760.

43511-KV3-831

$21.29

12

HOSE, RR. BRAKE MASTER CYLINDER

43512-MZ0-000

Unavailable

13

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

13

CLAMP, MASTER CYLINDER OIL HOSE This part replaces 43514-MZ0-760.

43514-KS6-701

$11.77

14

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.55

14

CIRCLIP, RR. MASTER CYLINDER This part replaces 43517-MZ0-760.

43517-KS6-701

$3.55

15

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$41.76

15

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$41.76

15

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MZ0-760.

43520-MB2-315

$41.76

16

ROD, PUSH

43530-MJ0-006

$18.94

16

ROD, PUSH This part replaces 43530-MZ0-760.

43530-MJ0-006

$18.94

17

CONNECTOR, MASTER CYLINDER

45503-KV3-006

$8.44

17

CONNECTOR, MASTER CYLINDER This part replaces 45503-MZ0-760.

45503-KV3-006

$8.44

18

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

18

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

18

CAP, MASTER CYLINDER (COO) This part replaces 45513-MZ0-760.

45513-HR0-305

$3.87

19

DIAPHRAGM This part replaces 45520-GW3-980.

45520-MG7-006

$9.52

19

DIAPHRAGM

45520-MG7-006

$9.52

20

PLATE, DIAPHRAGM This part replaces 45521-GW3-980.

45521-HA2-006

$9.75

20

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

21

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-HC4-841

Unavailable

21

FLOAT, FR. MASTER CYLINDER (NISSIN) This part replaces 45523-MZ0-760.

45523-HC4-841

Unavailable

22

CIRCLIP This part replaces 46182-MZ0-760.

46182-500-013

$4.46

22

CIRCLIP

46182-500-013

$4.46

23

JOINT, BRAKE ROD

46504-KV6-702

$7.30

23

JOINT, BRAKE ROD This part replaces 46504-MZ0-760.

46504-KV6-702

$7.30

24

COVER, RR. BRAKE MASTER CYLINDER

46550-MZ0-000

Unavailable

25

BRACKET, RR. MASTER CYLINDER COVER

46551-MZ0-A00

Unavailable

26

RUBBER, ENGINE SIDE COVER

83124-MN5-000

$2.85

27

BOLT, SOCKET (6X12)

90106-MZ0-000

$1.91

28

BOLT, FLANGE (6MM)

90113-KW3-000

Unavailable

29

BOLT, SPECIAL FLANGE (8X12)

90125-KR3-000

$3.62

30

BOLT, OIL (10X22)

90145-MS9-612

$6.82

31

WASHER, OIL BOLT

90545-300-000

$3.72

32

O-RING (14.8X2.4) This part replaces 91212-MZ0-760.

91212-422-006

Unavailable

32

O-RING (14.8X2.4)

91212-422-006

Unavailable

33

SCREW, FLAT (4X40)

93600-04040-1G

$0.43

34

NUT, HEX. (8MM)

94002-08000-0S

$1.19

35

PIN, SPLIT (2.0X15)

94201-20150

$0.94

36

PIN D, JOINT

95015-54000

$3.95

37

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

38

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

39

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

40

BOLT, FLANGE (8X16)

95701-08016-07

$1.59

41

BOLT, SOCKET (6X10) (SOURCE: VINTAGE PARTS INC.)

96700-06010-00

Unavailable
