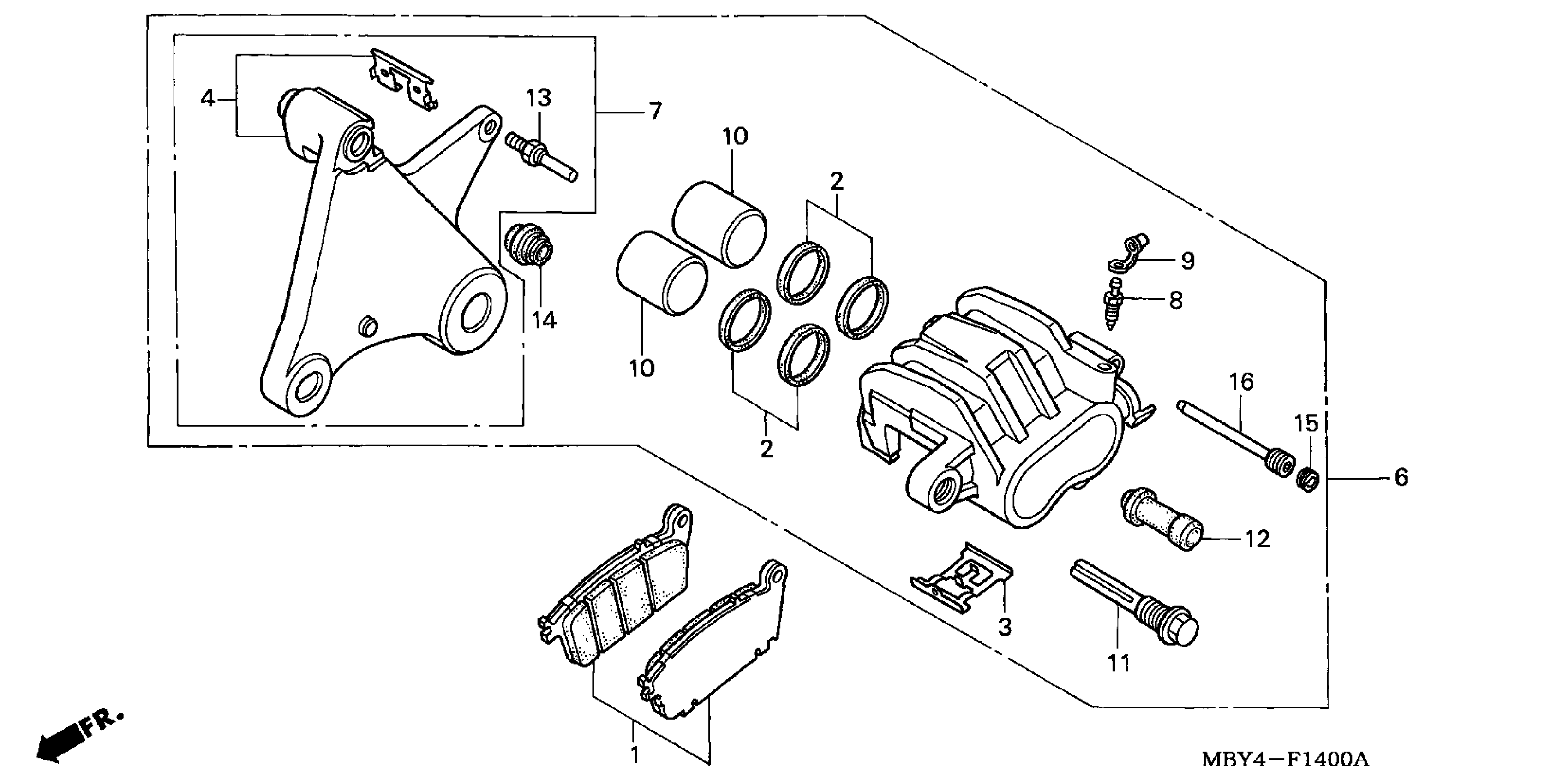

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR.

06435-MBY-671

$23.56

1

PAD SET, RR. This part replaces 06435-MBY-750.

06435-MBY-671

$23.56

2

SEAL SET, PISTON

06451-GE2-405

$11.41

2

SEAL SET, PISTON This part replaces 06451-MBY-750.

06451-GE2-405

$11.41

3

SPRING, PAD

43108-MT3-006

$9.76

3

SPRING, PAD This part replaces 43108-MZ0-760.

43108-MT3-006

$9.76

4

BRACKET, RR. This part replaces 43110-MZ0-760.

43110-MZ0-006

Unavailable

6

CALIPER SUB-ASSY., RR. BRAKE (NA USE ALT:43190-MBY-671)

43150-MBY-750

Unavailable

7

BRACKET SUB-ASSY., RR. CALIPER (NA USE ALT:43190-MBY-671)

43190-MBY-750

Unavailable

8

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

8

SCREW, BLEEDER (NISSIN) This part replaces 43352-MZ0-760.

43352-HC5-971

$4.22

9

CAP, BLEEDER

43353-KBP-930

$1.49

10

PISTON This part replaces 45107-KCW-880.

45107-MN5-006

$37.88

10

PISTON

45107-MN5-006

$37.88

11

BOLT, PIN

45131-MA3-006

$17.59

11

BOLT, PIN This part replaces 45131-MZ0-760.

45131-MA3-006

$17.59

12

BOOT, PIN BUSH (NISSIN) This part replaces 45132-GW3-980.

45132-166-016

$5.46

12

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

13

BOLT, PIN

45131-166-016

$7.63

13

BOLT, PIN

45137-GW3-980

Unavailable

14

BOOT B

45133-MA3-006

$5.46

14

BOOT B This part replaces 45139-GW3-980.

45133-MA3-006

$5.46

15

PLUG, PIN This part replaces 45203-GW3-980.

45203-MG3-016

$5.12

15

PLUG, PIN

45203-MG3-016

$5.12

16

PIN, HANGER

45215-HE0-016

$10.48

16

PIN, HANGER This part replaces 45215-MZ0-890.

45215-HE0-016

$10.48
