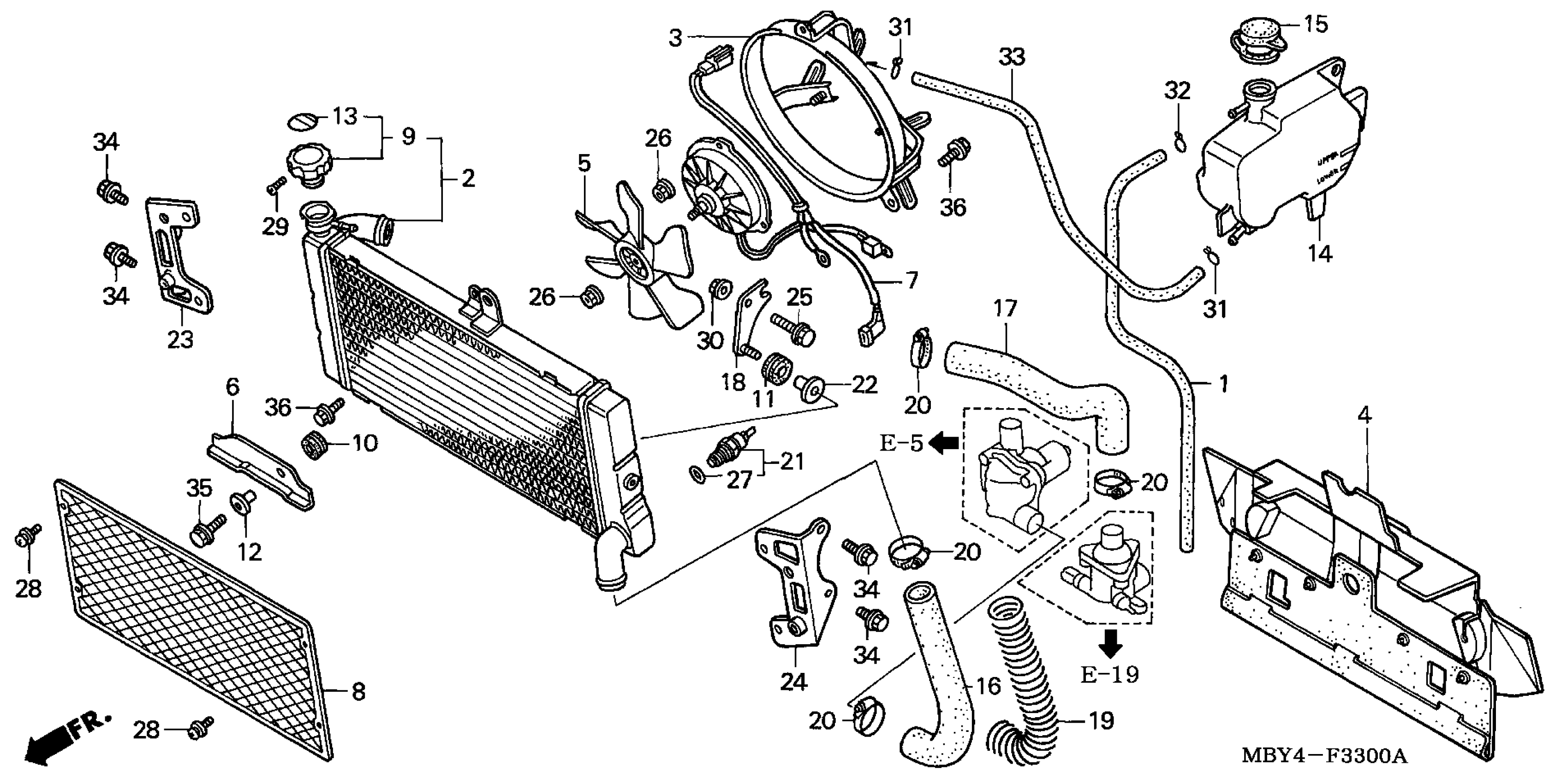

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 RADIATOR Diagram

#

Description
Price

1

BULK HOSE, VACUUM (5X3000) (5X650)

95005-50003-30M

$18.72

2

RADIATOR (TOYO) (NOT AVAILABLE)

19010-MBY-003

Unavailable

3

SHROUD (NOT AVAILABLE)

19015-MBY-003

Unavailable

4

PLATE, AIR GUIDE (SOURCE: VINTAGE PARTS INC.)

19020-MBY-000

Unavailable

5

FAN, COOLING (TEC)

19020-MM5-003

Unavailable

6

PLATE, AIR GUIDE (UPPER)

19021-MZ0-000

Unavailable

7

MOTOR ASSY., FAN (NOT AVAILABLE)

19030-MBY-003

Unavailable

8

GRILLE, RADIATOR

19032-MZ0-000

Unavailable

9

CAP, RADIATOR

19045-MY3-621

$36.33

9

CAP, RADIATOR This part replaces 19045-MY3-671.

19045-MY3-621

$36.33

10

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

11

RUBBER, RADIATOR MOUNTING

19051-KA4-700

$3.10

12

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.26

12

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

13

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$8.28

13

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$8.28

14

TANK, RADIATOR RESERVE

19101-MZ0-000

Unavailable

15

CAP, RESERVE TANK

19104-MB0-700

$10.92

16

HOSE, RADIATOR (LOWER)

19115-MZ0-000

Unavailable

17

HOSE, RADIATOR (UPPER)

19116-MZ0-000

Unavailable

18

STAY, RADIATOR

19120-MZ0-000

Unavailable

19

PROTECTOR, RADIATOR HOSE

19123-MBY-000

Unavailable

20

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.19

21

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$64.56

22

COLLAR, CHAIN CASE TAIL

40521-437-000

$4.70

23

STAY A, R. RADIATOR COVER (SOURCE: VINTAGE PARTS INC.)

64255-MBY-000

$63.38

24

STAY A, L. RADIATOR COVER (SOURCE: VINTAGE PARTS INC.)

64355-MBY-000

Unavailable

25

BOLT, FLANGE (10X50)

90102-MZ0-000

Unavailable

26

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

27

O-RING (13.5X1.4)

91307-PH7-660

$2.78

27

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.78

28

SCREW-WASHER (4X10)

93891-04010-07

Unavailable

29

SCREW, TAPPING (3X8)

93901-22180

$0.83

30

NUT, FLANGE (10MM)

90303-428-900

$3.12

30

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.12

31

CLIP, TUBE (B10)

95002-02100

$1.72

32

CLIP, TUBE (C9)

95002-50000

$1.14

33

TUBE, RADIATOR

17309-MZ0-000

Unavailable

34

BOLT, FLANGE (6X10)

95701-06010-07

$1.48

35

BOLT, FLANGE (6X22)

95701-06022-07

$0.86

36

BOLT, FLANGE (6X10)

96001-06010-00

$1.48
