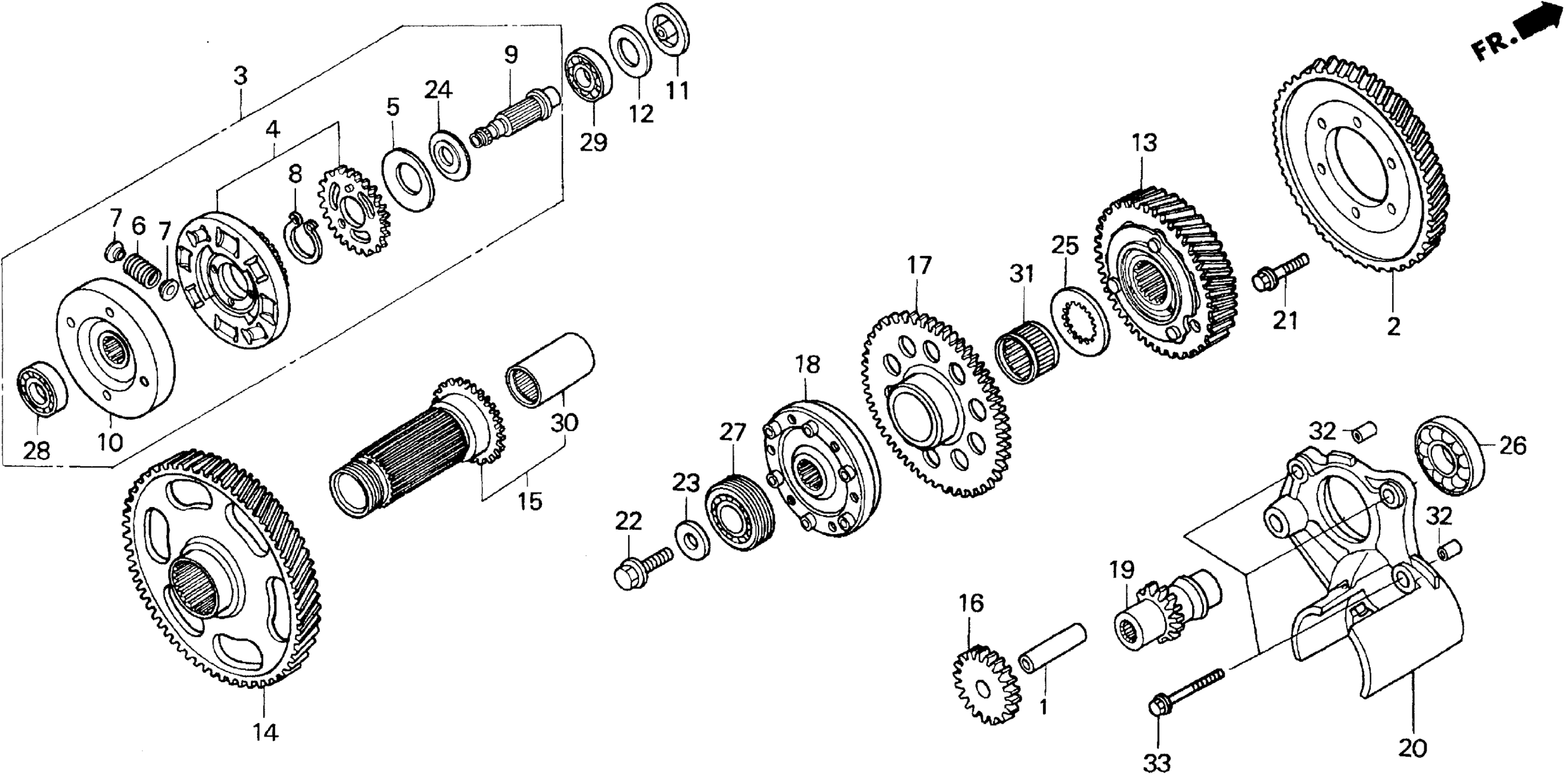

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 PRIMARY DRIVE GEAR Diagram

#

Description
Price

1

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$8.57

1

PIN, PISTON

13111-GS7-000

$8.57

1

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$8.57

2

GEAR, ALTERNATOR DRIVE (96T)

13321-MZ0-000

Unavailable

3

GEAR ASSY., ALTERNATOR DRIVEN

13430-MZ0-000

Unavailable

4

GEAR SET, ALTERNATOR DRIVEN

13434-MZ0-305

Unavailable

5

SPRING, ALTERNATOR FRICTION

13435-MZ0-300

$7.57

6

SPRING, ALTERNATOR DAMPER

13436-MN5-004

$2.57

7

SEAT, DAMPER SPRING

13438-MN5-310

$2.57

8

SPRING, ALTERNATOR DRIVEN GEAR

13439-MZ0-300

Unavailable

9

SHAFT, ALTERNATOR DRIVEN

13452-MN5-310

Unavailable

10

FLYWHEEL, ALTERNATOR (B)

13456-MN5-320

Unavailable

11

PLATE, ALTERNATOR SHAFT OIL PASSAGE

13459-MT8-000

$9.43

12

SPRING, THRUST

13538-MT8-000

Unavailable

13

GEAR, PRIMARY DRIVE (49T)

23110-MN5-010

$254.96

14

GEAR, PRIMARY DRIVEN (78T)

23121-MN5-000

Unavailable

15

BOSS, PRIMARY DRIVEN GEAR

23130-MN5-000

Unavailable

16

GEAR, STARTER IDLE (19T)

28106-MN5-010

$30.20

17

GEAR, STARTER DRIVEN (66T)

28110-MN5-000

$166.48

18

CLUTCH OUTER, STARTING

28125-MN5-014

$262.64

19

GEAR, STARTER DRIVE (15T)

28141-MN5-000

Unavailable

20

HOLDER, STARTER DRIVE GEAR

28151-MN5-300

Unavailable

21

BOLT, UBS (8X20)

90004-MN5-000

$3.84

22

BOLT, FLANGE (12X30)

90005-MN5-000

$7.65

23

WASHER (12X33X4)

90402-MN5-000

Unavailable

24

WASHER (19.7X40X2.6)

90413-MN5-000

$12.74

25

WASHER, SPLINE (28MM)

90493-MN5-000

$19.97

26

BEARING, RADIAL BALL (6904) (NTN)

91007-MN5-003

$14.42

27

BEARING, RADIAL BALL (6205)

91009-MN5-003

Unavailable

28

BEARING, RADIAL BALL (6003) (TOYO)

91015-MN5-003

Unavailable

29

BEARING, RADIAL BALL (6003U) (TOYO)

91016-MN5-003

Unavailable

30

BEARING, NEEDLE (28X35X60)

91024-MN5-003

$45.20

31

BEARING, NEEDLE (36X41X18.3)

91027-PC9-E01

Unavailable

32

PIN, DOWEL (8X14)

94301-08140

$2.04

33

BOLT, FLANGE (6X32)

95701-06032-08

$1.71
