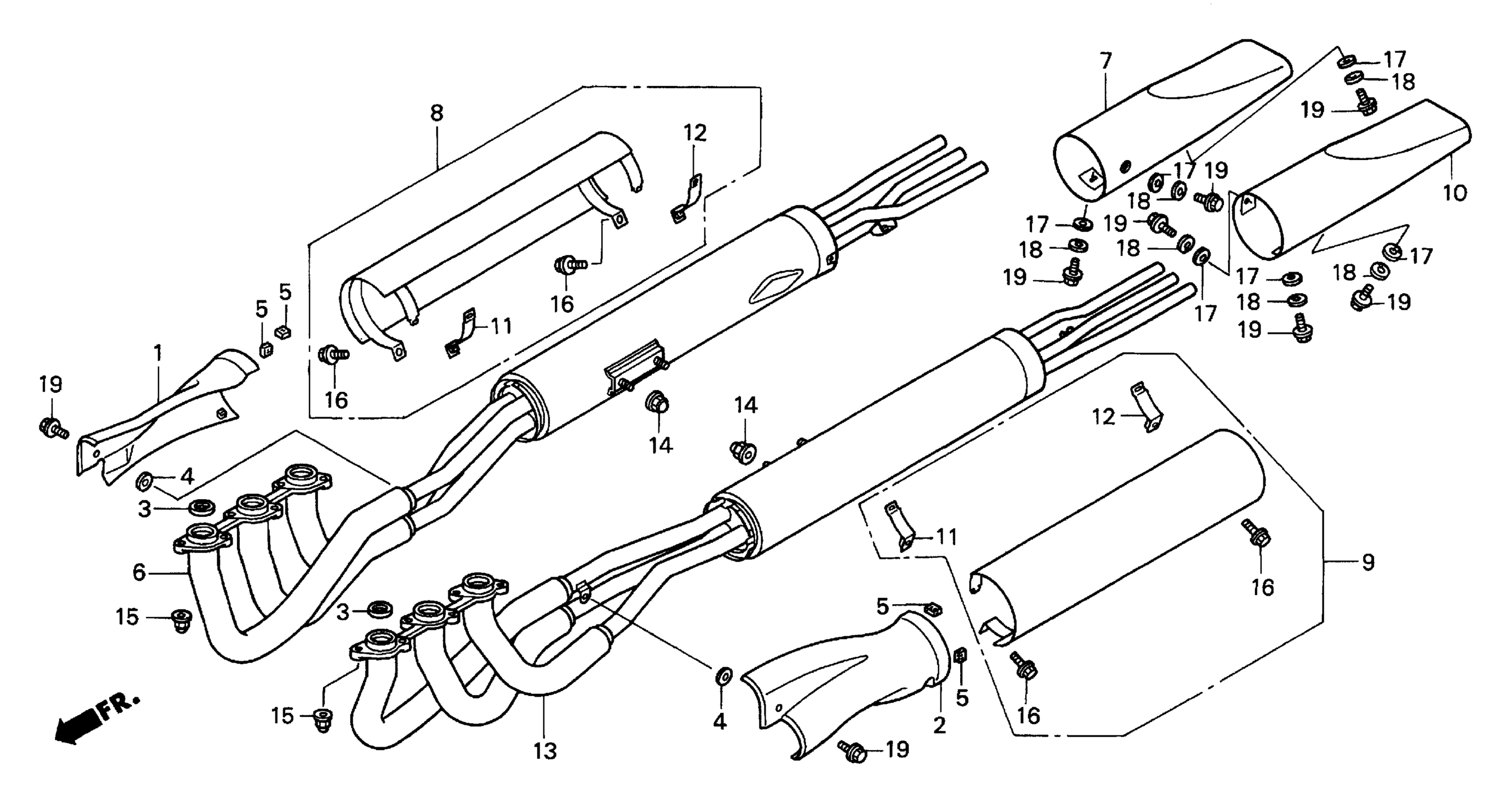

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 MUFFLER Diagram

#

Description
Price

1

COVER, R. EX. PIPE

18160-MZ0-003

Unavailable

2

COVER, L. EX. PIPE

18260-MZ0-003

Unavailable

3

GASKET, EX. PIPE

18291-MN5-650

$3.77

4

GASKET, PROTECTOR

18292-KBR-000

$3.45

5

RUBBER, PROTECTOR

18293-MN0-000

$2.13

6

MUFFLER, R. EX. (NOT AVAILABLE)

18300-MBY-003

Unavailable

7

TAILPIECE, R. (SOURCE: VINTAGE PARTS INC.)

18316-MBY-003

Unavailable

8

COVER SET, R. MUFFLER

18317-MZ0-003

Unavailable

9

COVER SET, L. MUFFLER

18318-MZ0-003

Unavailable

10

TAILPIECE, L. (SOURCE: VINTAGE PARTS INC.)

18336-MBY-003

Unavailable

11

BAND, FR. MUFFLER COVER

18376-MZ0-013

Unavailable

12

BAND, RR. MUFFLER COVER

18377-MZ0-013

Unavailable

13

MUFFLER, L. EX. (NOT AVAILABLE)

18400-MBY-003

Unavailable

14

NUT, CAP (8MM)

90208-438-000

$2.98

15

NUT, CAP (6MM)

90304-438-000

$7.14

16

BOLT-WASHER (6X16)

93404-06016-08

$1.55

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
