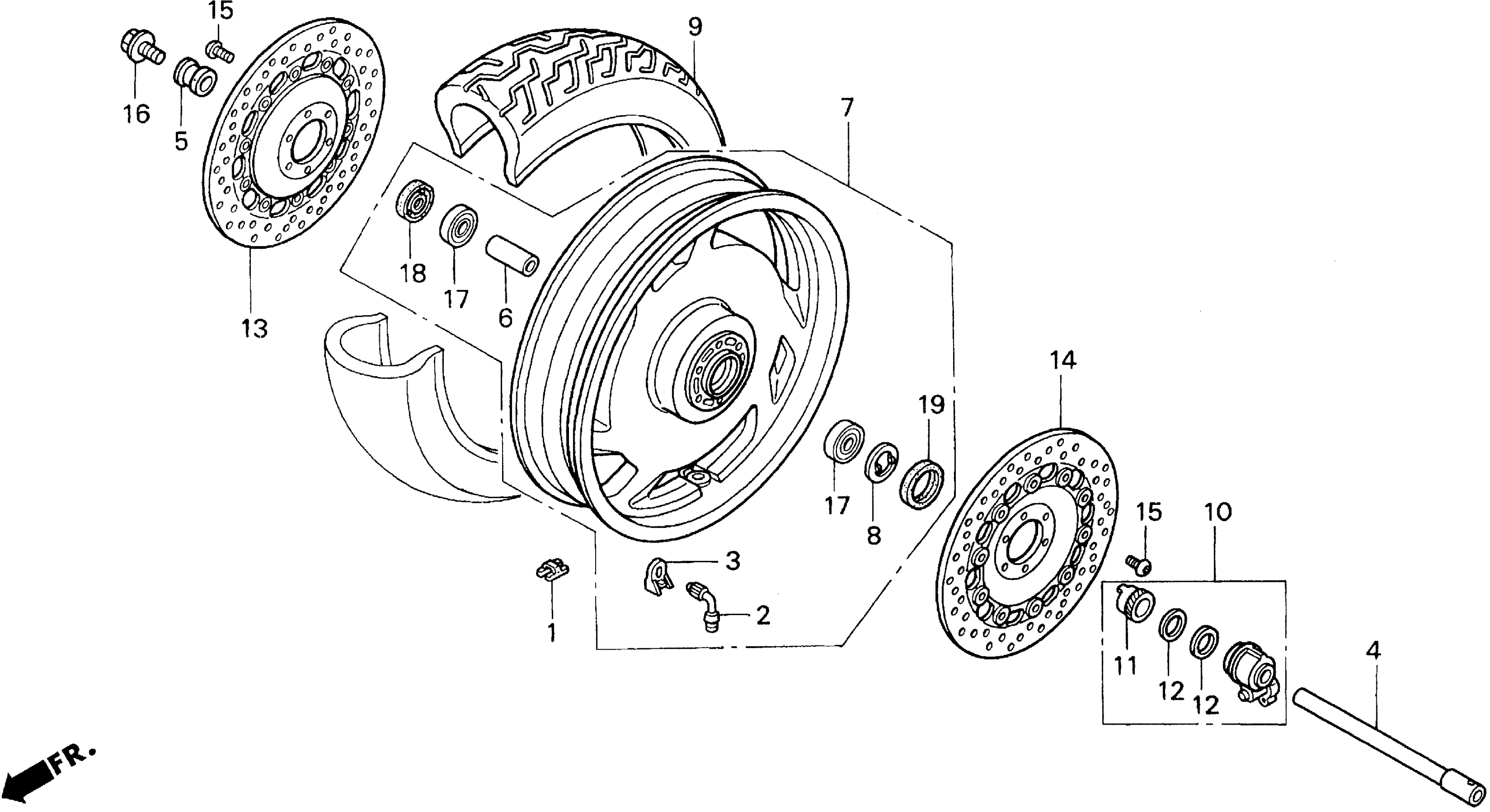

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

1

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

1

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

1

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

1

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

2

VALVE, RIM (DUNLOP)

42753-MN5-004

$16.38

3

HOLDER, RIM VALVE

42754-MN5-000

$5.12

4

AXLE, FR. WHEEL

44301-MZ0-A40

Unavailable

5

COLLAR, FR. WHEEL SIDE

44311-MM8-000

$19.15

6

COLLAR, FR. AXLE DISTANCE (27X119)

44620-MZ0-010

$15.66

7

WHEEL SUB-ASSY., FR. This part replaces 44650-MZ0-672.

44650-MZ0-674

Unavailable

7

WHEEL SUB-ASSY., FR. This part replaces 44650-MZ0-673.

44650-MZ0-674

Unavailable

7

WHEEL SUB-ASSY., FR.

44650-MZ0-674

Unavailable

8

RETAINER, GEAR BOX

44680-ML7-000

$5.08

9

TIRE, FR. (150/80R17) (72H) (DUNLOP) (NOT AVAILABLE)

44711-MZ0-A01

Unavailable

10

BOX ASSY., SPEEDOMETER GEAR

44800-MR1-003

$111.47

11

GEAR, SPEEDOMETER

44806-MR1-003

$31.09

12

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$2.99

13

DISK, R. FR. BRAKE

45120-MZ0-003

$268.84

14

DISK, L. FR. BRAKE

45220-MZ0-003

$268.84

15

BOLT, DISK (6X17)

90106-MBB-000

$3.65

16

BOLT, FR. AXLE

90305-ML7-000

$10.50

17

BEARING, RADIAL BALL (6204)

91052-MBR-003

$18.89

18

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.98

18

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

19

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.66
